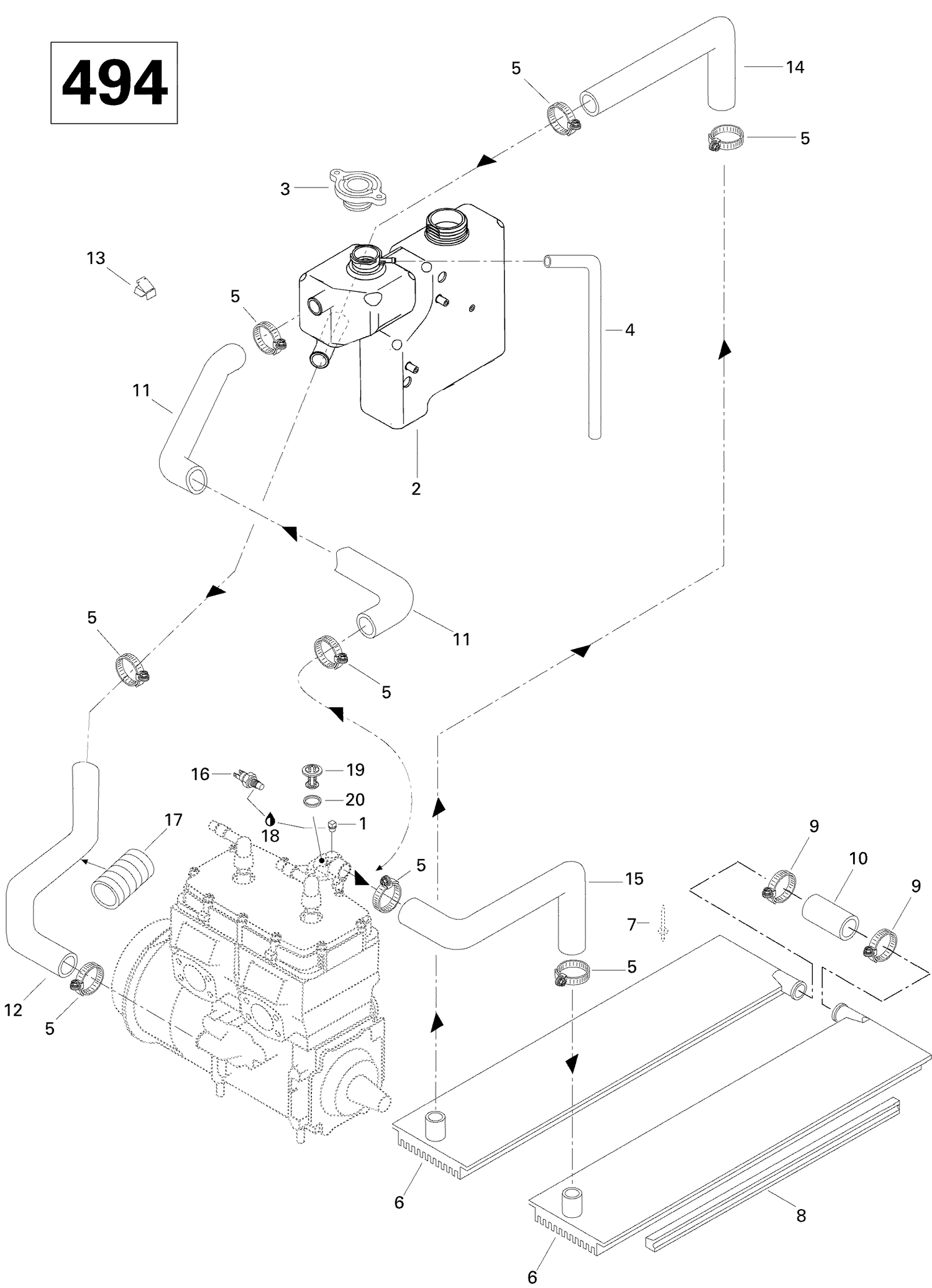

01- Cooling System (500)
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414184400 | Plug |
| 2 | 572076900 | Coolant Tank |
| 3 | 509000187 | Pressure Cap This part replaces 414684700. |
| 4 | 219704410 | Polyurethane Hose 10000Mm Long |
| 5 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 6 | 517280600 | RH Radiator |
| 6 | 517280601 | LH Radiator |
| 7 | Not | Available As Spare Part - Rivet |
| 8 | 517258800 | Radiator Protector |
| 9 | 408803400 | Clamp Tridon |
| 10 | 414795800 | Radiator Hose |
| 11 | 414972900 | Engine Outlet Hose |
| 12 | 415010300 | Engine Inlet Hose |
| 13 | 414227300 | Clip |
| 14 | 414973000 | Radiator Outlet Hose |
| 15 | 415028000 | Radiator Inlet Hose |
| 16 | 512047000 | Temperature Sensor |
| 17 | 414991800 | TUBING - Call your local BRP dealership |
| 18 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 19 | 420922519 | Thermostat This part replaces 414834100. |
