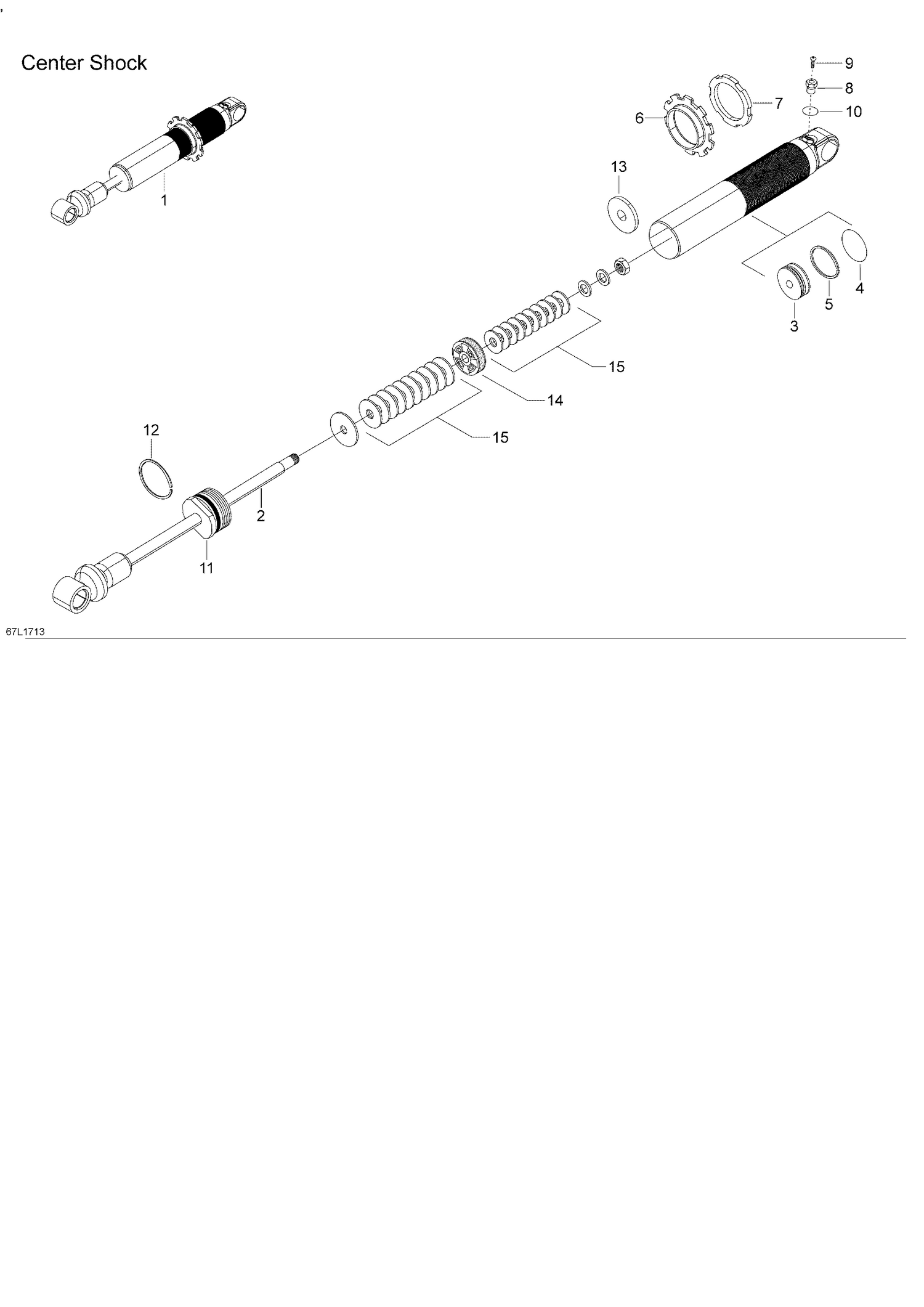

08- Take Apart Shock, Central

08- Take Apart Shock, Central

Parts (78)

RefPart NumberDescription
1 503193287 Shock
2 Not Available As Spare Part - Rod Ass'y
3 Not Available As Spare Part - Floating Piston
4 414888312 O-Ring
5 503189308 Piston Ring
6 414888316 SPRING COLLAR - Call your local BRP dealership
7 Not Available As Spare Part - Nut
8 505070398 Air Valve
9 505070399 Screw
10 505070400 O-Ring
11 Not Available As Spare Part - Seal Carrier Ass´y
12 Not Available As Spare Part - Stop Ring
13 Not Available As Spare Part - Dust Seal Ass' y
14 415128848 Piston 36 mm, 1 x 0,3 Slits
14 619300071 Piston 36 mm, 3 x 0,3 Slits
14 619300108 Piston 36 mm, 0 x 0,3 Slits
14 619300109 Piston 36 mm, 4 x 0,3 Slits
14 619300110 Piston 36 mm, 6 x 0,3 Slits
14 619300111 Piston 36 mm, 5 x 0,3 Slits
14 619300161 Piston 36 mm, 2 x 0,3 slits
15 230016 Shim 36 mm, 18 x 0,254
15 230017 Shim 36 mm, 20 x 0,254
15 230018 Shim 36 mm, 22 x 0,114
15 230019 Shim 36 mm, 22 x 0,254
15 230021 Shim 36 mm, 24 x 0,114
15 230022 Shim 36 mm, 24 x 0,152
15 230023 Shim 36 mm, 24 x 0,203
15 230024 Shim 36 mm, 26 x 0,114
15 230025 Shim 36 mm, 28 x 0,114
15 230026 Shim 36 mm, 28 x 0,254
15 619300058 Shim 36 mm, 17 x 0,254
15 619300068 Shim 36 mm, 18 x 0,114
15 619300075 Shim 36 mm, 12 x 0,152
15 619300076 Shim 36 mm, 13 x 0,114
15 619300077 Shim 36 mm, 13 x 0,152
15 619300078 Shim 36 mm, 13 x 0,203
15 619300079 Shim 36 mm, 13 x 0,254
15 619300080 Shim 36 mm, 14 x 0,114
15 619300081 Shim 36 mm, 14 x 0,152
15 619300082 Shim 36 mm, 14 x 0,203
15 619300083 Shim 36 mm. 14 X 0,254
15 619300084 Shim 36 mm, 16 x 0,114
15 619300085 Shim 36 mm, 17 x 0,114
15 619300086 Shim 36 mm, 17 x 0,152
15 619300087 Shim 36 mm, 17 x 0,203
15 619300088 Shim 36 mm, 19 x 0,114
15 619300089 Shim 36 mm, 19 x 0,152
15 619300090 Shim 36 mm, 19 x 0,203
15 619300091 Shim 36 mm, 19 x 0,254
15 619300092 Shim 36 mm, 21 x 0,152
15 619300093 Shim 36 mm, 21 x 0,203
15 619300094 Shim 36 mm, 21 x 0,254
15 619300095 Shim 36 mm, 24 x 0,254
15 619300096 Shim 36 mm, 28 x 0,152
15 619300098 Shim 36 mm, 22 x 0,203
15 619300099 Shim 36 mm, 26 x 0,254
15 619300102 Shim 36 mm, 28 x 0,203
15 619300104 Shim 36 mm, 30 x 0,152
15 619300114 Shim 36 mm, 16 x 0,152
15 619300115 Shim 36 mm, 15 x 0,152
15 619300116 Shim 36 mm, 16 x 0,254
15 619300117 Shim 36 mm, 12 x 0,203
15 619300118 Shim 36 mm, 15 x 0,254
15 619300119 Shim 36 mm, 16 x 0,203
15 619300120 Shim 36 mm, 12 x 0,254
15 619300121 Shim 36 mm, 15 x 0,114
15 619300122 Shim 36 mm, 15 x 0,203
15 619300123 Shim 36 mm, 18 x 0,152
15 619300124 Shim 36 mm, 18 x 0,203
15 619300125 Shim 36 mm, 20 x 0,114
15 619300126 Shim 36 mm, 20 x 0,152
15 619300127 Shim 36 mm, 20 x 0,203
15 619300128 Shim 36 mm, 21 x 0,114
15 619300129 Shim 36 mm, 22 x 0,152
15 619300130 Shim 36 mm, 26 x 0,152
15 619300131 Shim 36 mm, 26 x 0,203
15 619300132 Shim 36 mm, 30 x 0,203
15 619300162 Shim 36 mm, 12 x 0,114
