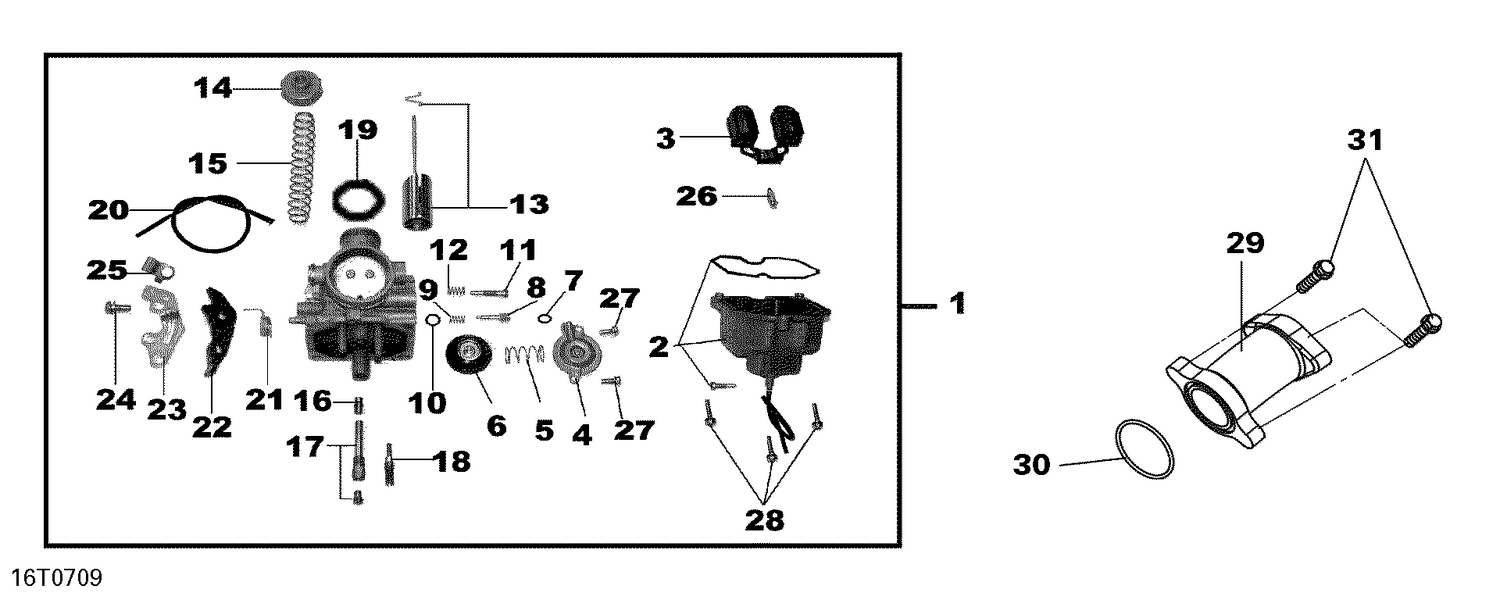

02- Carburetor
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S16100RCA000 | CARBURETOR ASS'Y - Call your local BRP dealership |
| 2 | NASP/NDPR | Not Available As Spare Parts |
| 3 | NASP/NDPR | Not Available As Spare Parts |
| 4 | NASP/NDPR | Not Available As Spare Parts |
| 5 | NASP/NDPR | Not Available As Spare Parts |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | S16075KG89010M1 | O-Ring |
| 8 | S1014240H9900 | Screw |
| 9 | S1300KG8H9010TFB-2 | CARBURATOR REPAIR KIT - Call your local BRP dealership This part replaces S1300KG8H9010. |
| 10 | S1795KG8H9010 | Washer |
| 11 | SW957601000 | Screw |
| 12 | S1300KG8HQ010 | Spring |
| 13 | SK502RB10300 | Throttle Valve |
| 14 | SK5900760100 | Cover |
| 15 | S001C4T204000 | Spring |
| 16 | S101043FH9900 | Jet Needle |
| 17 | SK6165M470100 | Needle Jet Holder |
| 18 | SD1424KAG0100 | Jet |
| 19 | S16075PC37810M1 | O-Ring |
| 20 | SK7850760200 | Hose |
| 21 | S1305491H9901 | Spring |
| 22 | S1113HB7H6710 | LEVER CHOKE - Call your local BRP dealership |
| 23 | SD1141A630100K2 | Throttle Cable Support |
| 24 | NASP/NDPR | Not Available As Spare Parts |
| 25 | S16119MZ26000K2 | Stop Lever |
| 26 | S16155ZG8L100 | NEEDLE VALVE - Call your local BRP dealership |
| 27 | NASP/NDPR | Not Available As Spare Parts |
| 28 | NASP/NDPR | Not Available As Spare Parts |
| 29 | S1711ARCA000 | Inner Pipe This part replaces S17110RCA000. |
| 30 | S91308HMA000 | O-ring |
