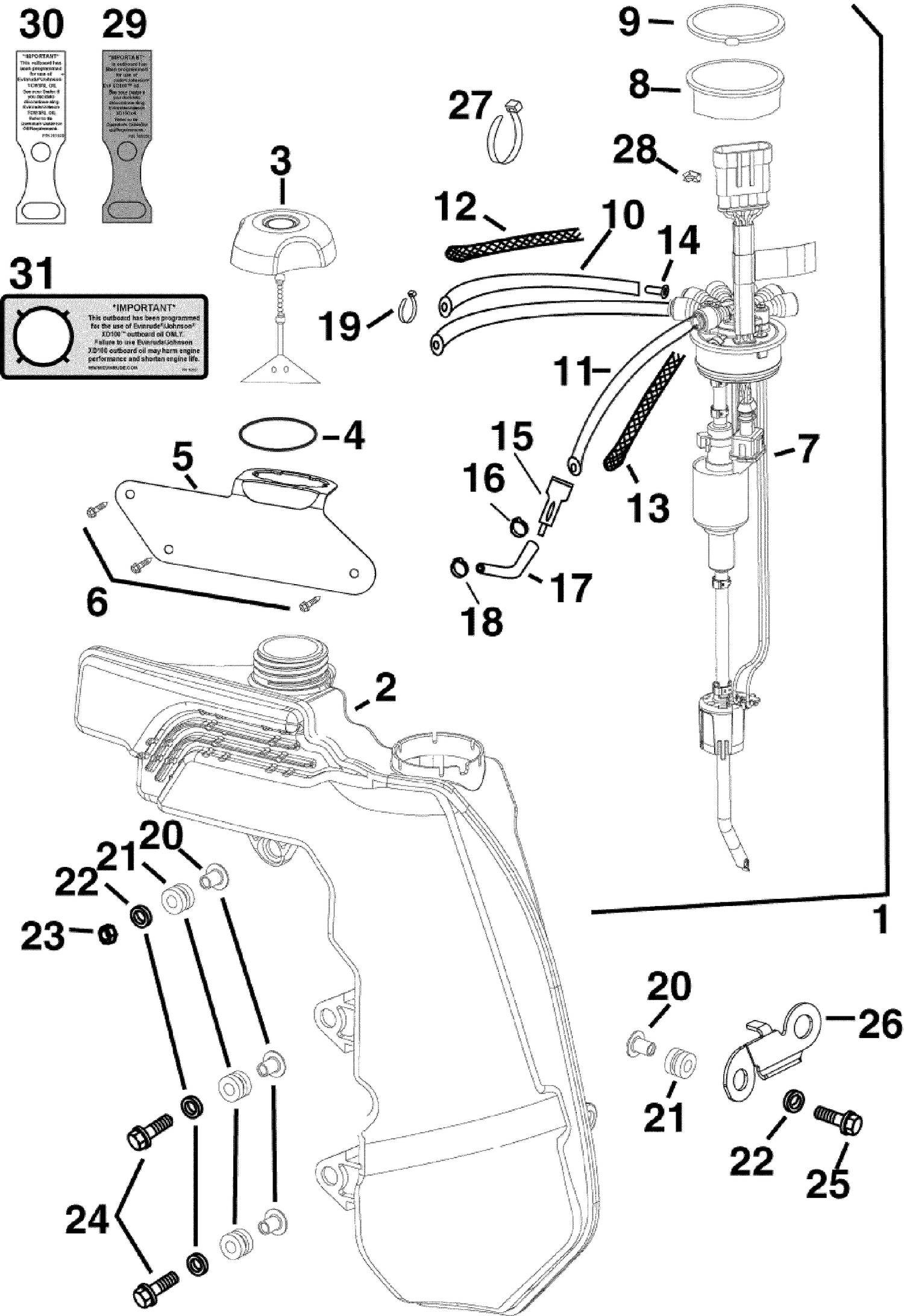

OIL TANK & PUMP
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5007253 | OIL TANK Assy This part replaces 5005485. |
| 7 | 5007477 | Kit Ay This part replaces 5005349. |
| 18 | 0348838 | CLAMP, 10.5mm |
| 24 | 0325115 | SCREW, Oil tank/EMM mount |
| 25 | 0341011 | SCREW, Adapter to housing, outer |
| 26 | 0350990 | BRACKET, Oil tank mount to injector |
| 29 | 0351520 | EMM Oil program tag - XD100 Oil |
| 30 | 0351519 | EMM Oil program tag - TC-W3 Oils |
