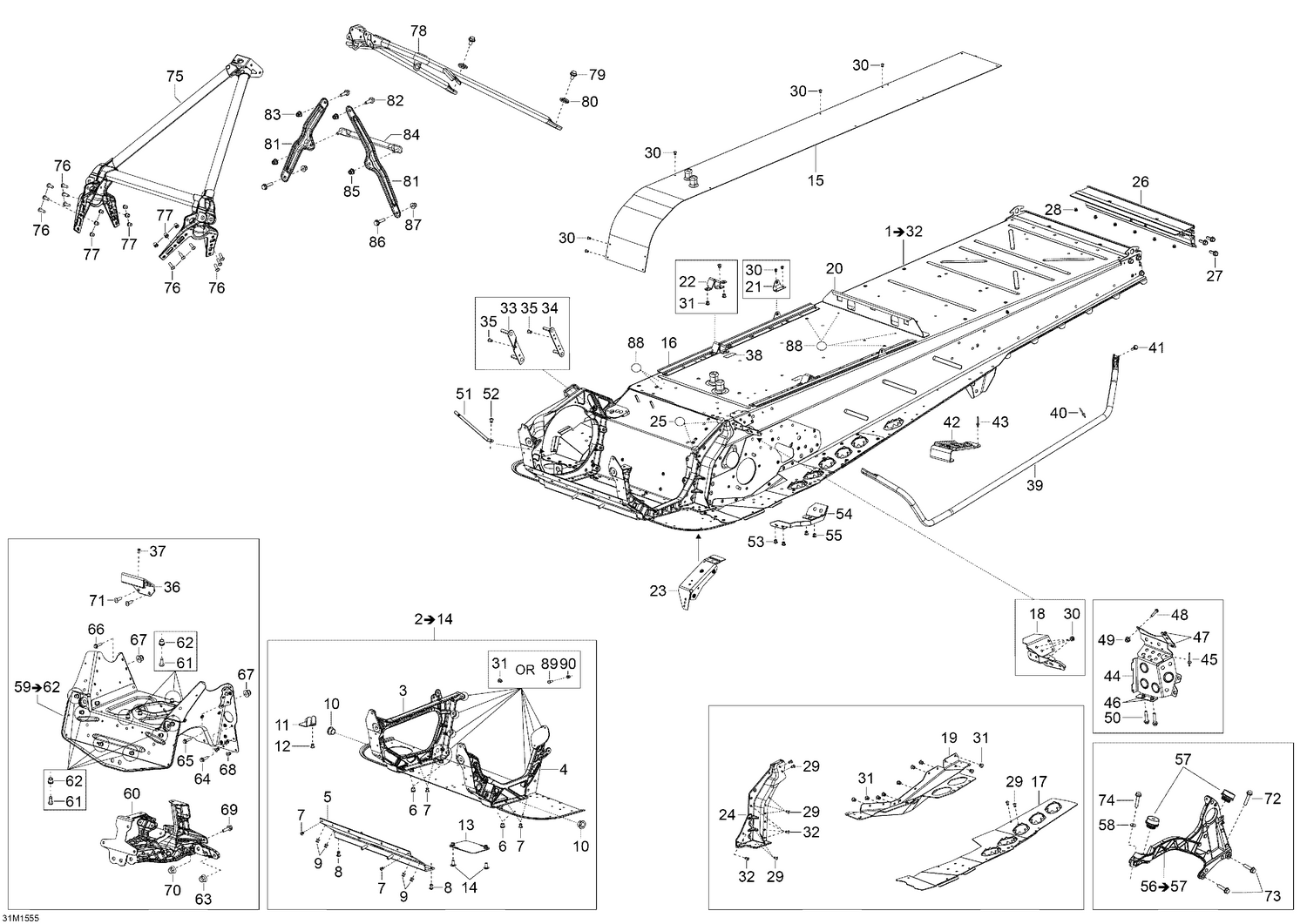

09- Frame _31M1555
Parts (88)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 518326328 | RH Side Member |
| 4 | 518326330 | LH Side Member |
| 5 | 518326198 | Front Member |
| 6 | 605636002 | Clinch Nut Hexsert M8 |
| 7 | 390909100 | Avex Rivet |
| 8 | 293150120 | Hemlock Rivet 6.5 mm |
| 9 | 293150119 | Hemlock Rivet, 6.5 mm |
| 10 | 505072690 | Leg Bushing |
| 11 | 518327983 | SUPPORT_EXHAUST - Call your local BRP dealership |
| 12 | 293150163 | Rivet Hucklok |
| 13 | 518328317 | Oil Plate |
| 14 | 250000767 | Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 15 | 509000976 | Tunnel Radiator This part replaces 509000867. |
| 16 | 518326107 | Fastening rail |
| 17 | 518326564 | FOOTREST LH - Call your local BRP dealership |
| 17 | 518326565 | FOOTREST RH - Call your local BRP dealership |
| 18 | 605355235 | FASTENING BRACKET - Call your local BRP dealership |
| 19 | Not | Available As Spare Part - LH Drive Axle Cover |
| 20 | 518325986 | BATTERY SUPPORT PLATE - Call your local BRP dealership |
| 21 | 518327457 | SEAT BOX BRACKET - Call your local BRP dealership |
| 22 | 518326109 | SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 22 | 518326110 | SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 23 | 518326430 | Clinch Nut plate |
| 24 | 518325524 | LH Frame Corner |
| 24 | 518328024 | RH Frame Corner |
| 25 | 518325560 | Adhesive Patch |
| 26 | 518328748 | Rear Profile This part replaces 518327194. |
| 27 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 28 | 293150174 | Hemlock Rivet, 6.4 mm |
| 29 | 390909100 | Avex Rivet |
| 30 | 390909200 | Avex Rivet |
| 31 | 293150119 | Hemlock Rivet, 6.5 mm |
| 32 | 293150183 | Rivet |
| 33 | 518326123 | GEARBOX FRONT PLATE - Call your local BRP dealership |
| 34 | 518326124 | Gearbox Rear Plate |
| 35 | 390402200 | Pop Rivet 3/16" |
| 36 | 518326178 | Engine Support |
| 37 | 293150174 | Hemlock Rivet, 6.4 mm |
| 38 | 518326357 | RUBBER COVER - Call your local BRP dealership |
| 39 | 518326963 | LH Footboard Support Tube |
| 39 | 518326964 | RH Footboard Support Tube |
| 40 | 390909100 | Avex Rivet |
| 41 | 207662056 | Hex. Flange Screw M6 x 20 |
| 42 | 520001208 | Black Rear Footrest |
| 43 | 293150102 | Rivet 3/16" |
| 44 | 518327375 | TOE HOLD L.H. - Call your local BRP dealership |
| 44 | 518327376 | Black RH Toe Hook |
| 45 | 390909200 | Avex Rivet |
| 46 | 605636003 | Clinch Nut M6 Hexsert |
| 47 | 605636003 | Clinch Nut M6 Hexsert |
| 48 | 207662056 | Hex. Flange Screw M6 x 20 |
| 49 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 50 | 250000223 | Torx Screw M6 X 16 |
| 51 | 514054828 | SPRING BRACKET - Call your local BRP dealership |
| 52 | 390909200 | Avex Rivet |
| 53 | 390909200 | Avex Rivet |
| 54 | 518326566 | PULLEY COVER PLATE - Call your local BRP dealership |
| 55 | 293150104 | Pop Rivet 3/16" |
| 57 | 512061516 | Vibration Damper This part replaces 512060295. |
| 58 | 234281474 | Conical Spring Washer M8 |
| 61 | 207662044 | Hex. Flange Screw M6 X 20 |
| 62 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 63 | 233281414 | Hex. Flange Elastic Nut M8 |
| 64 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 65 | 207662544 | Hex. Flange Screw M6 X 25 |
| 66 | 207662544 | Hex. Flange Screw M6 X 25 |
| 67 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 68 | 293150163 | Rivet Hucklok |
| 69 | 207662044 | Hex. Flange Screw M6 X 20 |
| 70 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 71 | 207661644 | Hex. Flange Screw M6 X 16 |
| 72 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 74 | 207584044 | Hex. Flange Screw M8 X 40, Scotch Grip |
| 75 | 518326975 | Front Member |
| 76 | 207662044 | Hex. Flange Screw M6 X 20 |
| 77 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 78 | 518329107 | UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 79 | 207662056 | Hex. Flange Screw M6 x 20 |
| 80 | Not | Available As Spare Part - Lock Washer |
| 81 | 518326848 | Upper Column Support |
| 82 | 207662056 | Hex. Flange Screw M6 x 20 |
| 83 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 84 | 518326355 | Center Column Support |
| 85 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 86 | 207662556 | Hex. Flange Screw M6 X 25 |
| 87 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 88 | 518325560 | Adhesive Patch |
| 89 | 207662044 | Hex. Flange Screw M6 X 20 |
