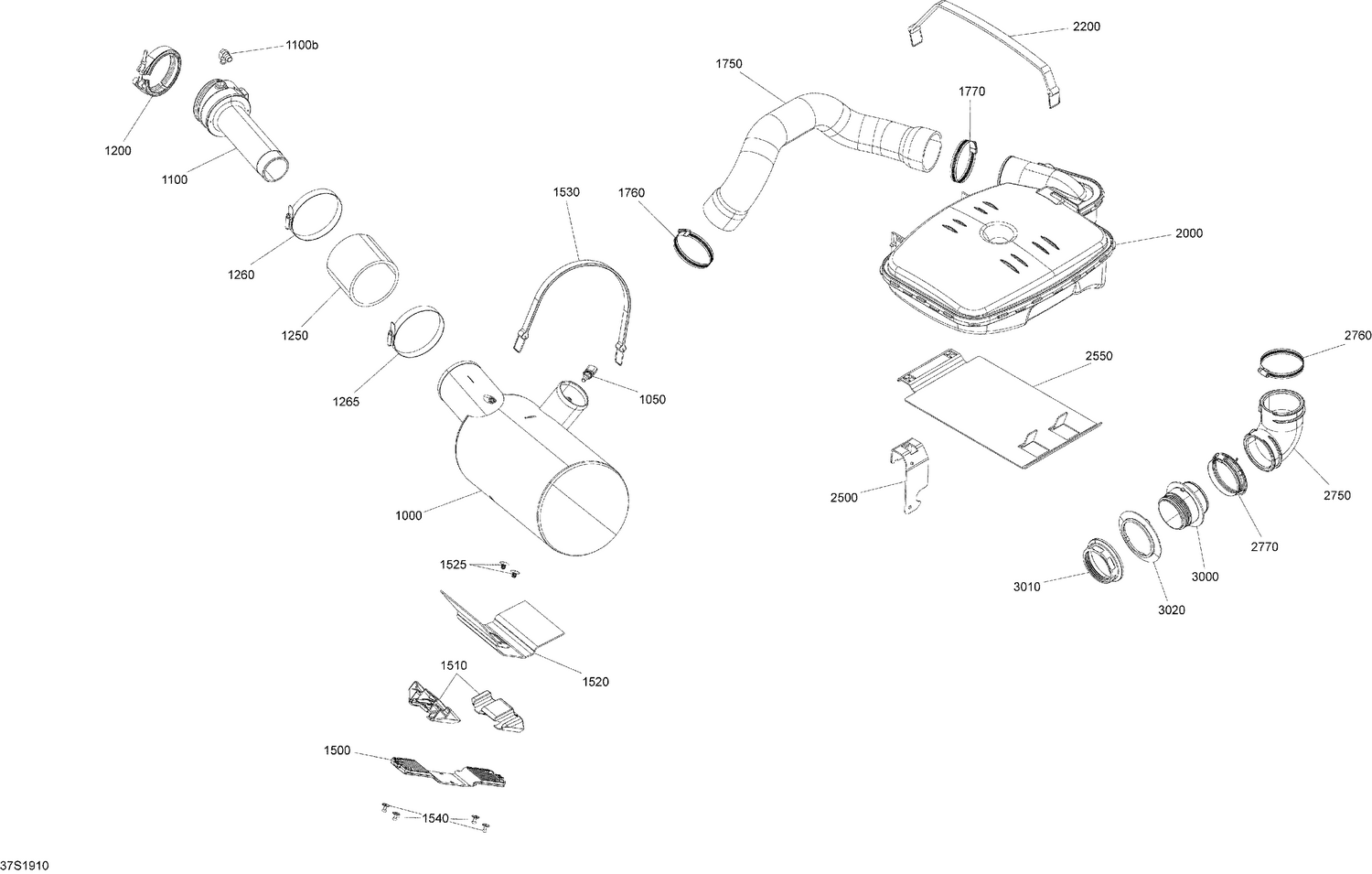

01- Exhaust System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 274001517 | Muffler |
| 1050 | 278002895 | Temperature Sensor |
| 1100b | 293700023 | Elbow Fitting 90° |
| 1200 | 274001417 | Exhaust Clamp |
| 1250 | 274001610 | Hose |
| 1260 | 293650202 | Gear Clamp This part replaces 293650281. |
| 1265 | 293650202 | Gear Clamp This part replaces 293650281. |
| 1500 | 293450365 | Muffler Support |
| 1510 | 274001721 | Stopper This part replaces 274001358. |
| 1520 | 293830153 | Pad Rubber |
| 1525 | 414939500 | Dart |
| 1530 | 293850120 | Strap |
| 1540 | 293150186 | Pop Rivet 3/16 |
| 1750 | 274001709 | Front Exhaust Hose This part replaces 274001622. |
| 1760 | 293650244 | Tridon Gear Clamp This part replaces 293650282. |
| 1770 | 293650244 | Tridon Gear Clamp This part replaces 293650282. |
| 2000 | 274001722 | Resonator This part replaces 274001514. |
| 2200 | 293850120 | Strap |
| 2500 | 292002297 | Hook Retaining This part replaces 292002030. |
| 2550 | 293830173 | Rubber Pad |
| 2750 | 274001628 | Rear Exhaust Hose |
| 2760 | 293650244 | Tridon Gear Clamp This part replaces 293650282. |
| 2770 | 293650244 | Tridon Gear Clamp This part replaces 293650282. |
| 3000 | 274001659 | Exhaust Fitting |
| 3010 | 274001541 | Nut-77mm |
