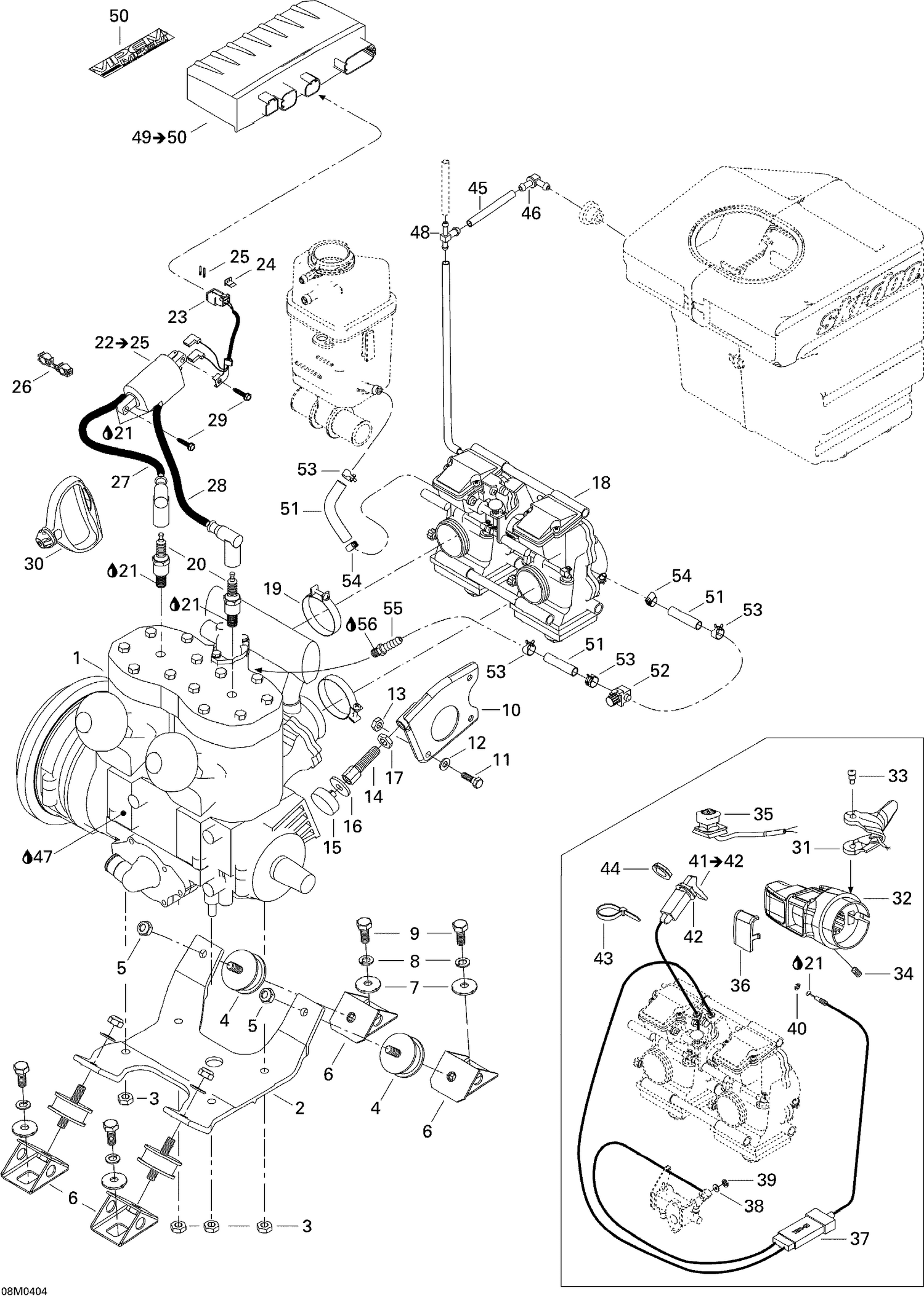

01- Engine Support
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 512059488 | ENGINE SUPPORT - Call your local BRP dealership |
| 3 | 233201414 | Hex. Flange Elastic Nut M10 |
| 4 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 512050900 | Engine Support |
| 7 | 512056700 | Lock Washer |
| 8 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 9 | 207102544 | Hex. Screw M10 X 25 |
| 10 | 512058500 | Support Plate |
| 11 | 207182044 | Hex. Screw M8 X 20 |
| 12 | 234081410 | Flat Washer 8 mm |
| 13 | 232581414 | Hex. Elastic Stop Nut M8 |
| 14 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 15 | 512059056 | Stopper |
| 16 | 512059057 | WASHER - Call your local BRP dealership |
| 17 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 19 | 512059835 | Gemi Clamp |
| 20 | 512059552 | Spark Plug NGK BR9ECS-5 |
| 21 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 23 | 409207300 | Female Connector, 2 Circuits |
| 24 | 409207100 | FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 25 | 278000632 | Female Terminal |
| 26 | 410914600 | Plastic Clip, Spark Plug Wire |
| 27 | 512059696 | Cable Ass’y, 375 mm This part replaces 512059485. |
| 28 | 512059486 | CABLE ASSY, 455 MM - Call your local BRP dealership |
| 30 | 572084400 | Starter Grip |
| 31 | 512060484 | Throttle Handle Ass'y This part replaces 512059483. |
| 32 | 512059763 | THROTTLE HOUSING - Call your local BRP dealership |
| 33 | 732601143 | Flange Screw |
| 34 | 414440800 | Socket Set Screw M8 X 10 |
| 35 | 515177362 | Emergency Stop Switch This part replaces 512059751. |
| 36 | 572100901 | Switch Cover |
| 38 | 234081100 | Flat Washer 8 mm, Nylon |
| 39 | 414753500 | Circlip |
| 40 | 414274500 | Circlip |
| 42 | 394103300 | Lock Washer, Interior Teeth |
| 43 | 293750009 | Tie-Rap 173 mm |
| 44 | 512059094 | PLASTIC NUT - Call your local BRP dealership |
| 45 | 219704410 | Polyurethane Hose 10000Mm Long |
| 46 | 414580600 | Elbow Male Connector |
| 47 | 779123 | OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 48 | 572045500 | T-Fitting |
| 50 | 516000245 | Electrical Box Decal |
| 51 | 509000093 | Hose 8 mm |
| 52 | 512059324 | Valve 5/16” |
| 53 | 414655700 | Spring Clamp |
| 54 | 293650170 | Tridon Gear Clamp This part replaces 293650128. |
| 55 | 293710082 | STRAIGHT FITTING - Call your local BRP dealership |
