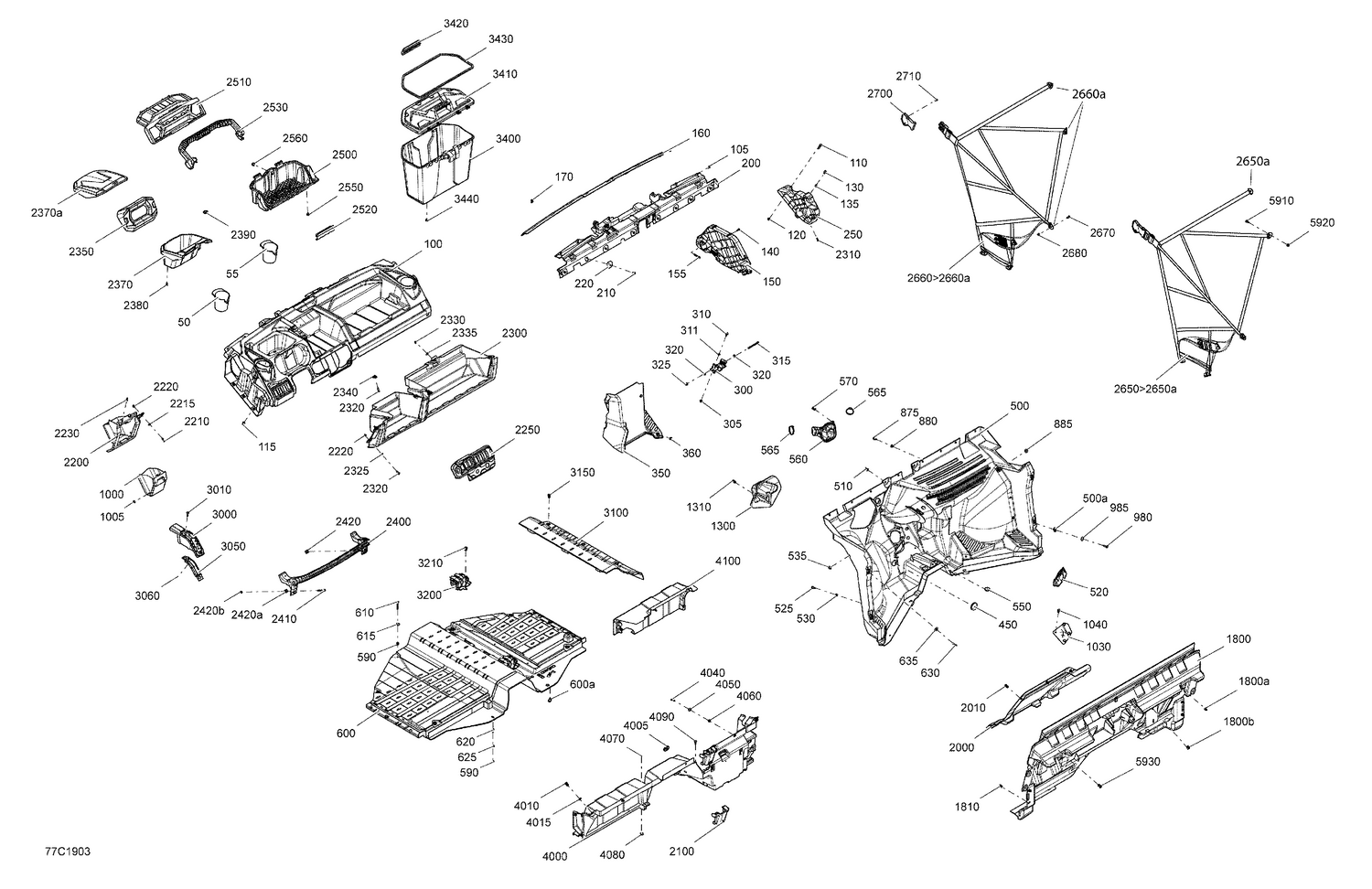

09- Cab Interior Traxter - HD10 - T1B
Parts (115)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 707900288 | Cup Holder |
| 55 | 707900580 | Rubber Cap |
| 100 | 715005678 | Dashboard Kit |
| 105 | 250000720 | Torx Screw K50 X 16 |
| 110 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 115 | 250000721 | Torx Truss Screw M6 X 16 |
| 130 | 250000712 | Torx Screw M6 X 20 |
| 135 | 233261494 | Hex. Flange Elastic Nut M6 |
| 140 | 250000720 | Torx Screw K50 X 16 |
| 150 | 707900249 | Dash Support |
| 155 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 160 | 707900411 | Dash Trim |
| 170 | 517302785 | Edge Clip |
| 200 | 707900296 | Upper Front Deflector |
| 210 | 250000720 | Torx Screw K50 X 16 |
| 220 | 705003841 | Support Plate |
| 250 | 707900367 | RH Support |
| 300 | 707900940 | Plier This part replaces 707900402. |
| 310 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 311 | 234061410 | Flat Washer 6 mm |
| 315 | 207068044 | Hex. Screw M6 X 80 |
| 320 | 234062670 | Stainless Steel Flat Washer |
| 325 | 233261494 | Hex. Flange Elastic Nut M6 |
| 350 | 707900289 | Front Bulkhead Cover |
| 360 | 293150230 | Tuflok Plastic Rivet |
| 365 | 293150230 | Tuflok Plastic Rivet |
| 450 | 293250242 | Rubber Cover |
| 500a | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 520 | 707900408 | DPS Cover |
| 525 | 250000712 | Torx Screw M6 X 20 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 535 | 234062670 | Stainless Steel Flat Washer |
| 550 | 291002744 | Bumber Cap |
| 560 | 707900390 | RH Rubber Cover |
| 565 | 293750008 | Tie Wrap 368 mm |
| 570 | 293150230 | Tuflok Plastic Rivet |
| 600a | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 610 | 250000868 | Torx Truss M6 X 50 |
| 615 | 250200162 | Flat Washer M6.6 X 22 |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 625 | 234062670 | Stainless Steel Flat Washer |
| 630 | 250000807 | Torx Truss Screw M6 X 25 |
| 635 | 250200162 | Flat Washer M6.6 X 22 |
| 875 | 250000712 | Torx Screw M6 X 20 |
| 880 | 233261494 | Hex. Flange Elastic Nut M6 |
| 885 | 234062670 | Stainless Steel Flat Washer |
| 980 | 250000807 | Torx Truss Screw M6 X 25 |
| 985 | 250200162 | Flat Washer M6.6 X 22 |
| 1000 | 707900252 | Drawer |
| 1005 | 293300194 | O-Ring |
| 1030 | 707900645 | STEERING COLUMN DEFLECTOR - Call your local BRP dealership |
| 1040 | 293150230 | Tuflok Plastic Rivet |
| 1300 | 707900389 | Exterior Cover |
| 1310 | 293150230 | Tuflok Plastic Rivet |
| 1800a | 293830005 | Rubber Bumper |
| 1800b | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1810 | 293150230 | Tuflok Plastic Rivet |
| 2000 | 707900326 | Engine Service Cover |
| 2010 | 293150230 | Tuflok Plastic Rivet |
| 2100 | 707900419 | Support belt cover |
| 2200 | 707900251 | LH Lower Dash This part replaces 707900251. |
| 2210 | 250000722 | Torx Screw M6 X 20 |
| 2215 | 234062670 | Stainless Steel Flat Washer |
| 2220 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 2230 | 250000720 | Torx Screw K50 X 16 |
| 2250 | 703501098 | Switch Support This part replaces 707900730. |
| 2300 | 707900250 | RH Lower Dash |
| 2310 | 250000720 | Torx Screw K50 X 16 |
| 2320 | 250000722 | Torx Screw M6 X 20 |
| 2325 | 234062670 | Stainless Steel Flat Washer |
| 2335 | 234062670 | Stainless Steel Flat Washer |
| 2340 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2350 | 707900358 | Cluster Support |
| 2370a | 703501087 | Storage Box Ass'y This part replaces 707900225. |
| 2380 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2390 | 705003264 | Grommet |
| 2400 | 707900248 | Passenger Handhold |
| 2410 | 250000648 | Torx Screw M6 X 60 |
| 2420a | 269500252 | M6 Nut Housing Ass'y |
| 2420b | 232561600 | Hex. Elastic Stop Nut M6 |
| 2650a | 707900049 | Upper Link |
| 2660a | 707900049 | Upper Link |
| 2670 | 250000721 | Torx Truss Screw M6 X 16 |
| 2700 | 707900592 | Safety Net Link |
| 2710 | 250000720 | Torx Screw K50 X 16 |
| 2715 | 707900610 | Support |
| 2720 | 250000767 | Torx Truss Screw M6 X 12 |
| 2725 | 707900609 | Net Anchor |
| 2740 | 250000789 | Torx Truss M6X14 |
| 3000 | 707900608 | Shifter Gate |
| 3010 | 250000728 | Torx Screw M6 X 25 |
| 3050 | 707900506 | Shifter Gate Deflector |
| 3060 | 250100178 | Push Nut |
| 3100 | 707900806 | Floor Panel This part replaces 707900324. |
| 3150 | 293150230 | Tuflok Plastic Rivet |
| 3200 | 707900325 | Hose Support |
| 3210 | 293150230 | Tuflok Plastic Rivet |
| 3400 | 715003314 | Storage Box |
| 3410 | 715003314 | Storage Box |
| 3420 | 269501945 | Clip |
| 3430 | 293250453 | Neoprene Seal |
| 3440 | 293830005 | Rubber Bumper |
| 4000 | 707900228 | Rear Lower Bulkhead |
| 4005 | 705005156 | Oval Washer |
| 4010 | 293150230 | Tuflok Plastic Rivet |
| 4011 | 293150230 | Tuflok Plastic Rivet |
| 4015 | 503192494 | Washer |
| 4016 | 503192494 | Washer |
| 4040 | 250000722 | Torx Screw M6 X 20 |
| 4050 | 234062670 | Stainless Steel Flat Washer |
| 4070 | 250000954 | Torx Screw M6 X 70 |
| 4080 | 250200162 | Flat Washer M6.6 X 22 |
| 4090 | 250000722 | Torx Screw M6 X 20 |
| 4100 | 707900282 | Battery Cover |
