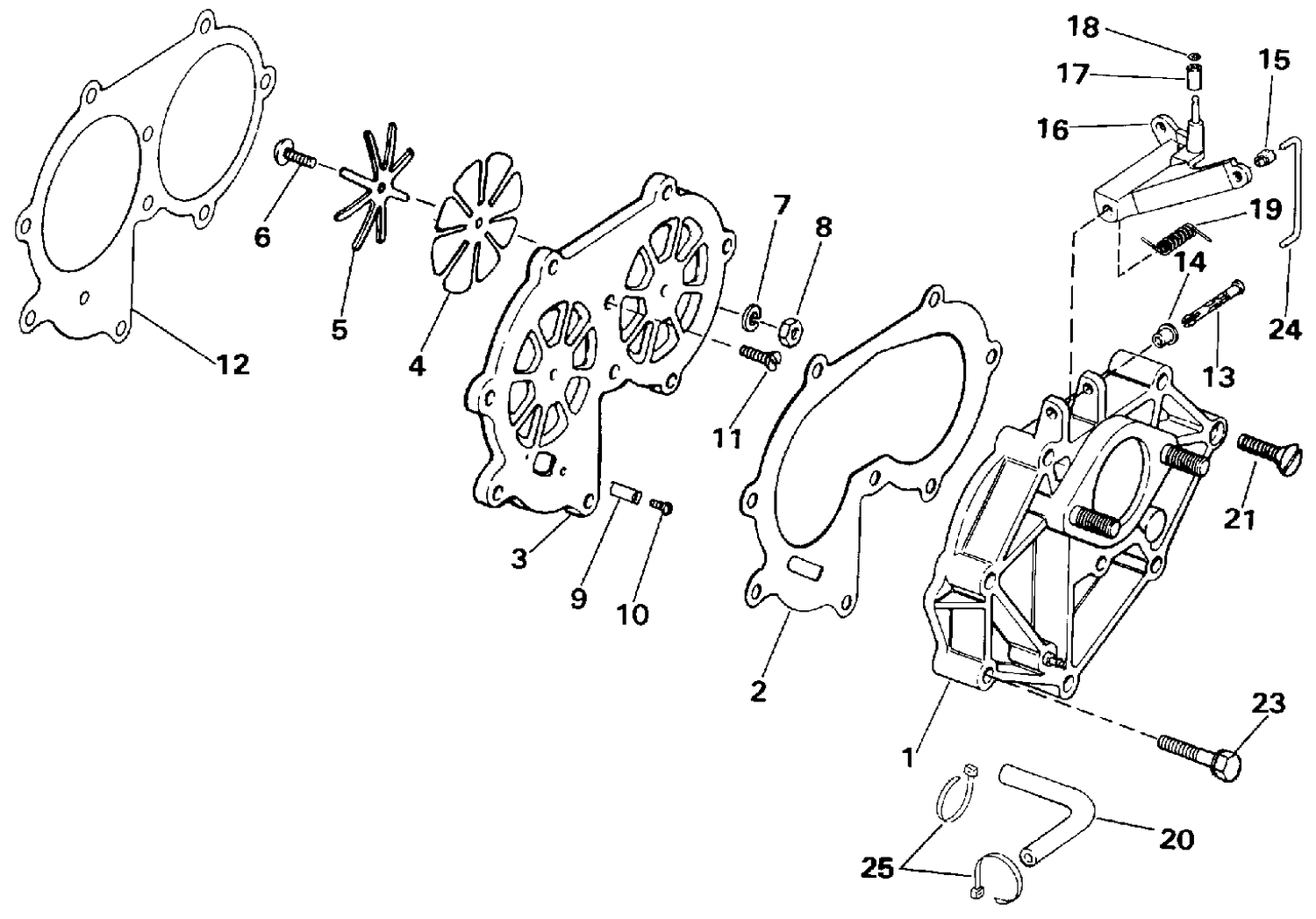

| Ref | Part Number | Description |
|---|
| 1 |
0396788 |
MANIFOLD, Intake |
| 1 |
0396790 |
MANIFOLD, Intake |
| 1 |
0434148 |
MANIFOLD, Intake |
| 2 |
0326260 |
GASKET, Manifold |
| 11 |
0307609 |
SCREW |
| 12 |
0321479 |
GASKET, Plate to crankcase |
| 13 |
0331449 |
PIN, Cam follower |
| 15 |
0313329 |
LOCKWASHER, Carburetor link |
| 16 |
0396154 |
CAM FOLLOWER |
| 17 |
0305232 |
ROLLER, Cam foller |
| 18 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 19 |
0320157 |
RETAINING RING, Roller |
| 20 |
HOSE, |
Manifold to bypass cover 12in. (305mm) 30,35 |
| 21 |
0304294 |
SCREW Manifold to crankcase |
| 23 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 24 |
0330227 |
LINK, Carb to cam follower |
| 0398489 |
0437712 |
LEAF PLATE ASSEMBLY This part replaces 0398489. |
