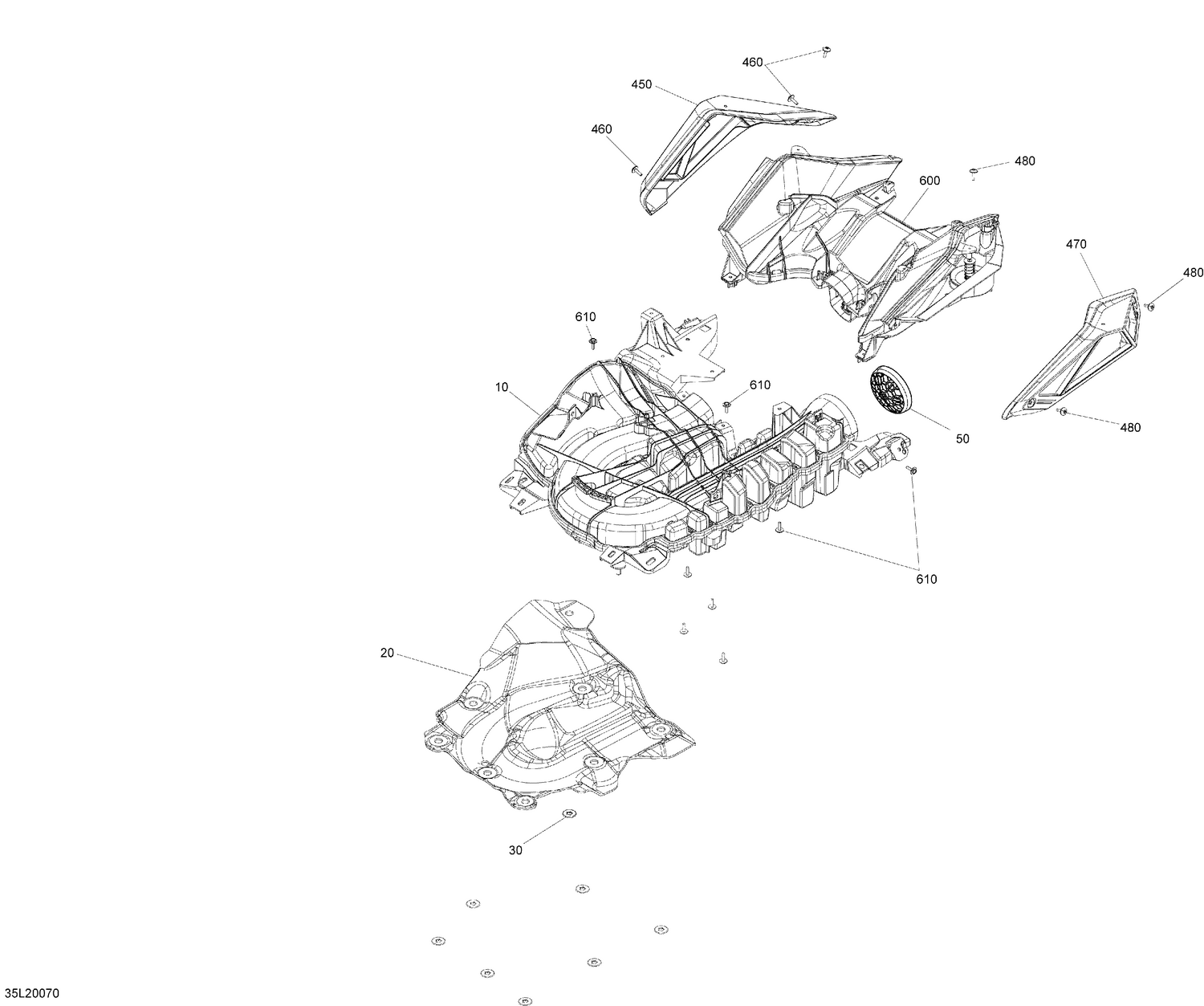

02- Engine - Air Intake
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508000874 | Secondary Chamber |
| 20 | 508000942 | Acoustic Cover |
| 30 | 508000853 | Push Nut |
| 50 | 508000967 | Filter (Honeycomb) |
| 450 | 508000806 | RH Air Filter (Nitex Mesh) |
| 460 | 250000889 | Screw M4 X 16 |
| 470 | 508000807 | LH Air Filter (Nitex Mesh) |
| 480 | 250000889 | Screw M4 X 16 |
| 600 | 508000915 | Air Duct Ass'y |
| 610 | 250000725 | Screw M4 X 16 |
