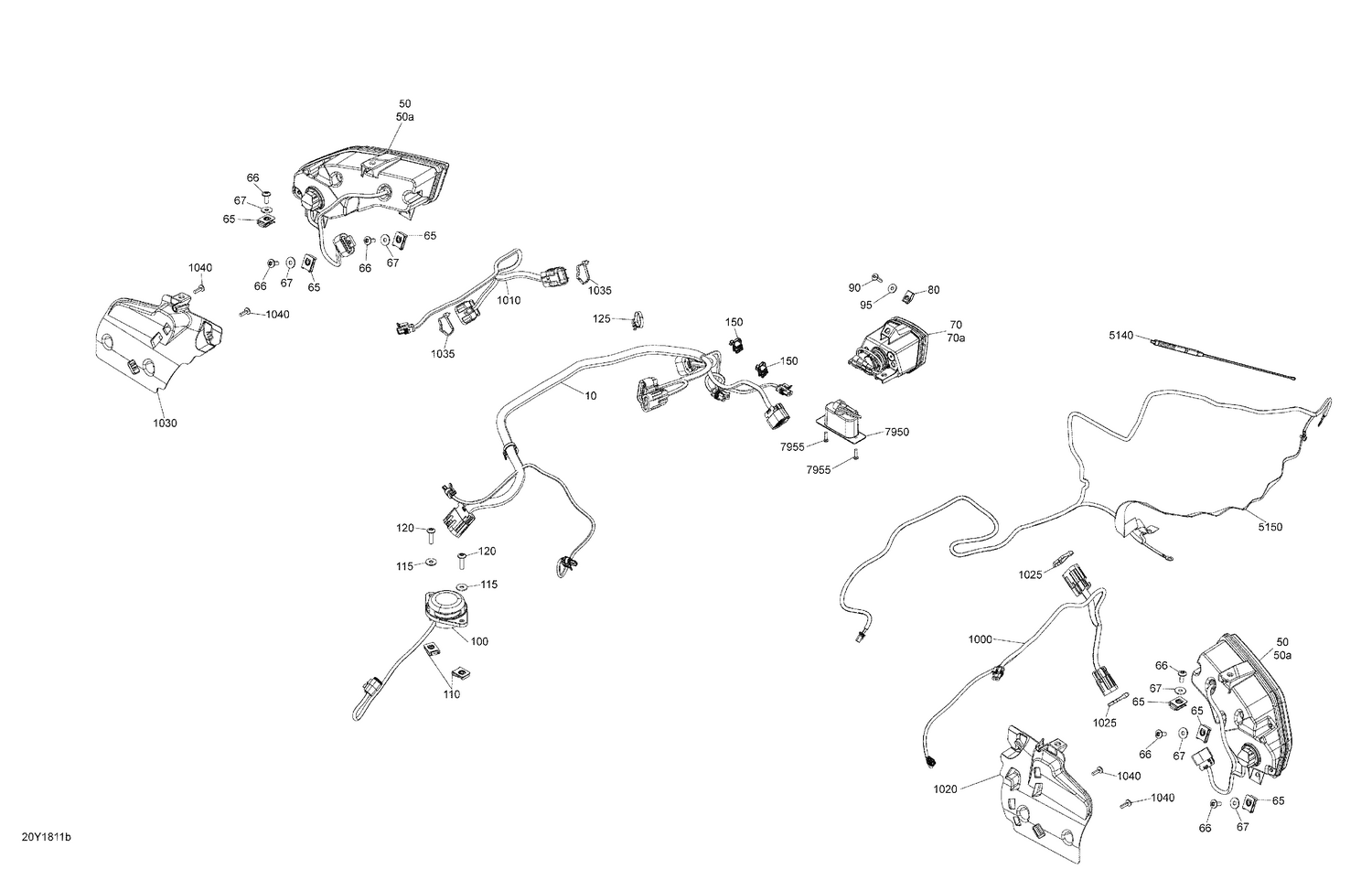

10- Electrical Cargo F3 - T
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 710004900 | Connector Plug |
| 20 | 708400046 | Cap |
| 50a | 219800039 | Bulb 12V/10W, Amber |
| 65 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 66 | 250000717 | Torx Head Screw M6 X 16 |
| 67 | 250200164 | Flat washer M6 |
| 70a | 219800322 | Bulb 12V 10W |
| 80 | 250100176 | Panel Nut M5 X 0.8 |
| 90 | 250000715 | Torx Truss Screw M5 X 20 |
| 95 | 234052670 | Stainless Steel Flat Washer M5 |
| 100 | 710008103 | Passenger Detection Switch This part replaces 710005543. |
| 110 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 115 | 234062670 | Stainless Steel Flat Washer |
| 120 | 250000807 | Torx Truss Screw M6 X 25 |
| 125 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 150 | 710002899 | Clip Tie-Rap |
| 1000 | 710004608 | LH Cargo Harness |
| 1010 | 710004609 | RH Cargo Harness |
| 1020 | 710004643 | LH Connector Support |
| 1025 | 414115200 | Tie-Rap 180 mm |
| 1030 | 710004644 | RH Connector Support |
| 1035 | 414115200 | Tie-Rap 180 mm |
| 1040 | 250000720 | Torx Screw K50 X 16 |
| 5140 | 710005434 | Antenna |
| 5141 | 708302051 | Antenna Cap |
| 5150 | 710005507 | ANTENNA CABLE ASSEMBLY - Call your local BRP dealership |
| 5151 | 708301797 | Antenna Support |
| 5152 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 5153 | 250000722 | Torx Screw M6 X 20 |
| 5200 | 207682044 | Hex. Flange Screw M8 X 20 |
| 7950 | 710001451 | License Light |
