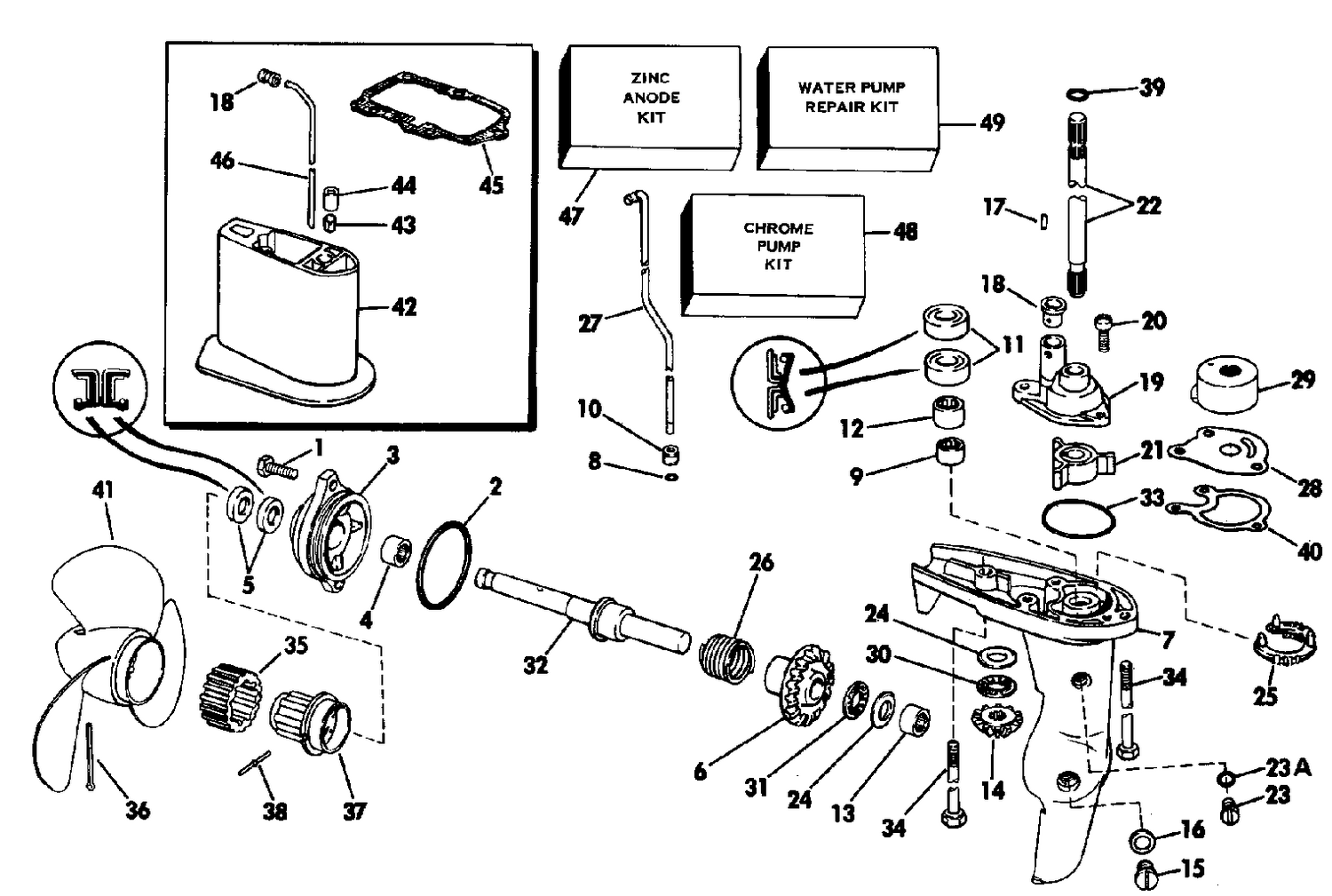

GEARCASE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 18 | 0317462 | GROMMET, Water tube |
| 21 | 0396852 | IMPELLER ASSEMBLY |
| 22 | 0391594 | DRIVESHAFT ASSY., Std |
| 22 | 0391595 | DRIVESHAFT ASSY., Long |
| 23A | 0333815 | O-RING, Vent screw |
| 32 | 0398315 | PROPELLER SHAFT ASSY. |
| 35 | 0310331 | RING, Clutch |
| 36 | 0313693 | COTTER PIN |
| 37 | 0398316 | CLUTCH HUB, Propeller |
| 38 | 0333513 | DRIVE IN, Propeller |
| 41 | 0318487 | PROPELLER |
| 45 | 0327169 | GASKET, Cyl. & c'case to exh. hsg. |
| 47 | 0173029 | ANODE |
| 48 | 0394113 | CHROME PUMP KIT |
| 49 | 0431785 | WATER PUMP REPAIR KIT This part replaces 0431784. |
| 0391736 | 0391736 | EXTENSION KIT - 5 in |
| 0432499 | 0432499 | GEARCASE ASSEMBLY |
| 0432500 | 0432500 | GEARCASE ASSEMBLY |
