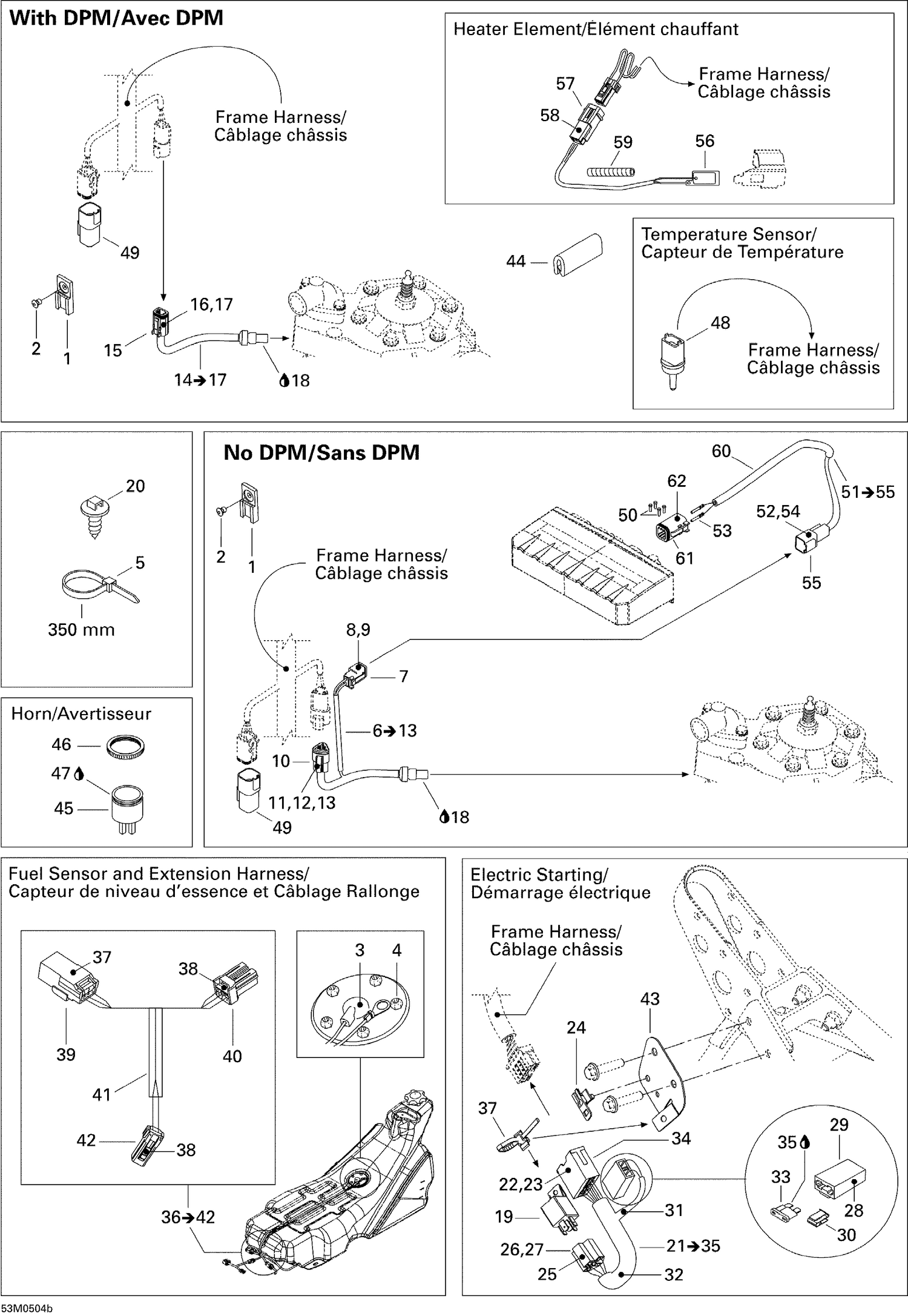

| Ref | Part Number | Description |
|---|
| 1 |
270000141 |
Clip This part replaces 515175917. |
| 2 |
293150037 |
Avdel Rivet 3/16" |
| 5 |
293750008 |
Tie Wrap 368 mm |
| 6 |
XXX |
Not Available As Spare Parts |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
XXX |
Not Available As Spare Parts |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
XXX |
Not Available As Spare Parts |
| 15 |
278000739 |
Male Connector, 4 Circuits |
| 16 |
278000632 |
Female Terminal |
| 17 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 18 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 19 |
710010053 |
Relay This part replaces 410113200. |
| 20 |
293730040 |
Mount Dart This part replaces 293730018. |
| 22 |
515175232 |
Male Terminal |
| 23 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 24 |
515175283 |
Housing Support |
| 25 |
409209900 |
Female Housing, 5 Circuits |
| 26 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 27 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 28 |
409011600 |
Female Terminal |
| 29 |
409004000 |
Fuse Holder |
| 30 |
409014200 |
CLIP - Call your local BRP dealership |
| 31 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 32 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 33 |
278000344 |
Fuse, 5 Amperes |
| 34 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 35 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 37 |
515175232 |
Male Terminal |
| 38 |
515175231 |
Female Terminal |
| 39 |
515175494 |
Male Housing, 3 Circuits |
| 40 |
515175495 |
Female Housing, 3 Circuits |
| 41 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 42 |
515175658 |
Female Housing, 2 Circuits |
| 43 |
515176020 |
HARNESS SUPPORT - Call your local BRP dealership |
| 45 |
515176035 |
HORN - Call your local BRP dealership |
| 46 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 47 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 49 |
XXX |
Not Available As Spare Parts |
| 50 |
XXX |
Not Available As Spare Parts |
| 51 |
XXX |
Not Available As Spare Parts |
| 52 |
XXX |
Not Available As Spare Parts |
| 53 |
XXX |
Not Available As Spare Parts |
| 54 |
XXX |
Not Available As Spare Parts |
| 55 |
XXX |
Not Available As Spare Parts |
| 60 |
XXX |
Not Available As Spare Parts |
| 61 |
XXX |
Not Available As Spare Parts |
