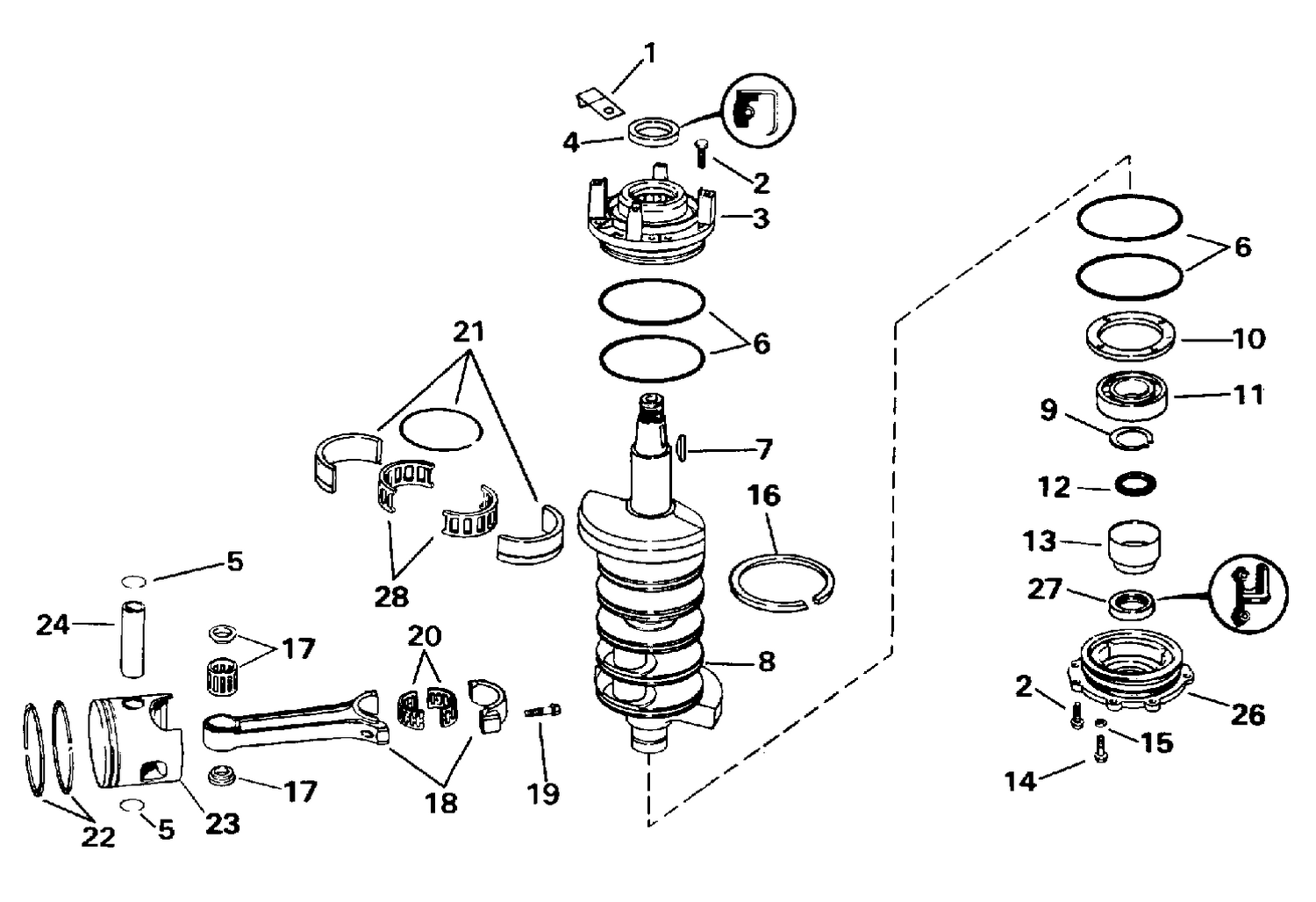

| Ref | Part Number | Description |
|---|
| 3 |
0398755 |
CRANKCASE HEAD & BRG. ASSY. |
| 8 |
0434772 |
CRANKSHAFT ASSY. |
| 9 |
0326047 |
Retaining Ring |
| 12 |
0337087 |
O-Ring |
| 16 |
0326749 |
SEAL RING |
| 17 |
0434844 |
BEARING, Wrist pin |
| 18 |
5005208 |
ROD ASSY., Connecting This part replaces 0435355. |
| 20 |
0396041 |
BEARING, Connecting rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
0437134 |
RING SET, Standard |
| 22 |
0437135 |
RING SET, 0.030 in. O.S. |
| 23 |
5006684 |
Piston & Ring Kit This part replaces 0435575. |
| 23 |
5006685 |
Piston & Ring Kit This part replaces 0435576. |
| 23 |
5006696 |
Pstn&Rng Kit This part replaces 0437111. |
| 23 |
5006697 |
Pstn&Rng Kit This part replaces 0437112. |
| 26 |
5007695 |
CRANKCASE HEAD Assembly, Lower This part replaces 0434792. |
