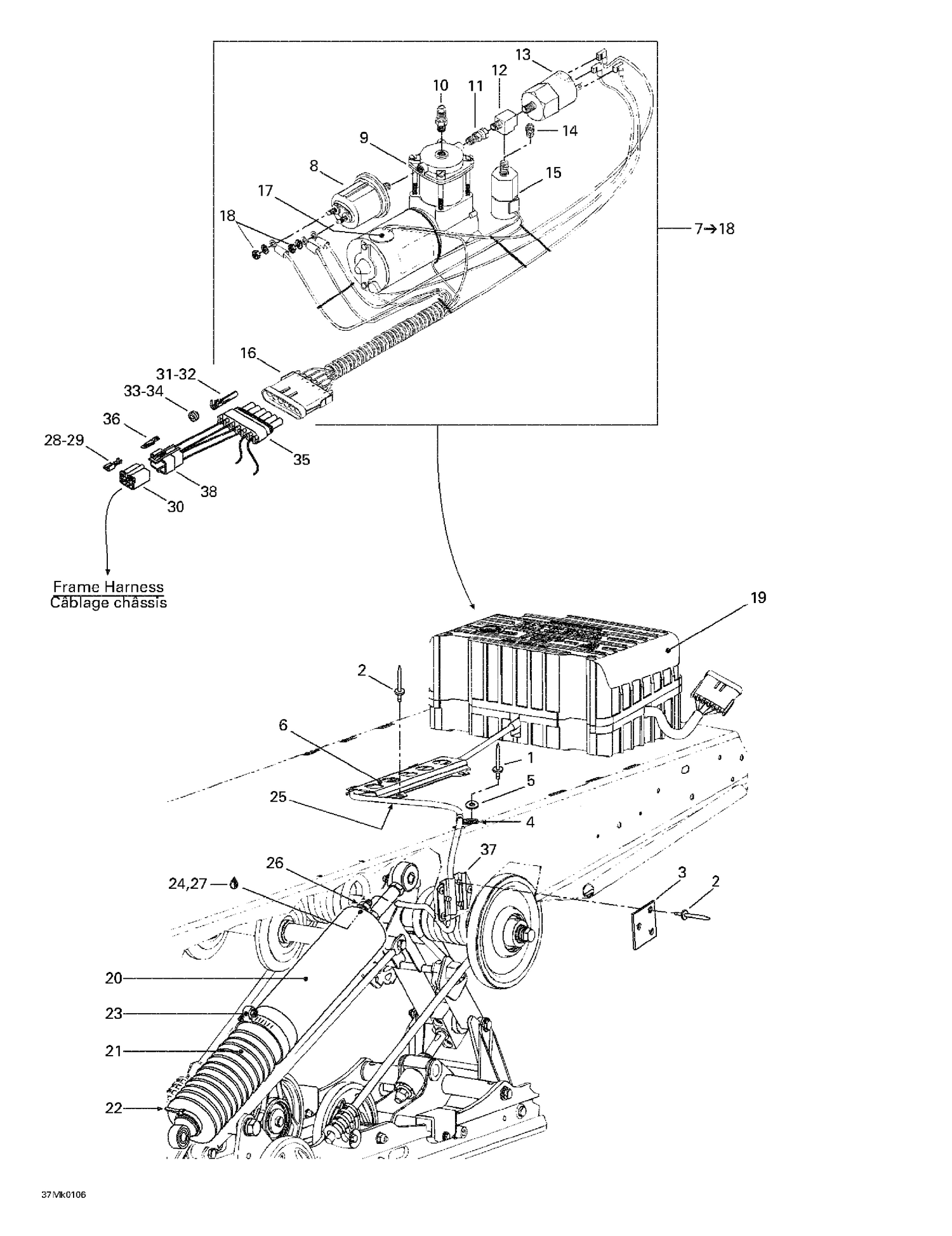

08- Air Shock And Compressor
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 390402200 | Pop Rivet 3/16" |
| 2 | 390402400 | Pop Rivet 3/16" |
| 3 | 518317563 | Protector Plate |
| 4 | Not | Available As Spare Part - Bracket |
| 5 | 517124300 | Washer |
| 6 | 518317580 | Upper Guide |
| 8 | 415043600 | Pressure Sender |
| 9 | 503189096 | Air Compressor |
| 10 | 414893900 | Adaptor |
| 11 | 415108400 | Swivel Fitting |
| 12 | 415116400 | T Fitting |
| 13 | 503189212 | Valve |
| 14 | 415099200 | Pressure Regulator |
| 15 | 503189097 | VALVE - Call your local BRP dealership |
| 16 | 278000156 | FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 17 | 409014400 | Resettable Fuse |
| 18 | Not | Available As Spare Part - Nut |
| 19 | 503189049 | Compressor Box |
| 20 | 503189268 | Shock |
| 21 | 570278300 | Protection Boot |
| 22 | 414115200 | Tie-Rap 180 mm |
| 23 | 408803300 | Tridon Gear Clamp |
| 24 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 25 | 415093700 | Pneumatic Hose |
| 26 | 414893900 | Adaptor |
| 27 | 293800060 | Loctite 243, 10 ml |
| 28 | 561503200 | Female Terminal PACKARD |
| 29 | 515175313 | FEMALE TERMINAL - Call your local BRP dealership |
| 30 | 409204900 | FEMALE HOUSING - Call your local BRP dealership |
| 31 | 278000223 | Female Terminal |
| 32 | 409207300 | Female Connector, 2 Circuits |
| 33 | 278000218 | Wire Seal |
| 34 | 710000048 | Wire Seal |
| 35 | 278000221 | MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 36 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 37 | 518317562 | Protector Guide |
