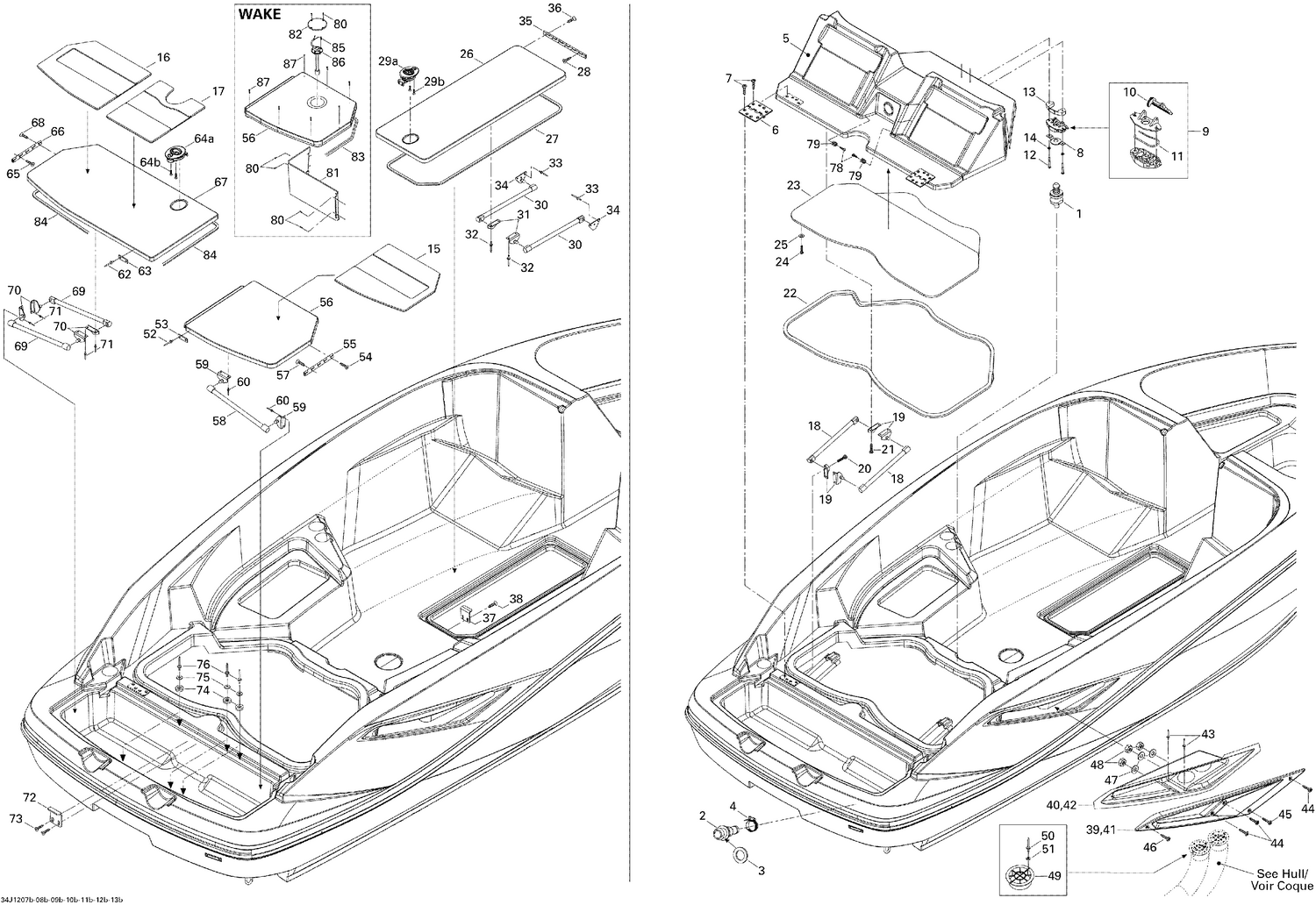

| Ref | Part Number | Description |
|---|
| 1 |
204130146 |
Latch Stud |
| 2 |
293710162 |
Fitting This part replaces 293710015. |
| 3 |
292001486 |
Gasket |
| 4 |
293650016 |
Tridon Clamp |
| 5 |
291003708 |
ENGINE COVER - Call your local BRP dealership |
| 6 |
291003158 |
HINGE - Call your local BRP dealership |
| 7 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 8 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 9 |
269700109 |
Latch Ass'y |
| 10 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 11 |
269700017 |
Latch Spring |
| 12 |
207064560 |
HEX. SCREW M6 X 45 - Call your local BRP dealership |
| 13 |
269700015 |
SHIM - Call your local BRP dealership |
| 14 |
234061600 |
Stainless Flat Washer M6 |
| 15 |
291002959 |
SWIM PLATFORM CARPET, STARBOARD - Call your local BRP dealership |
| 16 |
291002999 |
SWIM PLATFORM CARPET, PORT SIDE - Call your local BRP dealership |
| 17 |
291002958 |
SWIM PLATFORM CARPET, CENTRAL - Call your local BRP dealership |
| 18 |
291003009 |
GAS SHOCK - Call your local BRP dealership |
| 19 |
204073074 |
Shock Bracket |
| 20 |
207152560 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 21 |
207152560 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 22 |
204130083 |
D-SEAL RUBBER - Call your local BRP dealership |
| 23 |
269700127 |
ENGINE HATCH SOUND WALL - Call your local BRP dealership |
| 24 |
204100073 |
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership |
| 25 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 26 |
291003719 |
SKI LID - Call your local BRP dealership |
| 27 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 28 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 29a |
291003414 |
LATCH, STAINLESS STEEL - Call your local BRP dealership |
| 29b |
208652560 |
Phillips Screw M5 X 25 |
| 30 |
204071874 |
GAS SHOCK - Call your local BRP dealership |
| 31 |
204073074 |
Shock Bracket |
| 32 |
293150088 |
Pop Rivet 3/16" |
| 33 |
293150043 |
Pop Rivet 3/16" |
| 34 |
204073065 |
SHOCK BRACKET - Call your local BRP dealership |
| 35 |
291002975 |
HINGE - Call your local BRP dealership |
| 36 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 37 |
291003012 |
KEEPER - Call your local BRP dealership |
| 38 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 39 |
237000049 |
VENT COVER, STARBOARD - Call your local BRP dealership |
| 40 |
237000050 |
VENT BASE, STARBOARD - Call your local BRP dealership |
| 41 |
237000051 |
VENT COVER, PORT SIDE - Call your local BRP dealership |
| 42 |
237000052 |
VENT BASE, PORT SIDE - Call your local BRP dealership |
| 43 |
293150065 |
RIVET - Call your local BRP dealership |
| 44 |
205464060 |
Socket Screw M6 X 40 |
| 45 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 46 |
205466060 |
HEX. SOCKET SCREW M6 X 60 - Call your local BRP dealership |
| 47 |
234062600 |
Flat Washer M6, Stainless |
| 48 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 49 |
204050637 |
VENT GRILL 4 - Call your local BRP dealership |
| 50 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 51 |
234031600 |
Flat Washer 3 mm, Stainless Steel |
| 52 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 53 |
262000131 |
SWIM PLATFORM LID SHIM - Call your local BRP dealership |
| 54 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 55 |
291002976 |
HINGE - Call your local BRP dealership |
| 56 |
291003718 |
COVER-STBD SE, SP - Call your local BRP dealership |
| 57 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 58 |
204071918 |
CYLINDER GAS SHOCK - Call your local BRP dealership |
| 59 |
204073074 |
Shock Bracket |
| 60 |
293150088 |
Pop Rivet 3/16" |
| 62 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 63 |
262000131 |
SWIM PLATFORM LID SHIM - Call your local BRP dealership |
| 64a |
291003414 |
LATCH, STAINLESS STEEL - Call your local BRP dealership |
| 64b |
208652560 |
Phillips Screw M5 X 25 |
| 65 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 66 |
291002976 |
HINGE - Call your local BRP dealership |
| 67 |
291003699 |
COVER-PORT SE,SP - Call your local BRP dealership |
| 68 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 69 |
204071874 |
GAS SHOCK - Call your local BRP dealership |
| 70 |
204073074 |
Shock Bracket |
| 71 |
293150088 |
Pop Rivet 3/16" |
| 72 |
291003012 |
KEEPER - Call your local BRP dealership |
| 73 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 74 |
204073815 |
BUMPER PAD - Call your local BRP dealership |
| 75 |
234041600 |
Flat Washer 4 mm, Stainless |
| 76 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 78 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 79 |
204073221 |
Attachment Knob |
| 80 |
XXX |
Not Available As Spare Parts |
| 81 |
XXX |
Not Available As Spare Parts |
| 82 |
XXX |
Not Available As Spare Parts |
| 83 |
XXX |
Not Available As Spare Parts |
| 84 |
XXX |
Not Available As Spare Parts |
| 85 |
XXX |
Not Available As Spare Parts |
| 86 |
XXX |
Not Available As Spare Parts |
