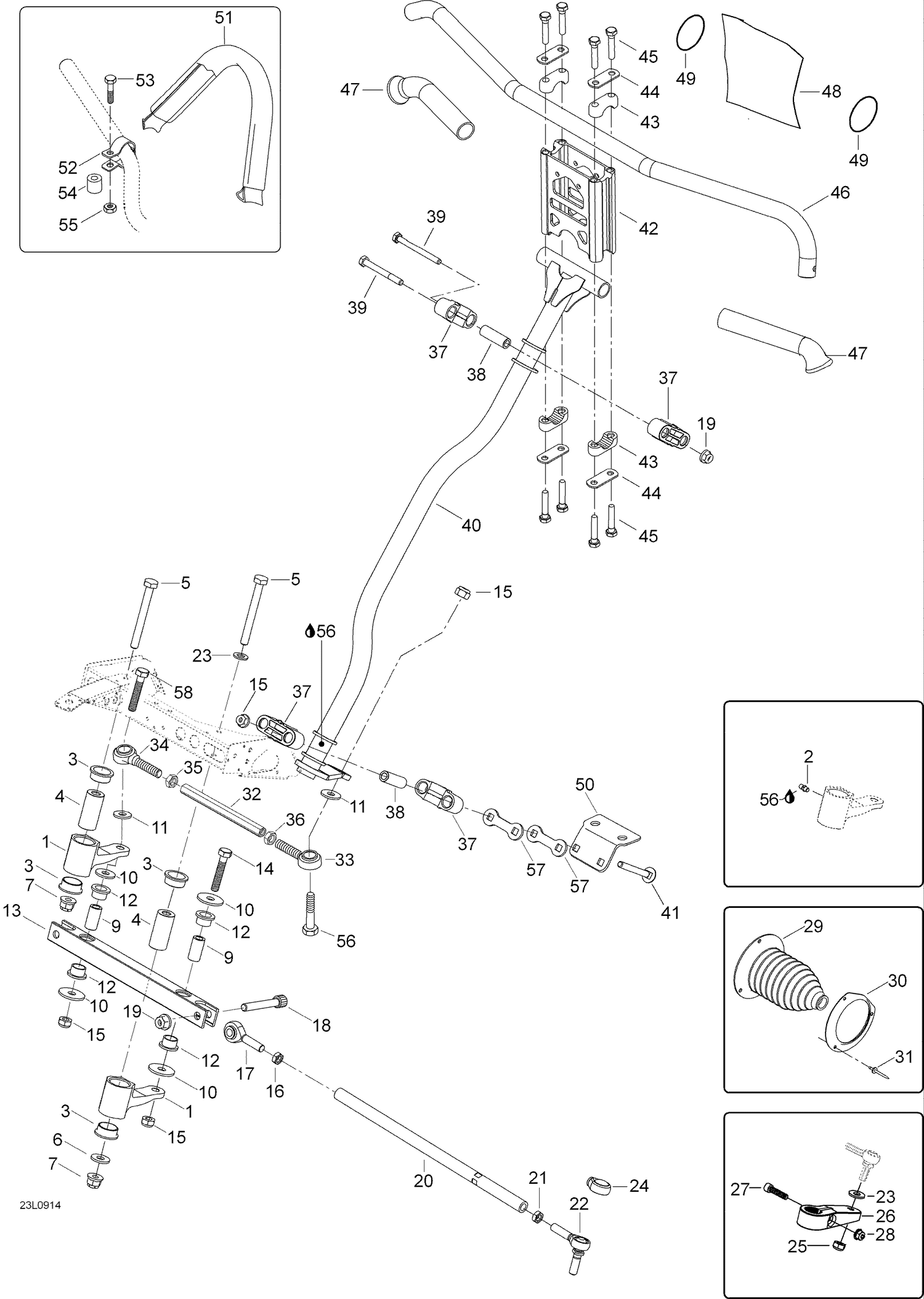

| Ref | Part Number | Description |
|---|
| 1 |
506152123 |
LH SWIVEL ARM - Call your local BRP dealership |
| 1 |
506152124 |
RH SWIVEL ARM - Call your local BRP dealership |
| 2 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 3 |
415041100 |
CUSHION - Call your local BRP dealership |
| 4 |
506151272 |
SWIVEL PIVOT - Call your local BRP dealership |
| 5 |
40021 |
Hex. screw M10 x 70 |
| 6 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 7 |
33012 |
Elastic stop nut M10 |
| 8 |
234002410 |
Flat Washer 10 mm This part replaces 20011. |
| 9 |
506151273 |
Pivot bar |
| 10 |
250200014 |
Flat Washer This part replaces 506151251. |
| 11 |
31014 |
Washer |
| 12 |
503191555 |
Bushing swivel |
| 13 |
605349868 |
Bar-swivel |
| 14 |
40017 |
Screw M10 x 50 |
| 15 |
33055 |
Elastic flanged nut M8 |
| 16 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 17 |
506151496 |
LH BALL JOINT - Call your local BRP dealership |
| 18 |
40395 |
Socket head screw M8 x 35 |
| 19 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 20 |
605353870 |
Tie-rod |
| 21 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 22 |
506151491 |
R.H. Joint ball |
| 23 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 24 |
506151650 |
PROTECTION CAP - Call your local BRP dealership |
| 25 |
33023 |
Elastic stop nut M10 |
| 26 |
506144800 |
R.H. steering arm |
| 26 |
506144900 |
L.H. steering arm |
| 27 |
40843 |
Socket head screw M8 x 35 |
| 28 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 29 |
605252101 |
Tie-rod cap |
| 30 |
605351469 |
Retainer ring |
| 31 |
36009 |
Rivet |
| 32 |
605353888 |
Tie-rod |
| 33 |
311031L |
L.H. Ball joint |
| 34 |
311031R |
R.H. Ball joint |
| 35 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 36 |
33017 |
Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership |
| 37 |
506150400 |
Housing half |
| 38 |
506150500 |
Housing bushing |
| 39 |
40011 |
Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership |
| 40 |
605255492 |
Main tube |
| 41 |
207787044 |
Screw M8 x 70 |
| 42 |
506152457 |
Extension 130 mm. This part replaces 506152109. |
| 43 |
709400919 |
Steering Support This part replaces 506151622. |
| 44 |
709400509 |
Stiffner This part replaces 506151196. |
| 45 |
250000074 |
Hex. screw M8 x 40 |
| 46 |
506152398 |
Handle bar |
| 47 |
605355701 |
L:H:/R.H. Grip |
| 48 |
605352881 |
Steering padding |
| 49 |
12402 |
O-ring |
| 50 |
605355392 |
Support plate |
| 51 |
506152115 |
Grip and cover |
| 52 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 53 |
40031 |
Screw M6 x 25 |
| 54 |
506152156 |
Sleeve |
| 55 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 56 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 57 |
506150600 |
Plate stopper |
