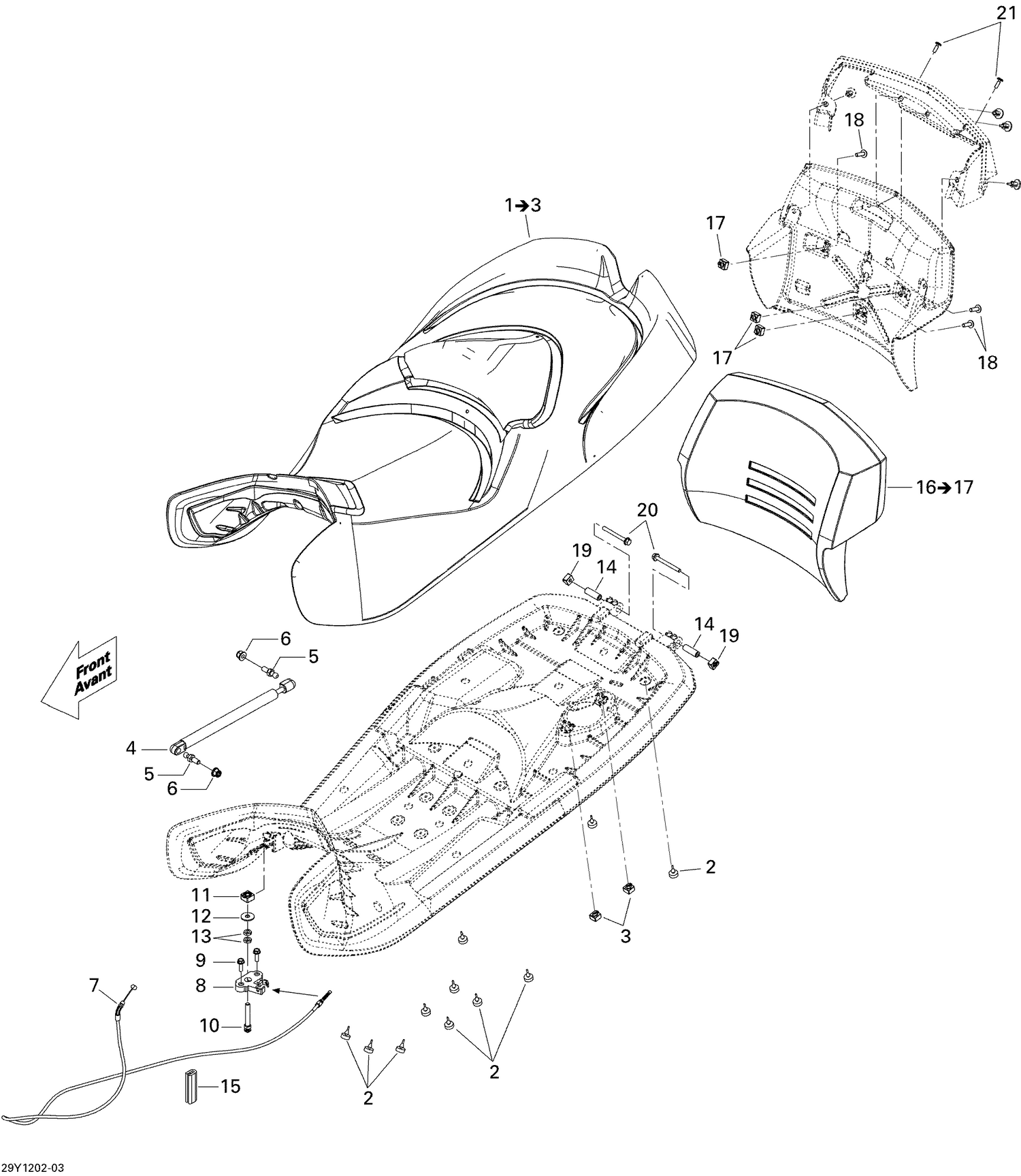

09- Seat
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 708000759 | Rubber Stopper |
| 3 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 4 | 708000658 | Gaz Shock |
| 5 | 250300039 | Ball Head Stud |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 708001743 | Seat Cable This part replaces 708000489. |
| 8 | 705007379 | Latch This part replaces 705005904. |
| 9 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 10 | 705002223 | Lug |
| 11 | 269501943 | Elastic Nut Housing M8 This part replaces 269501387. |
| 12 | 234082410 | Flat Washer 8 mm |
| 13 | 232180600 | Hex. Jam Nut M8 |
| 14 | 708000664 | Spacer |
| 15 | 219704354 | Trim 1000Mm Long |
| 17 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 18 | 250000488 | Torx Truss Screw M6 X 20 |
| 19 | 269500725 | M6 Nut Housing Ass'y |
| 20 | 250000778 | Hex. Flange Screw M6 X 60 This part replaces 250000397. |
