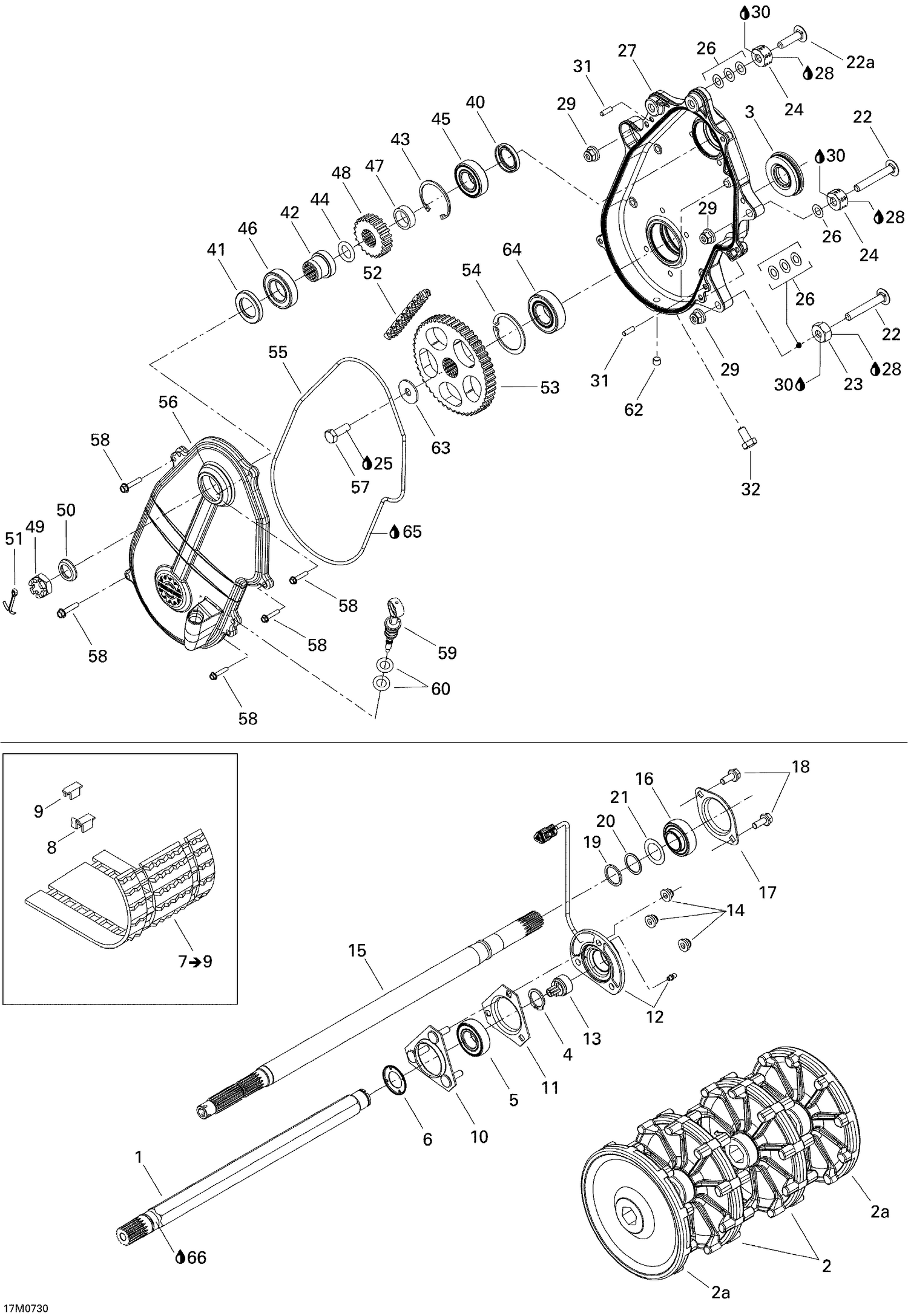

| Ref | Part Number | Description |
|---|
| 1 |
504152424 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504152198 |
SPROCKET, 10 TEETH - Call your local BRP dealership |
| 2a |
504152199 |
HALF SPROCKET, 10 TEETH - Call your local BRP dealership |
| 3 |
504151918 |
Oil Seal Ass'y |
| 4 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 5 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 6 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 8 |
415129528 |
Track Guide This part replaces 504152410. |
| 9 |
504152651 |
Cleat |
| 10 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 11 |
501025000 |
FLANGE - Call your local BRP dealership |
| 12 |
504152409 |
SENSOR - Call your local BRP dealership |
| 13 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
504152432 |
Counter Shaft |
| 16 |
415129555 |
Ball Bearing Kit This part replaces 504152535. |
| 17 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 18 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 19 |
417300252 |
Spacer |
| 20 |
417300265 |
Spacer |
| 21 |
504112000 |
Shim |
| 22 |
250000164 |
CARRIAGE BOLT M10 - Call your local BRP dealership |
| 22a |
250000165 |
CARRIAGE BOLT M10 - Call your local BRP dealership |
| 23 |
504083800 |
Spacer |
| 24 |
504152524 |
SPACER - Call your local BRP dealership |
| 25 |
293800005 |
Loctite 271, 10 ml |
| 26 |
504073700 |
WASHER - Call your local BRP dealership |
| 27 |
504152308 |
CHAIN CASE - Call your local BRP dealership |
| 28 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 29 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
732620001 |
CYLINDER PIN - Call your local BRP dealership |
| 32 |
207302044 |
Hex. Screw M10 X 20, Scotch Grip |
| 40 |
504152544 |
OIL SEAL - Call your local BRP dealership |
| 41 |
504152545 |
OIL SEAL - Call your local BRP dealership |
| 42 |
504152400 |
SPACER - Call your local BRP dealership |
| 43 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 44 |
293300109 |
O-RING - Call your local BRP dealership |
| 45 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 46 |
504152418 |
Ball Bearing |
| 47 |
504152398 |
SHIM - Call your local BRP dealership |
| 48 |
504152442 |
SPROCKET, 29 TEETH - Call your local BRP dealership |
| 49 |
250100079 |
HEX. CASTLE NUT 20 X 1.5 - Call your local BRP dealership |
| 50 |
504152523 |
Cap |
| 51 |
371006300 |
PIN COTTER - Call your local BRP dealership |
| 52 |
504152415 |
CHAIN, 82 LINKS - Call your local BRP dealership |
| 53 |
504152412 |
SPROCKET, 49 TEETH - Call your local BRP dealership |
| 54 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 55 |
504152299 |
O-RING - Call your local BRP dealership |
| 56 |
504152416 |
COVER - Call your local BRP dealership |
| 57 |
207103044 |
Hex. Screw M10 X 30 |
| 58 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 59 |
504152322 |
FILLER CAP ASSY. - Call your local BRP dealership |
| 60 |
414969400 |
O-RING - Call your local BRP dealership |
| 62 |
504151921 |
Plug 1/8”-27 |
| 63 |
506150000 |
Washer 10 mm |
| 64 |
504152005 |
Ball Bearing |
| 65 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
