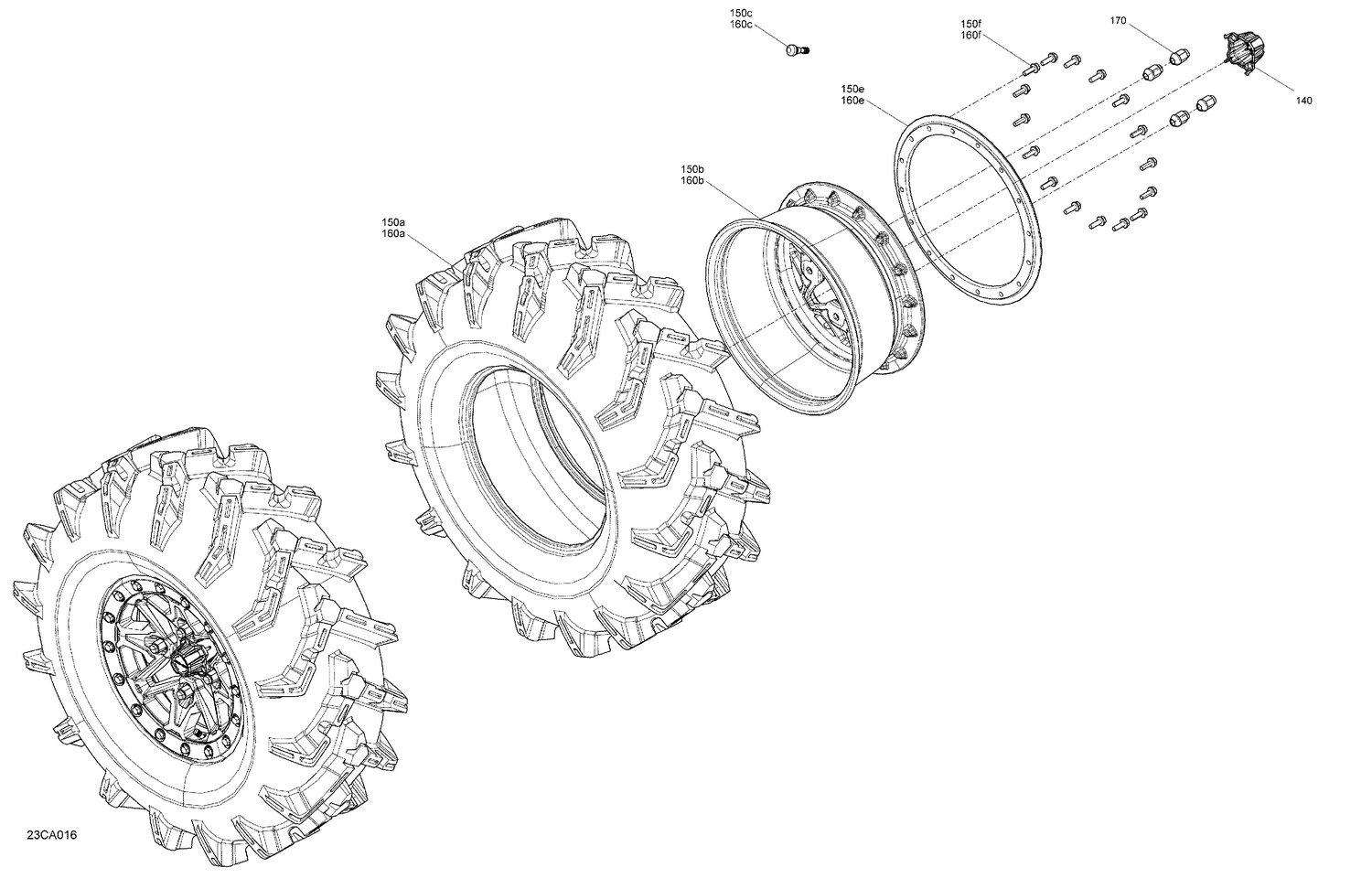

04- Drive - Rear Wheels - XMR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 140 | 705401841 | Wheel Cap |
| 150a | 705502913 | Tire 30X11R14 |
| 150b | 705402473 | Manta Green, 14" Rim |
| 150c | 705402595 | Tire Valve Ass'y |
| 150e | 705402472 | Disc Plate |
| 150f | 250000893 | Flange Screw M8 X 25 |
| 160a | 705502913 | Tire 30X11R14 |
| 160b | 705402473 | Manta Green, 14" Rim |
| 160c | 705402595 | Tire Valve Ass'y |
| 160e | 705402472 | Disc Plate |
| 160f | 250000893 | Flange Screw M8 X 25 |
