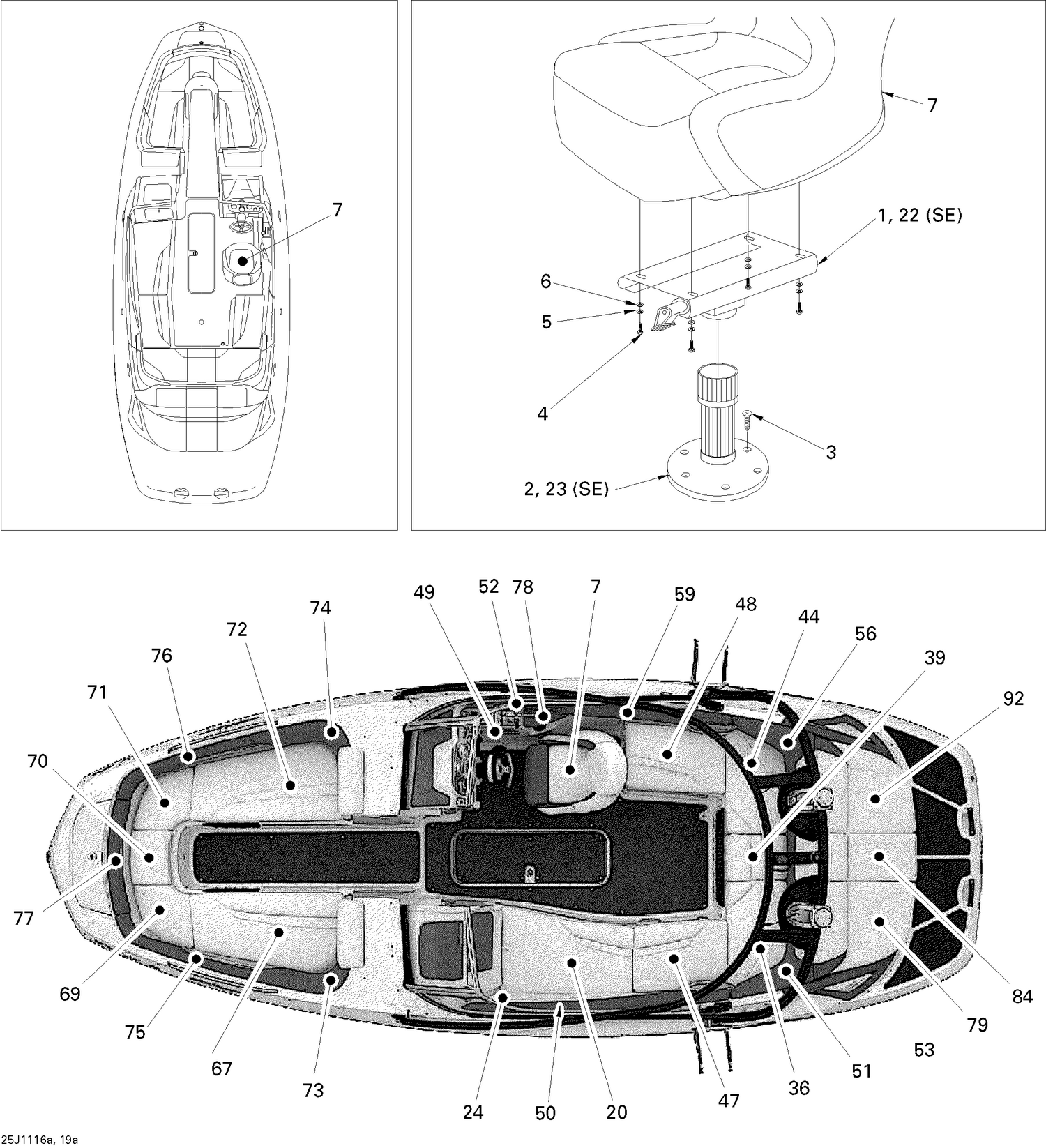

| Ref | Part Number | Description |
|---|
| 1 |
204613742 |
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership |
| 2 |
269001903 |
SEAT PEDESTAL - Call your local BRP dealership |
| 3 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 4 |
211000054 |
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership |
| 5 |
211200025 |
Lock Washer 1/4” |
| 6 |
234082600 |
Flat Washer 8 mm, Stainless |
| 7 |
269001964 |
Bucket Seat Ass'y |
| 20 |
269002674 |
CUSHION ASSY/SPOTTER - Call your local BRP dealership This part replaces 269001965. |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
XXX |
Not Available As Spare Parts |
| 24 |
269001966 |
BACKREST ASSY/GUNNEL-SPOTTER - Call your local BRP dealership |
| 36 |
269002678 |
CUSHION ASSY/REAR-PORT - Call your local BRP dealership This part replaces 269001968. |
| 39 |
269001969 |
REAR CENTER CUSHION - Call your local BRP dealership |
| 44 |
269001970 |
Rear Cushion, Starboard |
| 47 |
269001971 |
Rear Side Cushion, Port Side |
| 48 |
269001972 |
REAR SIDE CUSHION, STARBOARD SIDE - Call your local BRP dealership |
| 49 |
269002156 |
Lower Knee Pad |
| 50 |
269001973 |
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership |
| 51 |
269001974 |
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership |
| 52 |
269002160 |
SIDE FLAT BACKREST, STARBOARD - Call your local BRP dealership |
| 53 |
269001976 |
REAR CENTER BACKREST - Call your local BRP dealership |
| 56 |
269001977 |
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership |
| 59 |
269001978 |
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership |
| 67 |
269001979 |
CUSHION ASSY/BOW-PORT - Call your local BRP dealership |
| 69 |
269001980 |
FRONT BOW CUSHION, PORT SIDE - Call your local BRP dealership |
| 70 |
269001981 |
FRONT CENTER CUSHION ASS'Y - Call your local BRP dealership |
| 71 |
269001982 |
FRONT BOW CUSHION, STARBOARD SIDE - Call your local BRP dealership |
| 72 |
269001983 |
CUSHION ASSY/BOW-STBD - Call your local BRP dealership |
| 73 |
269001984 |
BOW SIDE BACKREST, PORT SIDE - Call your local BRP dealership |
| 74 |
269001985 |
BOW SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership |
| 75 |
269001986 |
BOW FRONT BACKREST, PORT SIDE - Call your local BRP dealership |
| 76 |
269001987 |
BOW FRONT BACKREST, STARBOARD SIDE - Call your local BRP dealership |
| 77 |
269001988 |
BOW CENTER BACKREST - Call your local BRP dealership |
| 78 |
269002161 |
ELBOWREST ASSY/STBD - Call your local BRP dealership |
| 79 |
269001990 |
Sundeck Cushion, Port Side |
| 84 |
269001991 |
SUNDECK CENTER CUSHION - Call your local BRP dealership |
