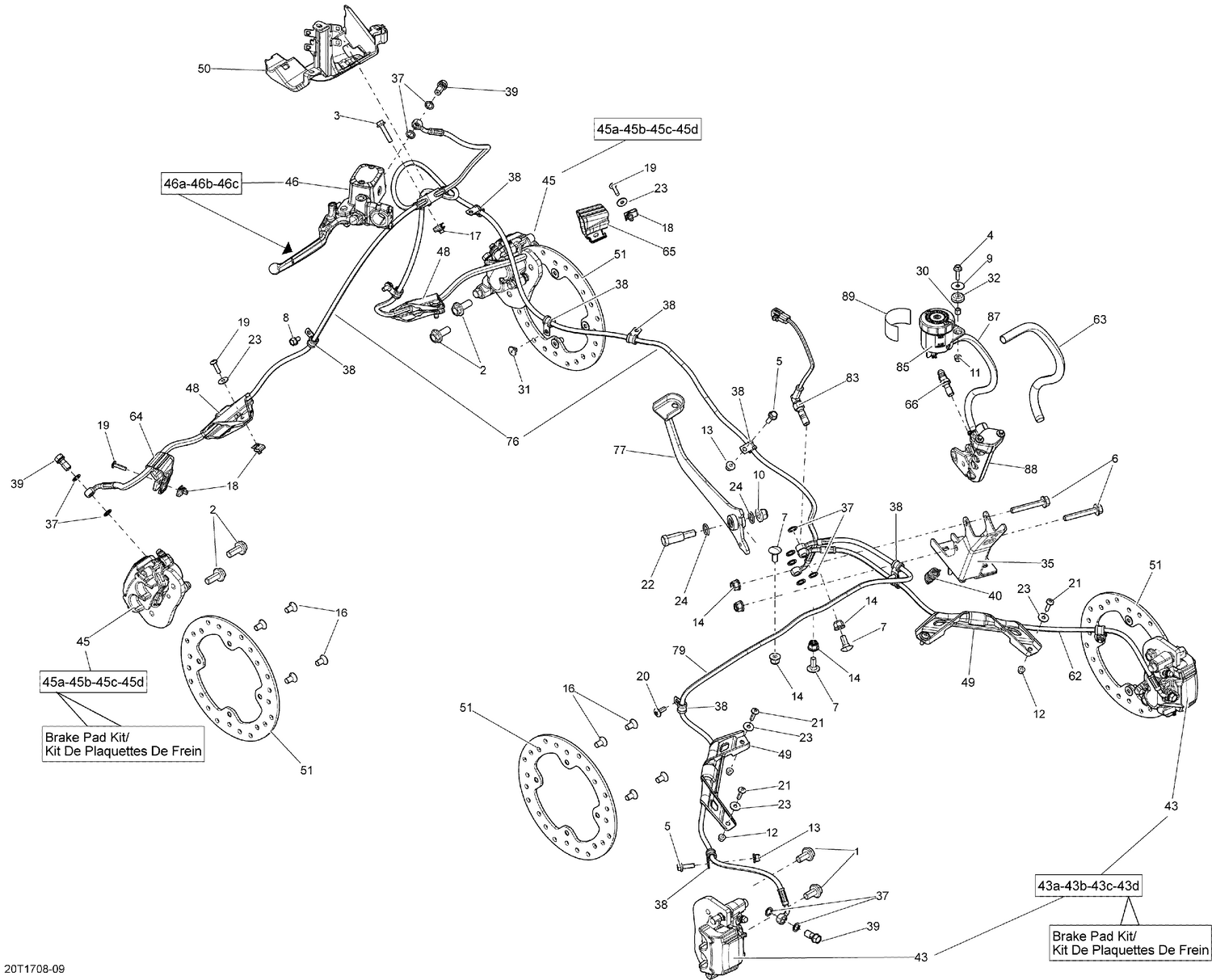

06- Hydraulic Brakes
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207502046 | Hex. Flange Screw M10 X 20 |
| 2 | 207502546 | Hex. Flange Screw M10 X 25 |
| 3 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 4 | 207652044 | Hex.Flange Screw M5 X 20 |
| 5 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 6 | 207685544 | Hex. Flange Screw M8 X 55 |
| 7 | 207782044 | Carriage Bolt, M8 X 20 |
| 8 | 210261040 | Hex. Flange Screw M6 X 10 |
| 9 | 224060201 | Flat Washer |
| 10 | 233201436 | Hex. Flange Elastic Nut M10 |
| 11 | 233251434 | Flange Elastic Nut M5 |
| 12 | 233251494 | Elastic Flange Nut M5 |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 233281414 | Hex. Flange Elastic Nut M8 |
| 16 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 17 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 18 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 19 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 20 | 250000755 | Torx Screw M6 X 16 This part replaces 250000261. |
| 21 | 250000792 | Torx Screw M5 X 20 This part replaces 250000465. |
| 22 | 250000513 | Shoulder Screw M10 |
| 23 | 250200025 | Washer M5 |
| 24 | 293300144 | O-Ring |
| 30 | 293900112 | Bushing |
| 31 | 390406500 | Pop Rivet 3/16" |
| 32 | 414036300 | Grommet |
| 35 | 705202000 | Brake Pedal Bracket |
| 37 | 705601628 | Copper Washer This part replaces 705600310. |
| 38 | 293650256 | Clamp This part replaces 715900250. |
| 39 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 40 | 705600792 | Brake Pedal Spring |
| 43 | 705600860 | LH Rear Caliper Ass'y |
| 43 | 705602190 | RH Rear Brake Caliper This part replaces 705600859. |
| 43a | 705601016 | Pin Set |
| 43b | 705601017 | Bleeding Screw |
| 43c | 705601018 | Retaining Spring |
| 43d | 705601014 | RH Organic Brake Pad Kit |
| 43d | 705601015 | LH Organic Brake Pad Kit |
| 45 | 705600861 | RH Front Caliper Ass'y |
| 45 | 705600862 | LH Front Caliper Ass'y |
| 45a | 705601014 | RH Organic Brake Pad Kit |
| 45a | 705601015 | LH Organic Brake Pad Kit |
| 45b | 705601016 | Pin Set |
| 45c | 705601017 | Bleeding Screw |
| 45d | 705601018 | Retaining Spring |
| 46 | 705601430 | LH Front Master Cylinder This part replaces 705600865. |
| 46a | 705601013 | Lever Set |
| 46b | 507032477 | Clamp And Screw Kit |
| 46c | 219800096 | Cap Set |
| 48 | 705601893 | Hose Guard This part replaces 705600962. |
| 49 | 705600963 | REAR HOSE PROTECTOR - Call your local BRP dealership |
| 50 | 705600983 | Front Hose Bracket |
| 51 | 705601997 | Disc Brake This part replaces 705600999. |
| 62 | 705601005 | RH Brake Line |
| 63 | 219704407 | Tubing 10 MM 1000MM Long |
| 64 | 705601048 | LH Hose Bracket |
| 65 | 705601049 | RH Hose Bracket |
| 66 | 705601051 | Bleeding Screw |
| 76 | 705601519 | LH RH Front Hose This part replaces 705601122. |
| 77 | 705602163 | Deep Black, Brake Pedal This part replaces 705601155. |
| 79 | 705601221 | BRAKE LINE REAR LH - Call your local BRP dealership |
| 83 | 705601251 | Brake Switch |
| 85 | 705601020 | Oil Tank |
| 87 | 705601019 | Oil Housing Hose |
| 88 | 705601776 | Rear Master Cylinder Ass'y This part replaces 705601274. |
