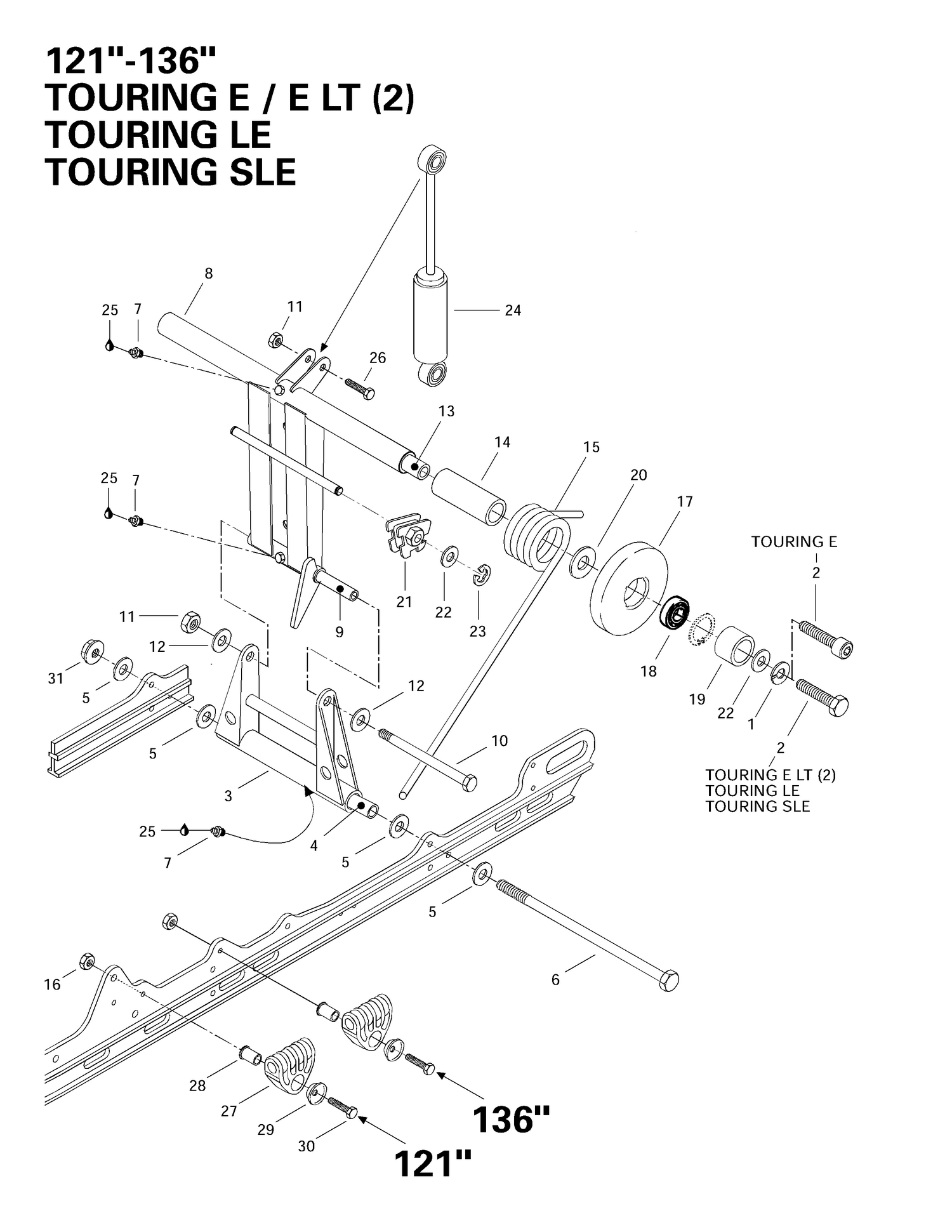

| Ref | Part Number | Description |
|---|
| 1 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 3 |
503169200 |
Pivot Welded Arm |
| 4 |
503154703 |
Lower Axle Pivot |
| 5 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 6 |
503192440 |
Bolt M8 X 248mm This part replaces 732601198. |
| 7 |
408200700 |
Grease Fitting |
| 8 |
503151200 |
Welded Rear Arm |
| 9 |
503144300 |
Upper Axle, Pivot Arm |
| 10 |
732601197 |
Bolt M8, Short |
| 11 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 12 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 13 |
503151400 |
Transversal Rear Axle |
| 14 |
572047800 |
Bushing |
| 16 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 18 |
405404600 |
Ball Bearing |
| 19 |
503154200 |
Spacer |
| 20 |
503144900 |
Washer |
| 21 |
572030800 |
LH ADJUST CAM - Call your local BRP dealership |
| 22 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 25 |
413701600 |
Lithium Grease, 400 gr |
| 26 |
207084044 |
Hex. Screw M8 X 40 This part replaces 222084065. |
| 27 |
503189657 |
Spring Support This part replaces 572056600. |
| 28 |
503152700 |
SPRING AXLE GUIDE - Call your local BRP dealership |
| 29 |
517041700 |
Retainer Washer |
| 30 |
207064544 |
Hex. Screw M6 X 45 This part replaces 222064565. |
| 572030900 |
Came |
De Réglage Droit - Appelez votre concessionnaire BRP local 572030900 |
| 572030900 |
RH |
ADJUST CAM - Call your local BRP dealership 572030900 |
