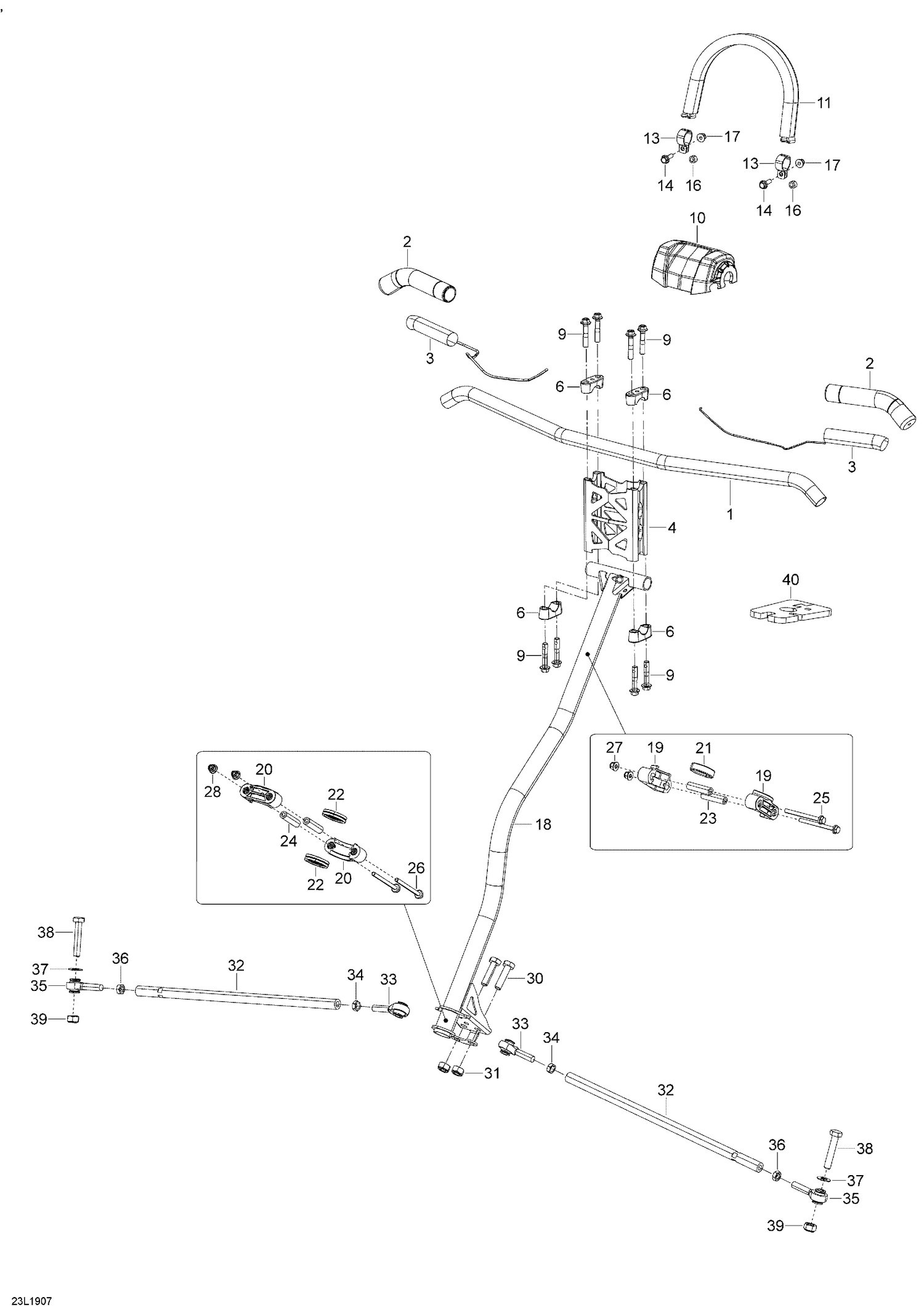

07- Steering - 59 Yeti - 600 ACE
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152762 | Handle Bar |
| 2 | 506152483 | Grip |
| 3 | 506152428 | Heated Film, 25W |
| 4 | 506152616 | Black Handlebar Extension (130mm) |
| 6 | 506152751 | Steering Support This part replaces 506152750. |
| 7 | 506152943 | RH Support |
| 8 | 506152942 | LH Support |
| 9 | 250000285 | Hex. Flanged Screw M8 x 40 |
| 10 | 506152649 | Steering Pad |
| 11 | 506152460 | Moulding Strap |
| 14 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 18 | 506152964 | Steering Column |
| 19 | 506152508 | Upper Half-Housing |
| 20 | 506152217 | Lower Half-Housing |
| 21 | 506152509 | Upper Anti-Vibration Gasket |
| 22 | 506152518 | Lower Vibration Ring |
| 23 | 506152297 | Housing Bushing |
| 24 | 506152388 | Lower Housing Bushing |
| 25 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 26 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 27 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 28 | 233281414 | Hex. Flange Elastic Nut M8 |
| 30 | 207004044 | Hex. Screw M10 X 40 |
| 31 | 232500416 | Elastic Stop Nut M10 |
| 32 | 506152436 | Tie Rod |
| 33 | 506152081 | LH Thread Ball Joint |
| 34 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 35 | 506152019 | RH Thread Ball Joint |
| 36 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 37 | 506152582 | Washer |
| 38 | 207004544 | Hex. Screw M10 X 45 |
| 39 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 41 | 506152389 | Stopper Plate |
