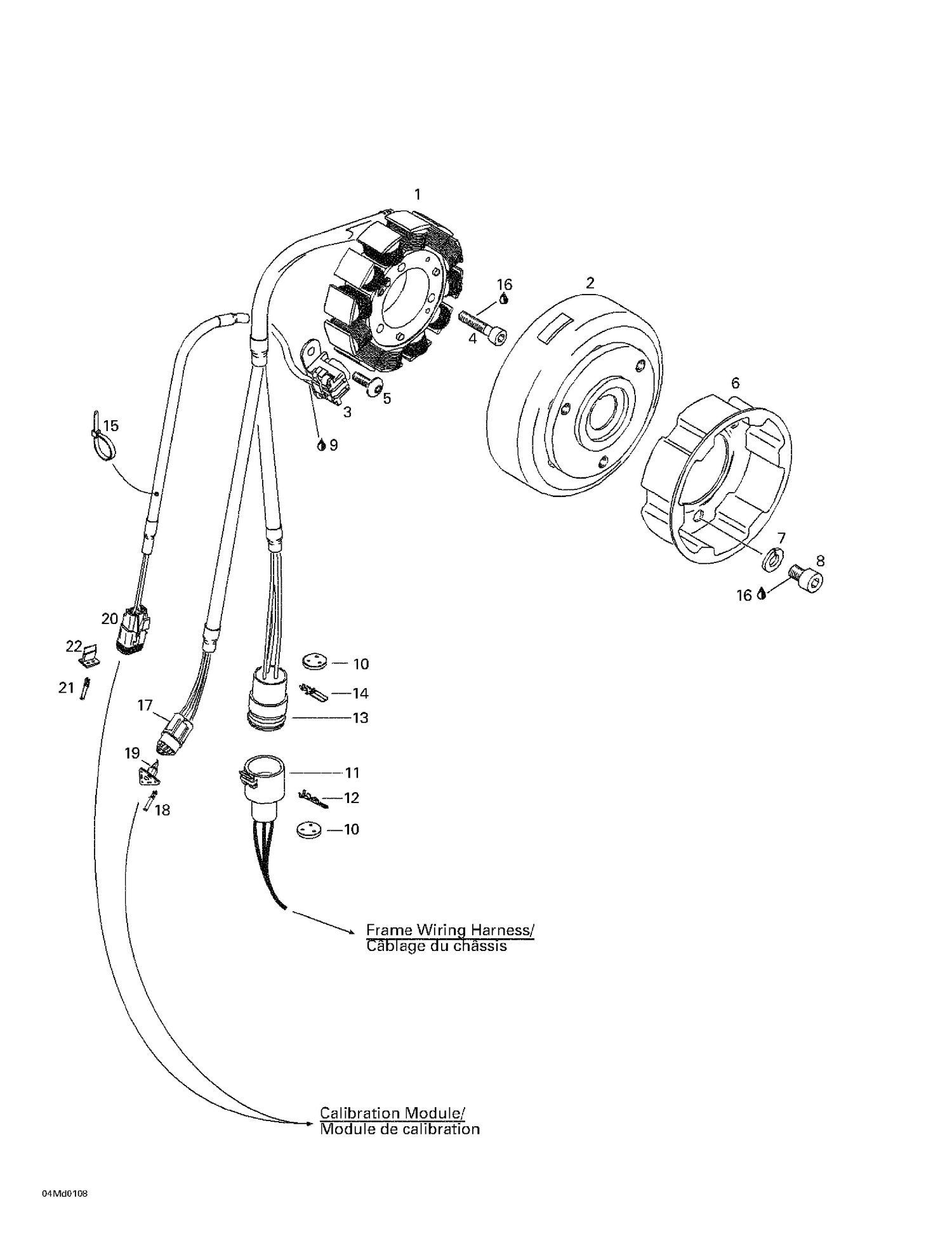

| Ref | Part Number | Description |
|---|
| 1 |
410922931 |
Startor Plate Ass'y |
| 2 |
410922926 |
Flywheel |
| 3 |
410922925 |
Pickup Ass'y |
| 4 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 5 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 6 |
420852590 |
Starting Pulley This part replaces 420852419. |
| 7 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 8 |
420841520 |
Socket Head Screw M8 X 12 |
| 9 |
Not |
Available As Spare Part - Sikaflex 255, 310 ml |
| 10 |
409208500 |
SEAL - Call your local BRP dealership |
| 11 |
409207900 |
MALE HOUSING - Call your local BRP dealership |
| 12 |
409011100 |
MALE TERMINAL - Call your local BRP dealership |
| 13 |
409208200 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 14 |
409011900 |
FEMALE TERMINAL - Call your local BRP dealership |
| 15 |
293750001 |
Tie Wrap 94 mm |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
Not |
Available As Spare Part - Female Terminal Housing (4 Circuits) |
| 18 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 19 |
Not |
Available As Spare Part - Female Lock (4 Circuits) |
| 20 |
409207300 |
Female Connector, 2 Circuits |
| 21 |
278000632 |
Female Terminal |
