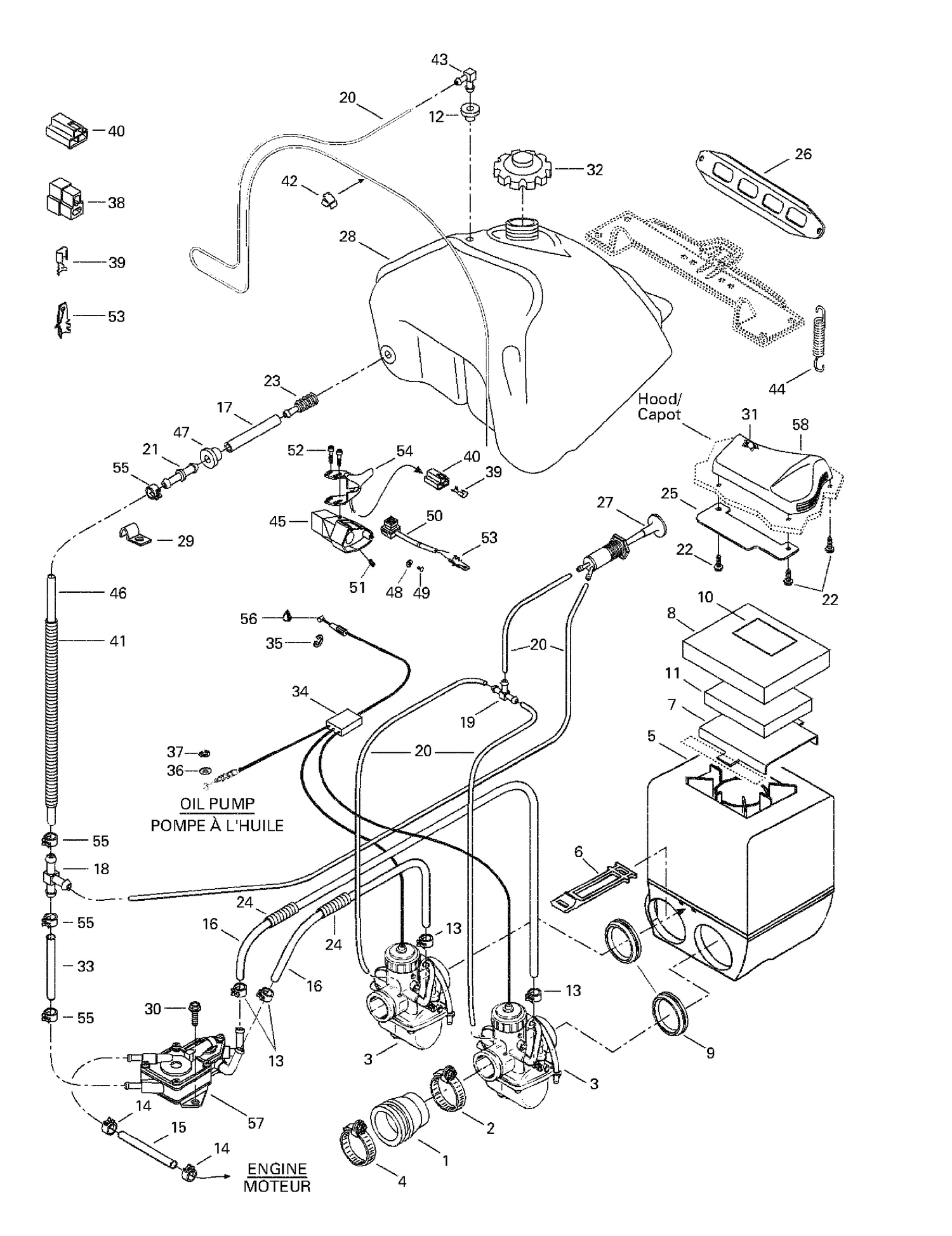

02- Fuel System
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570048100 | Adaptor Caburetor (38 mm) |
| 2 | 415038400 | Clamp (50 mm) |
| 4 | 414532800 | Collar |
| 6 | 570069700 | LATCH - Call your local BRP dealership This part replaces 570048800. |
| 7 | 517283900 | Grill Intake |
| 8 | 415105900 | Exterior Foam |
| 9 | 570048900 | Intake Adaptor VM 38 |
| 10 | 414161500 | Warning Decal |
| 11 | 415014800 | Air Filter |
| 12 | 709200285 | Grommet This part replaces 570135100. |
| 13 | 414420700 | Spring Clamp |
| 14 | 414415200 | Spring Clamp |
| 15 | 219704549 | Hose This part replaces 219704439. |
| 16 | 415079200 | Hose |
| 19 | 414222400 | T-Fitting |
| 20 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 22 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 24 | 219704407 | Tubing 10 MM 1000MM Long |
| 25 | 517298800 | Deflector |
| 26 | 517249200 | Fuel Tank Bracket |
| 27 | 415060500 | Primer |
| 28 | 572101700 | Fuel Tank |
| 29 | 415018200 | CLIP - Call your local BRP dealership |
| 30 | 732601120 | Hex. Screw M6 x 12 |
| 31 | 414972600 | Air Filter |
| 32 | 513033025 | Fuel Tank Cap This part replaces 572039600. |
| 34 | 414968801 | Throttle Cable and Housing (38 mm) |
| 35 | 414274500 | Circlip |
| 36 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 37 | 414753500 | Circlip |
| 38 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 39 | 561503200 | Female Terminal PACKARD |
| 40 | 409008500 | Female Terminal Housing (3 circuits) |
| 42 | 414227300 | Clip |
| 43 | 414814100 | Male Connector |
| 44 | 517182100 | SPRING - Call your local BRP dealership |
| 45 | 572028600 | Throttle Handle Housing |
| 48 | 391300700 | WASHER-FLAT - Call your local BRP dealership |
| 49 | 414473200 | Screw |
| 50 | 515177362 | Emergency Stop Switch This part replaces 414612700. |
| 51 | 414440800 | Socket Set Screw M8 X 10 |
| 52 | 732601143 | Flange Screw |
| 53 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 54 | 512059348 | Handle Ass'y This part replaces 572056900. |
| 56 | 293550004 | Dielectric Grease, 150 g This part replaces 413701700. |
