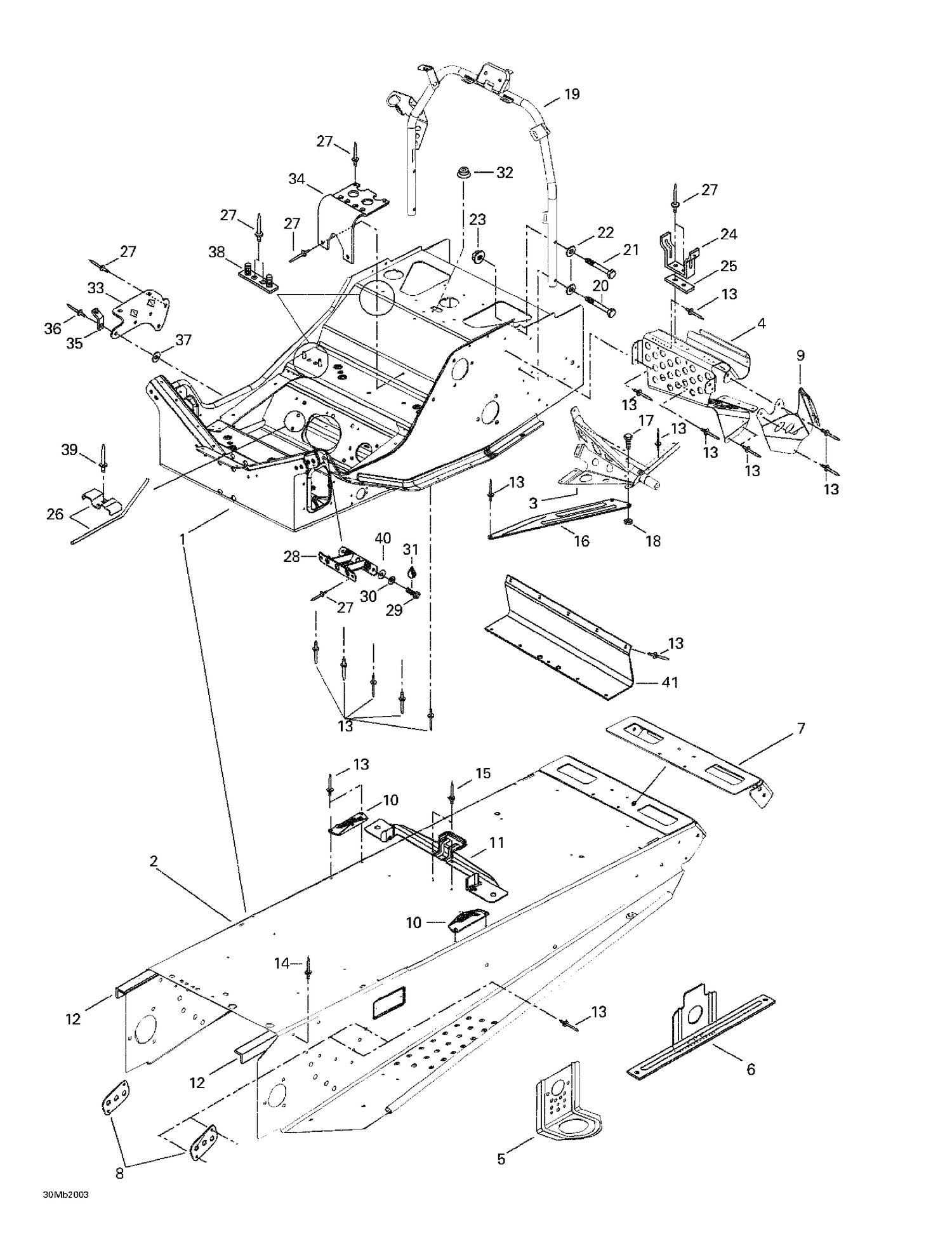

| Ref | Part Number | Description |
|---|
| 2 |
518322114 |
Forming Frame (Tunnel) |
| 3 |
518320506 |
RH Footrest Support |
| 4 |
518318933 |
RH Front Footrest |
| 5 |
518321495 |
Front Bracket |
| 6 |
518316716 |
RH Rear Bracket |
| 7 |
518321619 |
Rear Cap |
| 8 |
518201321 |
REINFORCEMENT PLATE - Call your local BRP dealership |
| 9 |
518308715 |
Upper Plate R.H |
| 10 |
517266900 |
RH Tank Bracket |
| 11 |
518317506 |
Seat Bracket |
| 12 |
518316769 |
RH Frame Reinforcement |
| 13 |
390402200 |
Pop Rivet 3/16" |
| 14 |
390402300 |
Pop Rivet 3/16" |
| 15 |
390402400 |
Pop Rivet 3/16" |
| 16 |
518321958 |
RH Reinforcement Plate |
| 17 |
207151644 |
Hex. Screw M5 X 16 |
| 18 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 19 |
518321428 |
Handle Steering Support |
| 20 |
207064044 |
Hex. Screw M6 X 40 |
| 21 |
207063544 |
Hex. Flange Screw M6 X 35 |
| 22 |
234061410 |
Flat Washer 6 mm |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
518202100 |
Belt Guard Bracket |
| 25 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 26 |
517276100 |
Guide Rope |
| 27 |
390402200 |
Pop Rivet 3/16" |
| 28 |
518304741 |
Reinf. Plate |
| 29 |
207182044 |
Hex. Screw M8 X 20 |
| 30 |
234181401 |
Lock Washer 8 mm |
| 31 |
293800005 |
Loctite 271, 10 ml |
| 32 |
414859400 |
CAP - Call your local BRP dealership |
| 34 |
518310400 |
AIR INTAKE SUPPORT - Call your local BRP dealership |
| 38 |
518315300 |
Support Plate |
| 39 |
Not |
Available As Spare Part - Rivet Avex |
| 40 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 517267000 |
LH |
Tank Bracket 517267000 |
| 518308714 |
Upper |
Plate L.H 518308714 |
| 518316715 |
Attache |
Arrière GA 518316715 |
| 518316715 |
LH |
Rear Bracket 518316715 |
| 518316768 |
LH |
Frame Reinforcement 518316768 |
| 518316768 |
Renfort |
De Tunnel GA 518316768 |
| 518318934 |
LH |
Front Footrest 518318934 |
| 518318934 |
Repose-Pied |
Avant GA 518318934 |
| 518320507 |
LH |
SOOTREST SUPPORT - Call your local BRP dealership 518320507 |
| 518320507 |
Support |
Repose-Pied GA - Appelez votre concessionnaire BRP local 518320507 |
| 518321959 |
LH |
Reinforcement. Plate 518321959 |
