| Ref | Part Number | Description |
|---|
| 1 |
0122772 |
LIFTING LEVER |
| 2 |
0320248 |
RONDELLE, écrou |
| 4 |
0122770 |
SCREW, Lifting lever |
| 5 |
0313849 |
SCREW, Stop lin to stern brkt. |
| 6 |
0318290 |
SPRING, Reverse lock |
| 8 |
0122013 |
LAB BOLT |
| 9 |
0121837 |
BUSHING, Upper pivot pin |
| 10 |
0121839 |
BUSHING Upper pivot pin |
| 11 |
0121840 |
PIN, Pivot, upper |
| 17 |
0122771 |
LOWER SUPPORT BRKT |
| 18 |
0121836 |
BUSHING, Lower pivot pin |
| 19 |
0121838 |
PIN, Lower pivot |
| 20 |
0305282 |
BOLT, Bowl & suction piece This part replaces 0301218. |
| 22 |
0307708 |
RONDELLE GROWER |
| 25 |
0900696 |
WASHER |
| 27 |
0311847 |
PLATE, Switch |
| 28 |
0172539 |
CABLE ASSEMBLY |
| 33 |
0825886 |
TERMINAL |
| 36 |
0173946 |
HYDRAULIC PUMP |
| 37 |
0174231 |
PISTON ROD & END HEAD ASSY. This part replaces 0173262. |
| 38 |
0123081 |
O RING |
| 40 |
0173946 |
HYDRAULIC PUMP This part replaces 0173947. |
| 43 |
0173945 |
VALVE BODY |
| 44 |
0124097 |
PLUG |
| 55 |
0312972 |
WASHER, Alternator brkt |
| 0172588 |
0173944 |
MOTOR ASSEMBLY This part replaces 0172588. |
| 0172833 |
0172833 |

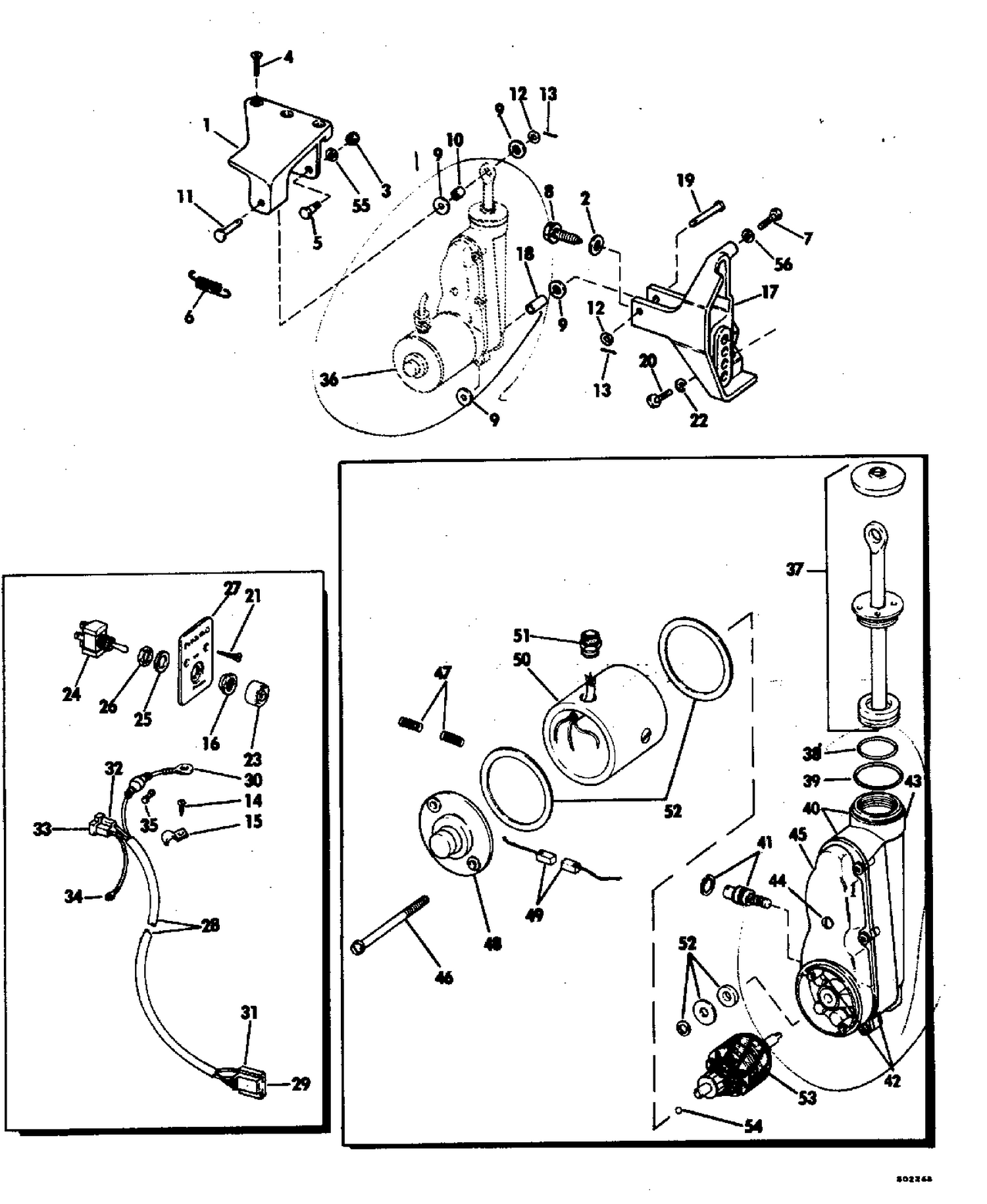

POWER TILT KIT |
| 0173944 |
0173944 |
MOTOR ASSEMBLY |
