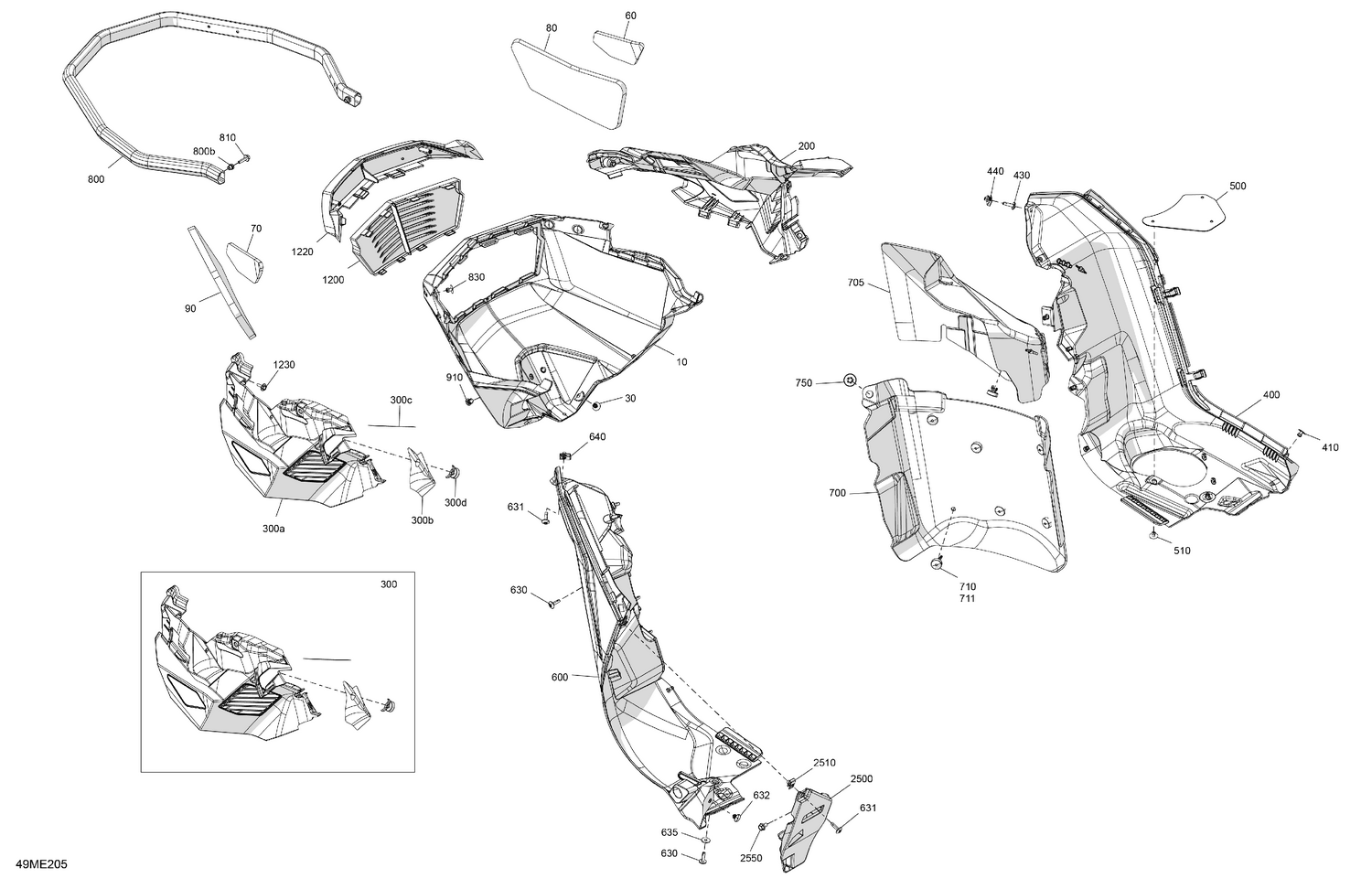

| Ref | Part Number | Description |
|---|
| 10 |
502008525 |
Deep Black, Front Bottom Pan |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 60 |
502008308 |
RH Front Central Bottom Pan Foam |
| 70 |
502008309 |
LH Front Central Bottom Pan Foam |
| 80 |
502008355 |
Bonded Foam |
| 90 |
502008356 |
Bonded Foam |
| 200 |
502008262 |
Deep Black, RH Bottom Pan Cap |
| 300a |
502008263 |
Deep Black, LH Bottom Pan Cap |
| 300b |
502008487 |
LH Front Heat Shield |
| 300c |
502008575 |
LH Front Heat Shield |
| 300d |
502008610 |
Stopper |
| 400 |
502008759 |
Deep Black, RH Bottom Pan |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 500 |
502008690 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 600 |
502008812 |
Deep Black, LH Bottom Pan This part replaces 502008236. |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250000586 |
Torx Truss M5 X 20 |
| 632 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 700 |
502008754 |
Acoustic Panel |
| 705 |
502008254 |
Acoustic Panel |
| 710 |
502008752 |
Stopper |
| 711 |
502008752 |
Stopper |
| 750 |
508000853 |
Push Nut |
| 800b |
293450268 |
Insert M5 X 0.8 |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 910 |
518321954 |
Panel Fastener |
| 1200 |
502008245 |
Lower Prefilter Grille |
| 1220 |
502008737 |
Upper Grille Prefilter |
| 1230 |
250000725 |
Screw M4 X 16 |
| 2500 |
502008357 |
LH Lower Bottom Pan Support |
| 2510 |
250000958 |
Panel Nut M5 X 0.8 |
