Parts Catalog

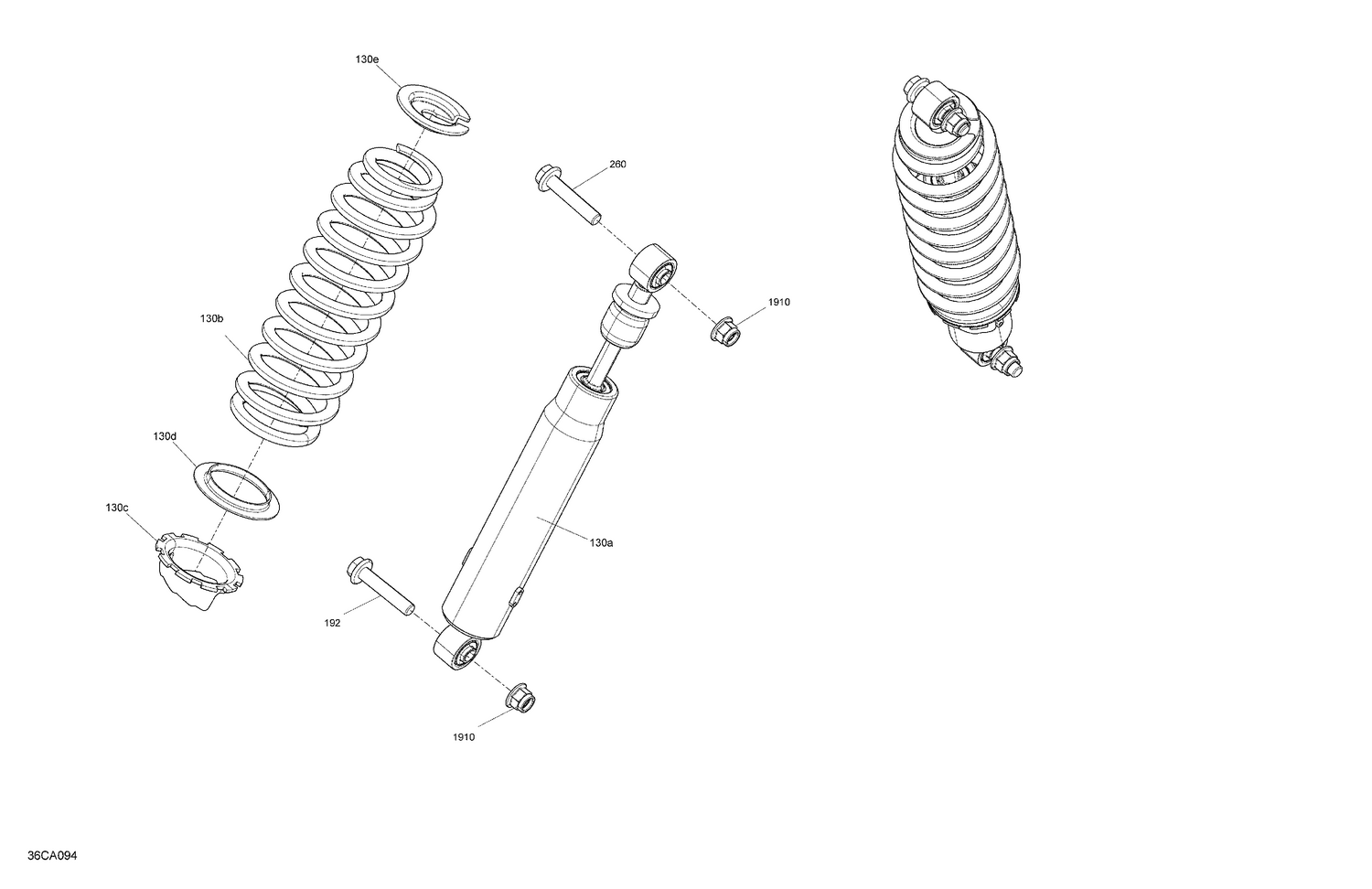

05- Suspension - Front Shocks - BASE

Parts (7)

Ref	Part Number	Description
130a	706202835	Front Shock
130b	706203173	Can-Am Red Front Spring
130c	706000910	Adjustment Ring
130d	706000911	Protector Ring
130e	706001894	Spring Cup
192	250000857	Flange Screw M12 X 60
260	250000857	Flange Screw M12 X 60
