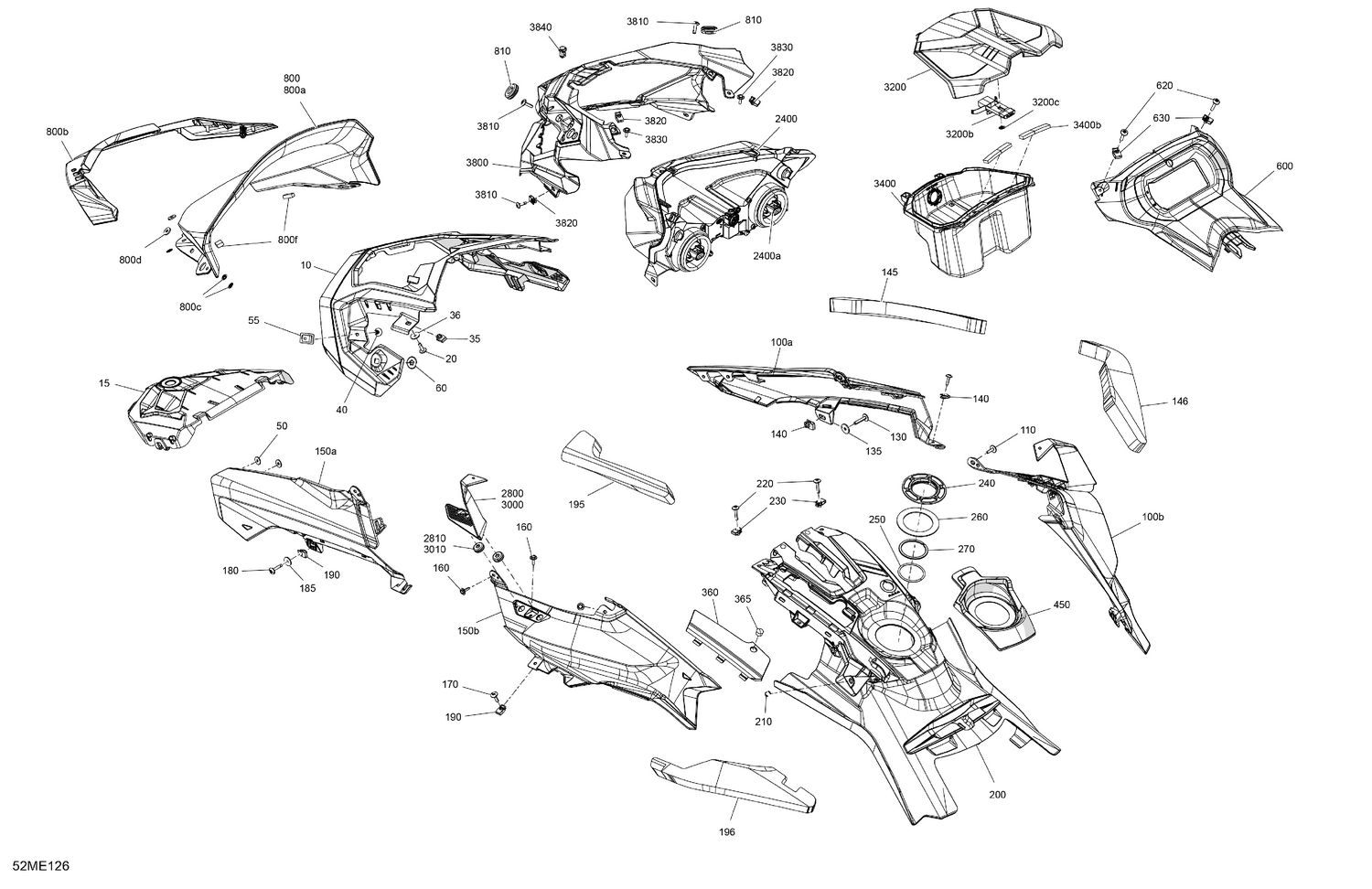

07- Body - Hood — Parts Catalog

Parts (58)

Ref	Part Number	Description
10	517306284	Deep Black, Center Hood
15	517307593	Central Hood Grille
20	250000528	Torx Screw M5 X 20
35	250000958	Panel Nut M5 X 0.8
36	250200166	Washer
40	293150292	Black, Pop Rivet 3/16 X ,550
50	517124300	Washer
55	517305109	Rivet Plate
60	508000853	Push Nut
100a	517307307	Deep Black, RH Front Hood
100b	517307308	Deep Black, RH Rear Hood
110	250000725	Screw M4 X 16
130	250000587	Torx Screw M5 X 26
135	250200166	Washer
140	250000958	Panel Nut M5 X 0.8
145	517305763	RH Front Hood Foam
146	517306001	RH Hood Foam
150a	517307310	LH Front Hood
150b	517307311	LH Rear Hood
160	250000725	Screw M4 X 16
170	250000528	Torx Screw M5 X 20
180	250000587	Torx Screw M5 X 26
185	250200166	Washer
190	250000958	Panel Nut M5 X 0.8
195	517305764	LH Front Hood Foam
196	517306002	LH Hood Foam
200	517307687	Deep Black, Rear Console
210	233251434	Flange Elastic Nut M5
220	250000587	Torx Screw M5 X 26
230	250000958	Panel Nut M5 X 0.8
240	517309507	Round Slotted Nut
250	706002839	O-Ring
260	517309451	Joint
270	517309382	Support
360	517306582	LH Front Console
365	572051500	Cap
450	517309349	Rear Console Short
600	517307675	Gauge Support
620	250000586	Torx Truss M5 X 20
630	250000958	Panel Nut M5 X 0.8
800a	517306423	Windshield 360
800b	517305749	Deep Black, Windshield Support
800c	732610072	Push Nut
800d	250200024	Rubber Washer 5 mm
800f	219704476	Gasket, Neoprene 2000Mm Long
810	517303756	Grommet
2400a	415130081	Bulb
2800	517305776	RH Deflector Black 63% Light Transm.
2810	517307161	Grommet
3000	517305777	Deflector LH, Black 63% Light Transm.
3010	517307161	Grommet
3200b	517305779	Latch
3200c	732610072	Push Nut
3400b	517305157	Seal Joint
3800	517306301	Headlamp Fairing
3810	250000528	Torx Screw M5 X 20
3820	250000958	Panel Nut M5 X 0.8
3830	250000725	Screw M4 X 16
