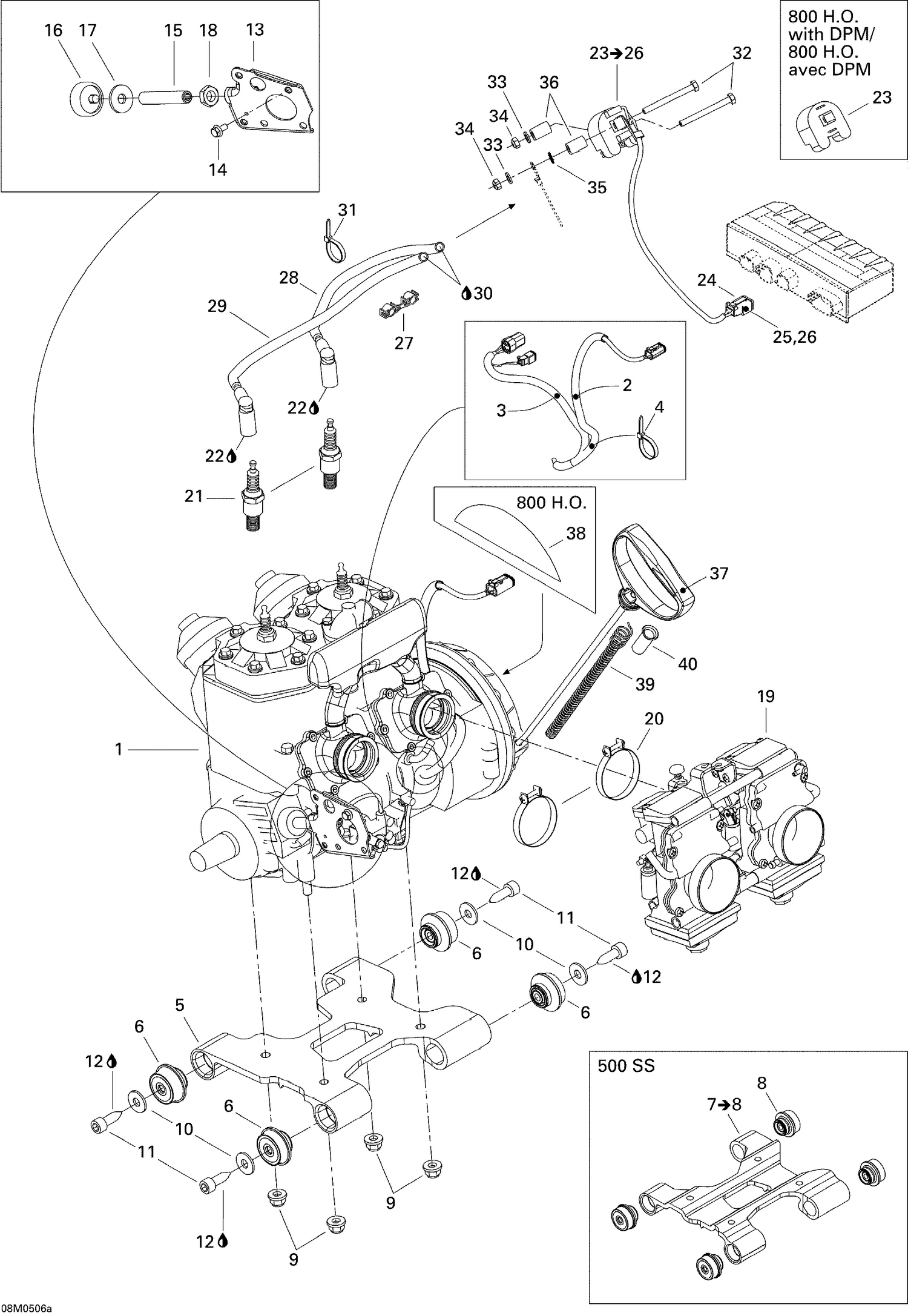

01- Engine And Engine Support, GSX 500SS

01- Engine And Engine Support, GSX 500SS

Parts (34)

RefPart NumberDescription
2 219704400 Was 409901800 Tubing (13 mm)
3 219704407 Tubing 10 MM 1000MM Long
4 293750002 Tie Wrap 142 mm
5 XXX Not Available As Spare Parts
6 XXX Not Available As Spare Parts
9 233201414 Hex. Flange Elastic Nut M10
10 250200014 Flat Washer M10 This part replaces 506151251.
11 250000094 Screw M10 X 30
12 413703400 Sealant LOCTITE 222MS - Call your local BRP dealership
13 512059840 PLATE - Call your local BRP dealership
14 207561244 Hex. Flange Screw M6 X 12, Scotch Grip
15 250500007 STOPPER SCREW - Call your local BRP dealership
16 512059610 STOPPER - Call your local BRP dealership
17 512059057 WASHER - Call your local BRP dealership
18 232170411 Hex. Jam Nut M14
20 512059835 Gemi Clamp
21 512059552 Spark Plug NGK BR9ECS-5
22 219704453 Was 293550004 Dielectric Grease, 150 g
24 515175670 Female Terminal Housing, 2 Circuits
25 515175707 Female Lock, 2 Circuits
26 278000632 Female Terminal
27 410914600 Plastic Clip, Spark Plug Wire
28 512059695 CABLE ASSY, 300 MM - Call your local BRP dealership
29 512059696 Cable Ass’y, 375 mm
30 219704453 Was 293550004 Dielectric Grease, 150 g
31 414115200 Tie-Rap 180 mm
32 207066044 Hex. Screw M6 X 60
33 234061410 Flat Washer 6 mm
34 232561414 Elastic Stop Nut M6
35 394001900 EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership
36 517203200 Spacer
37 572084400 Starter Grip
38 XXX Not Available As Spare Parts
39 512059535 ROPE GUIDE - Call your local BRP dealership
