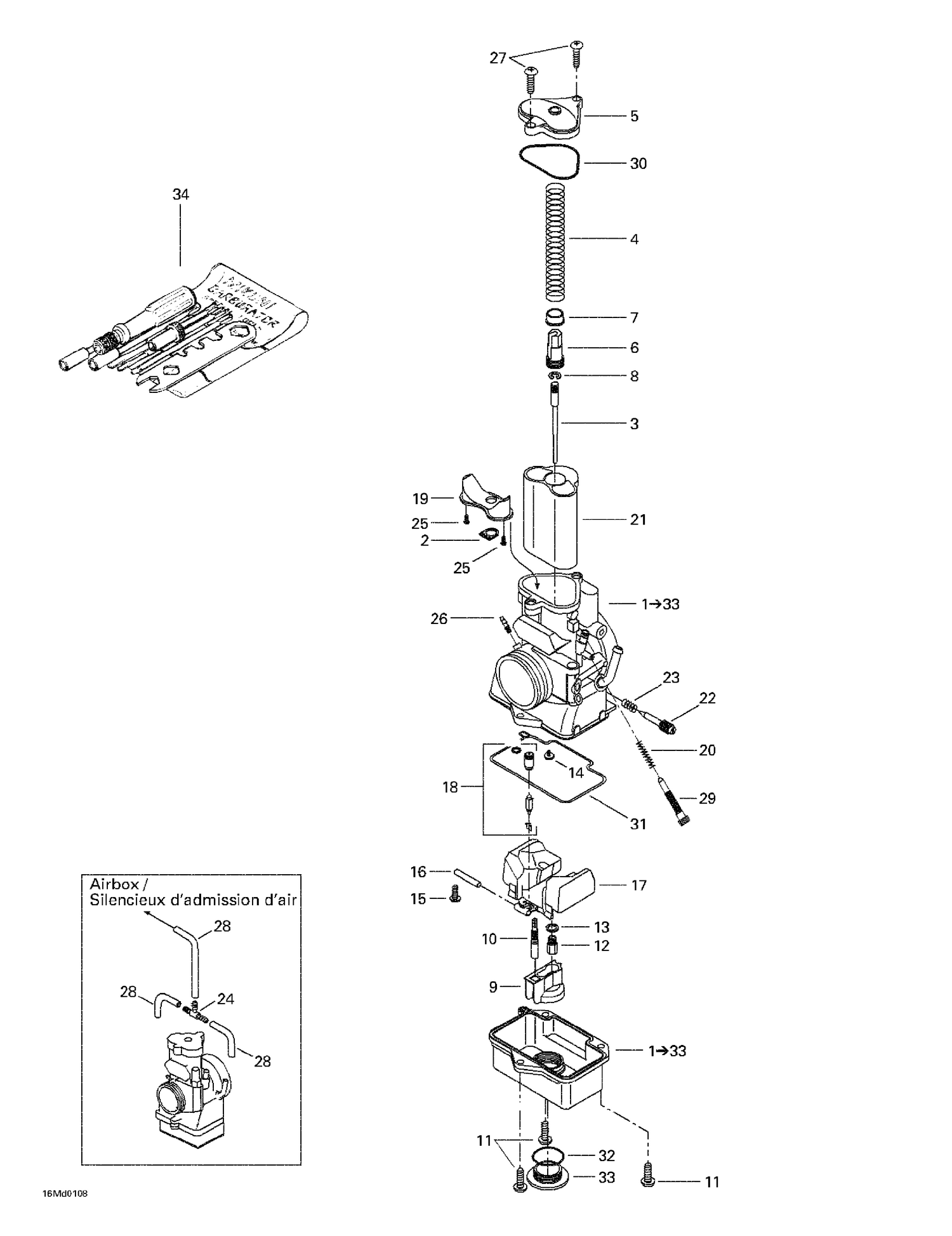

| Ref | Part Number | Description |
|---|
| 2 |
404161865 |
Packing |
| 3 |
404161872 |
Needle jet J8-6FIY04-59 |
| 4 |
404161864 |
SPRING - Call your local BRP dealership |
| 5 |
404161857 |
TOP CAP - Call your local BRP dealership |
| 6 |
404161856 |
GUIDE HOLDER - Call your local BRP dealership |
| 7 |
404161863 |
RING - Call your local BRP dealership |
| 8 |
404152200 |
E-Ring |
| 9 |
404161855 |
HOLDER - Call your local BRP dealership |
| 10 |
404161870 |
PILOT JET 25 - Call your local BRP dealership |
| 11 |
404161848 |
SCREW - Call your local BRP dealership |
| 12 |
404106000 |
Main Jet 350 |
| 13 |
404161862 |
WASHER - Call your local BRP dealership |
| 14 |
404161861 |
SCREW - Call your local BRP dealership |
| 15 |
404138600 |
SCREW - Call your local BRP dealership |
| 16 |
404161860 |
PIN - Call your local BRP dealership |
| 17 |
404161859 |
FLOAT - Call your local BRP dealership |
| 18 |
404161868 |
Needle Valve 1.5 |
| 19 |
404161974 |
VENTURI - Call your local BRP dealership |
| 20 |
404161849 |
SPRING - Call your local BRP dealership |
| 21 |
404161867 |
PISTON VALVE 4.0 - Call your local BRP dealership |
| 22 |
404161866 |
ADJUSTER - Call your local BRP dealership |
| 23 |
404132400 |
SPRING - Call your local BRP dealership |
| 24 |
270500347 |
T Fitting |
| 25 |
404161852 |
SCREW - Call your local BRP dealership |
| 26 |
404153400 |
Nipple |
| 27 |
404138700 |
Screw |
| 28 |
404161821 |
HOSE - Call your local BRP dealership |
| 29 |
404161850 |
ADJUSTER - Call your local BRP dealership |
| 30 |
Not |
Available As Spare Part - O-Ring |
| 31 |
Not |
Available As Spare Part - O-Ring |
| 32 |
Not |
Available As Spare Part - O-Ring |
| 33 |
404107400 |
Drain Plug Screw |
| 403138694 |
Carburateur |
TMX-34-13 (MAG) 403138694 |
| 403138694 |
Carburator |
TMX-34-13 (MAG) 403138694 |
| 404104900 |
GICLEUR |
MJ 340 404104900 |
| 404104900 |
Main |
Jet MJ 340 (MAG) 404104900 |
