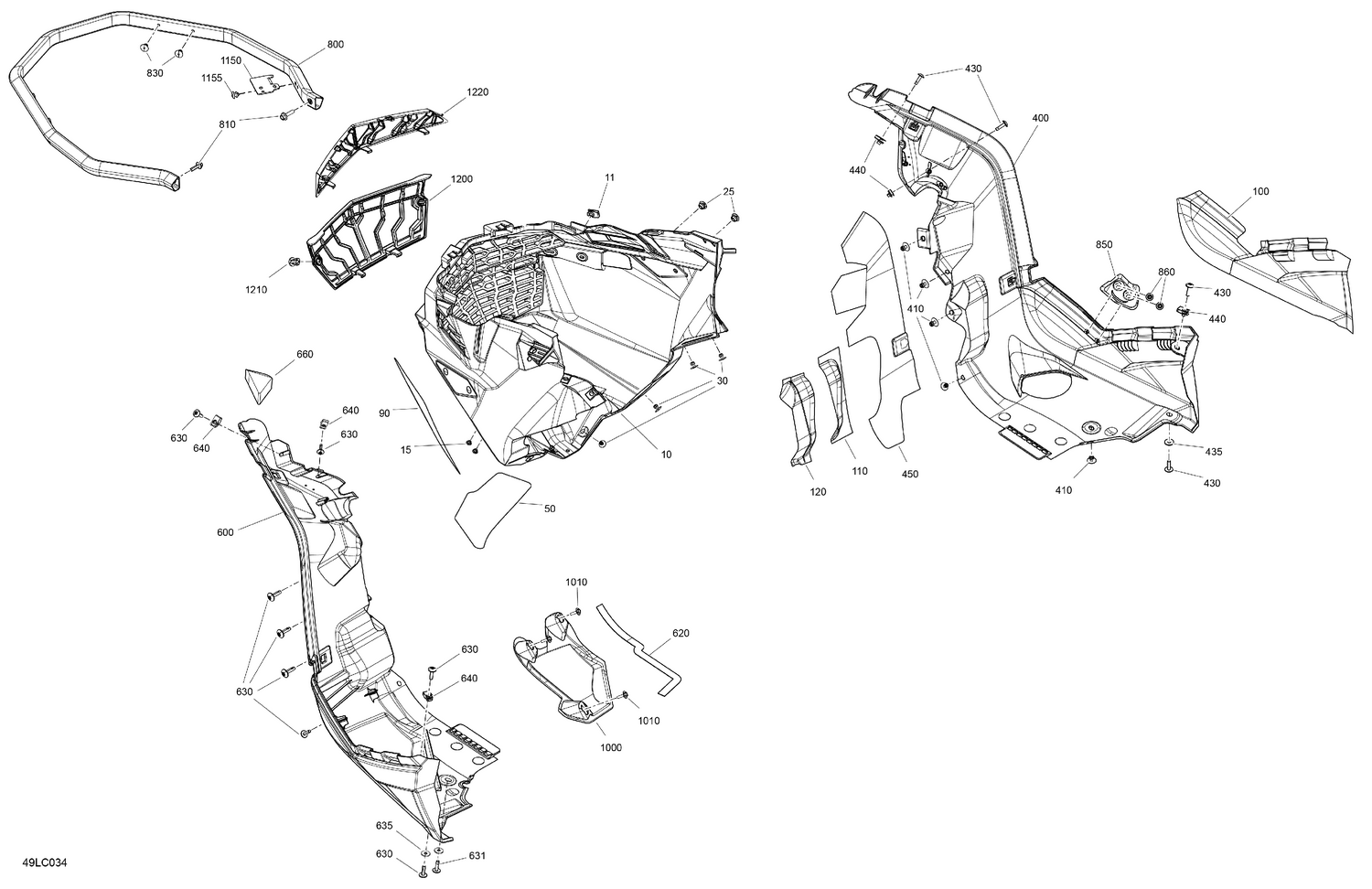

07- Body - Bottom Pan
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502008142 | Front Bottom Pan |
| 11 | 250000958 | Panel Nut M5 X 0.8 |
| 15 | 293730047 | Black, Dart 8 mm |
| 25 | 293730047 | Black, Dart 8 mm |
| 30 | 293150104 | Pop Rivet 3/16 |
| 50 | 508001087 | Heat Shield |
| 90 | 508001088 | Heat Shield |
| 100 | 508000911 | Heat Shield |
| 110 | 44110 | Aluminum Foil |
| 120 | 44110 | Aluminum Foil |
| 400 | 502008111 | RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16 |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 435 | 250200025 | Washer M5 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 450 | 508001061 | RH Bottom Pan Heat Shield |
| 600 | 502008117 | LH Bottom Pan |
| 620 | 293250427 | Neoprene Seal |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 631 | 250000586 | Torx Truss M5 X 20 |
| 635 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 660 | 502008409 | Foam |
| 800 | 502007460 | Black, Front Bumper |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150104 | Pop Rivet 3/16 |
| 850 | 502007844 | Rubber Protector |
| 860 | 732610072 | Push Nut |
| 1000 | 502007670 | Protection Plate |
| 1010 | 250000725 | Screw M4 X 16 |
| 1150 | 502008410 | Bracket |
| 1155 | 293150174 | Hemlock Rivet, 6.5 mm |
| 1200 | XXX | Not Available As Spare Parts |
| 1210 | 293150230 | Tuflok Plastic Rivet |
