Parts Catalog

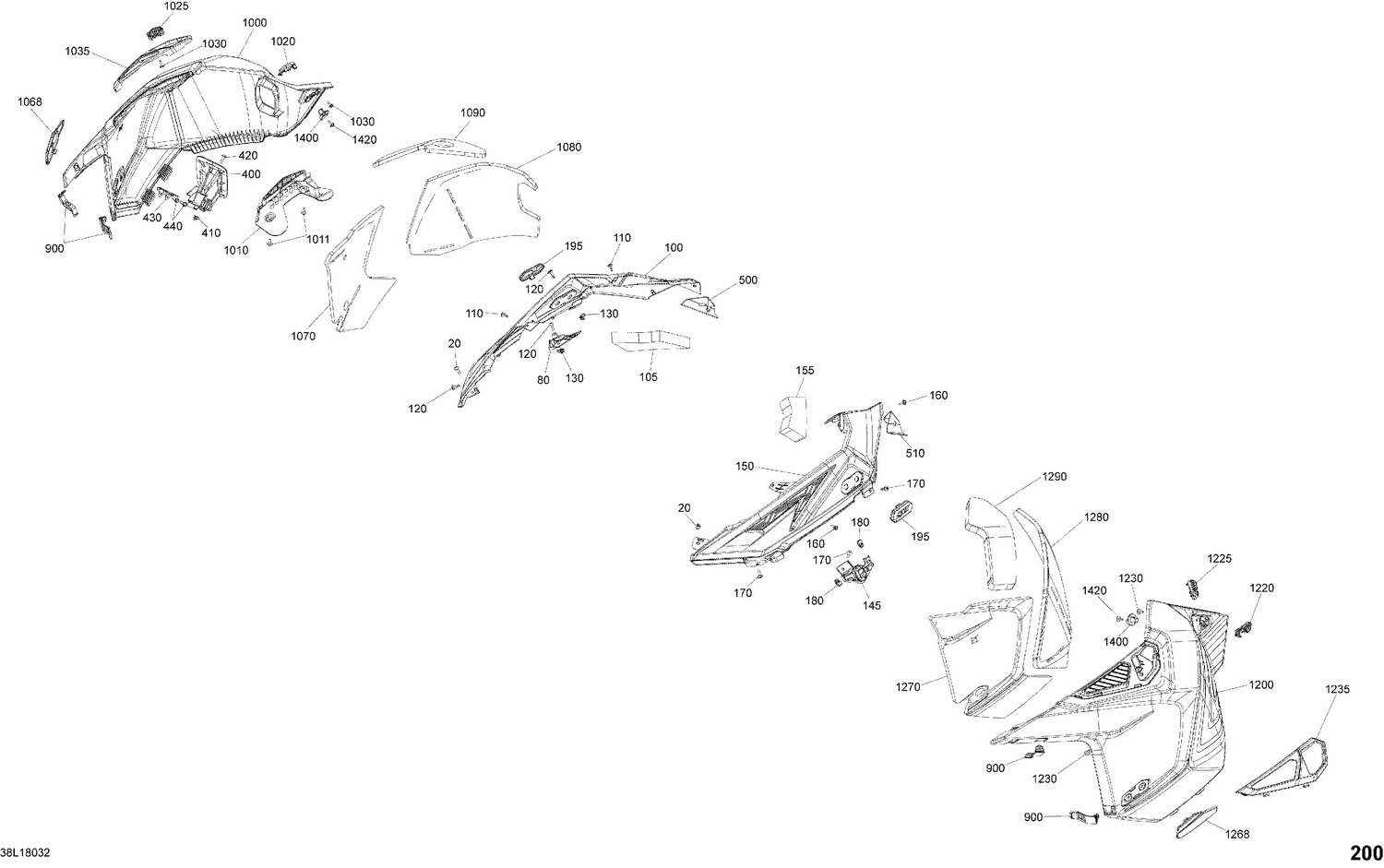

09- Hood - Side Section

Parts (43)

Ref	Part Number	Description
20	250000528	Torx Screw M5 X 20
80	517306450	RH Knob Part
100	517306067	RH Upper Side Panel
105	517308487	RH Upper Side Panel Foam This part replaces 517306695.
110	250000725	Screw M4 X 16
120	250000528	Torx Screw M5 X 20
130	250000958	Panel Nut M5 X 0.8
145	517306451	LH Knob Part
150	517306069	LH Upper Side Panel
155	517308488	LH Upper Side Panel Foam This part replaces 517306696.
160	250000725	Screw M4 X 16
170	250000528	Torx Screw M5 X 20
180	250000958	Panel Nut M5 X 0.8
195	517306437	Upper Side Panel Cap
400	517306759	RH Console This part replaces 517305765.
410	250000958	Panel Nut M5 X 0.8
420	250000528	Torx Screw M5 X 20
430	517306315	Rope Guide
440	210261650	Hex. Flanged Screw M6 X 16
500	517306688	RH Cover Plate
510	517306689	LH Cover Plate
900	517306434	Rubber Latch
1000	517306073	RH Side Panel
1010	517306234	Grill
1011	250000725	Screw M4 X 16
1020	517306320	RH Rear Latch
1025	517305773	RH Rear Latch
1030	250000725	Screw M4 X 16
1035	517306323	RH Trim
1068	517308664	RH Side Panel Cap This part replaces 517306435.
1070	517308464	RH Central Side Panel Foam This part replaces 517306246.
1080	517308465	RH Rear Side Panel Foam This part replaces 517306250.
1090	517308466	RH Upper Side Panel Foam This part replaces 517306251.
1200	517306075	LH Side Panel
1220	517306325	LH Rear Latch
1225	517305774	LH Rear Latch
1230	250000725	Screw M4 X 16
1235	517306327	LH Trim
1268	517306436	LH Side Panel Cap
1270	517306247	LH Side Panel Central Foam
1280	517308468	LH Rear Side Panel Foam This part replaces 517306252.
1290	517308469	LH Upper Side Panel Foam This part replaces 517306253.
1400	517305985	Rear Stud
