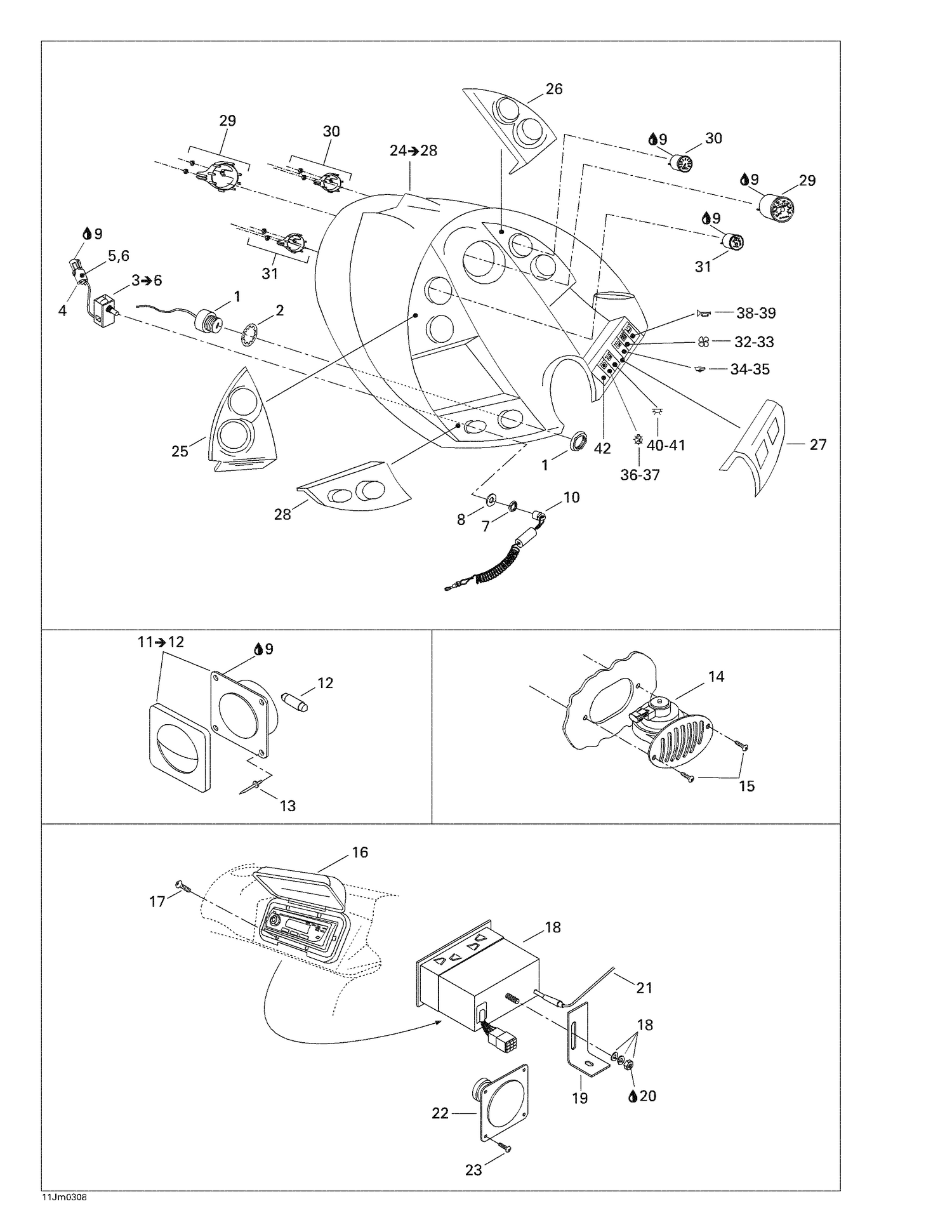

10- Electrical Accessories 1
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Instrumentation Harness (Mercury) |
| 2 | 204100085 | Internal Tooth Lock Washer 1" |
| 4 | 278000220 | Male Connector, 2 Circuits |
| 5 | 278000218 | Wire Seal |
| 6 | 278000223 | Female Terminal |
| 7 | 278000099 | Safety Switch Nut |
| 8 | 204100027 | FLAT WASHER - Call your local BRP dealership |
| 9 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 10 | 278001431 | Safety Lanyard |
| 12 | 204470081 | BULB - Call your local BRP dealership |
| 13 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 14 | 204470801 | HORN - Call your local BRP dealership |
| 15 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 16 | 204470535 | Radio Cover |
| 17 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 18 | 204470682 | Compact Disc Radio |
| 19 | 204470683 | Radio Support |
| 20 | 293800060 | Loctite 243, 10 ml |
| 21 | 204470380 | Antenna |
| 22 | 204470378 | Speaker |
| 23 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 25 | 204470721 | LH Gauge Panel |
| 26 | 204470722 | RH Gauge Panel |
| 27 | 204470723 | RH Interruptor Panel |
| 28 | 204470724 | LH Interruptor Panel |
| 29 | 204470803 | Speedometer Gauge |
| 30 | 204470802 | Tachometer |
| 31 | 204470804 | Oil/Fuel Gauge |
| 33 | 204470132 | Gasket |
| 35 | 204470132 | Gasket |
| 37 | 204470132 | Gasket |
| 39 | 204470132 | Gasket |
| 41 | 204470132 | Gasket |
