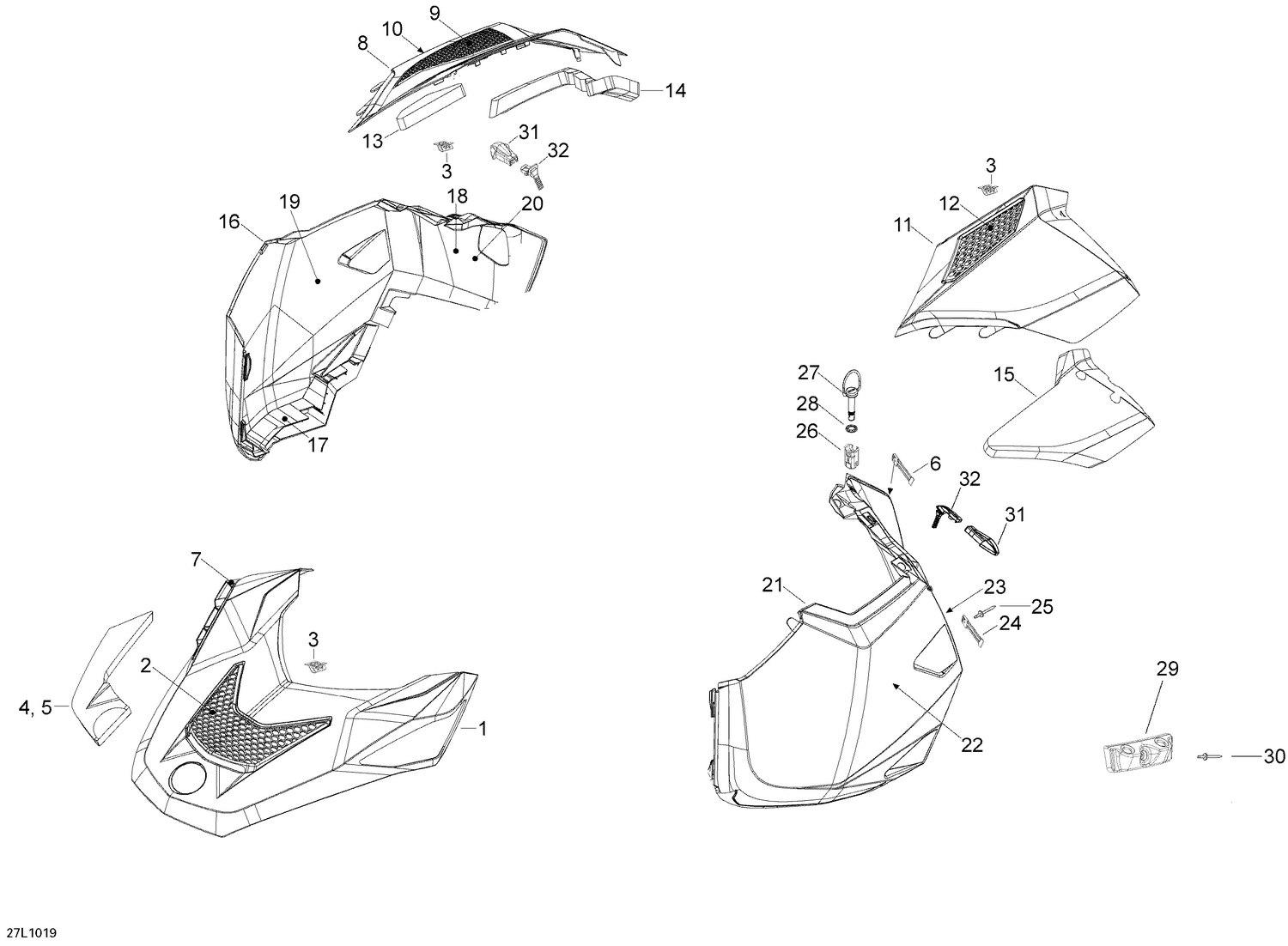

09- Hood
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304812 | Black, Hood This part replaces 517303889. |
| 2 | 517304843 | Hood Grille This part replaces 517303892. |
| 3 | 517302785 | Edge Clip |
| 4 | 517304330 | Insulator |
| 5 | 517304214 | Insulator |
| 6 | 517304289 | Latch Pannel |
| 7 | 517306980 | Scoop Grille This part replaces 517304155. |
| 8 | 517304682 | Side Access Panel RH |
| 9 | 517304015 | RH Access Panel Grille |
| 10 | 517304016 | RH Lower Acces Grille |
| 11 | 517304691 | Side Access Panel LH |
| 12 | 517303893 | LH Access Panel Grille |
| 13 | 517304311 | Insulator |
| 14 | 517304312 | Insulator |
| 15 | 517304313 | Insulator |
| 16 | 517304509 | Side Panel RH Ass'y |
| 17 | 517304215 | Aluminium Foil |
| 18 | 517304216 | Aluminium Foil |
| 19 | 517304512 | Aluminium Foil |
| 20 | 517304310 | RH Rear Foam |
| 21 | 517304511 | Side Panel LH Ass'y |
| 22 | 517303891 | LH Foam |
| 23 | 517304309 | LH Rear Foam |
| 24 | 517304572 | Latch-Panel |
| 25 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 26 | 517304297 | Handle Fastener Quarter-Turn |
| 27 | 517304296 | Quarter-Turn Handle |
| 28 | 517304538 | Locking Plate |
| 29 | 517304497 | Side Panel Support |
| 30 | 36005 | Rivet This part replaces M36005. |
| 31 | 860200239 | Black Latch Kit |
