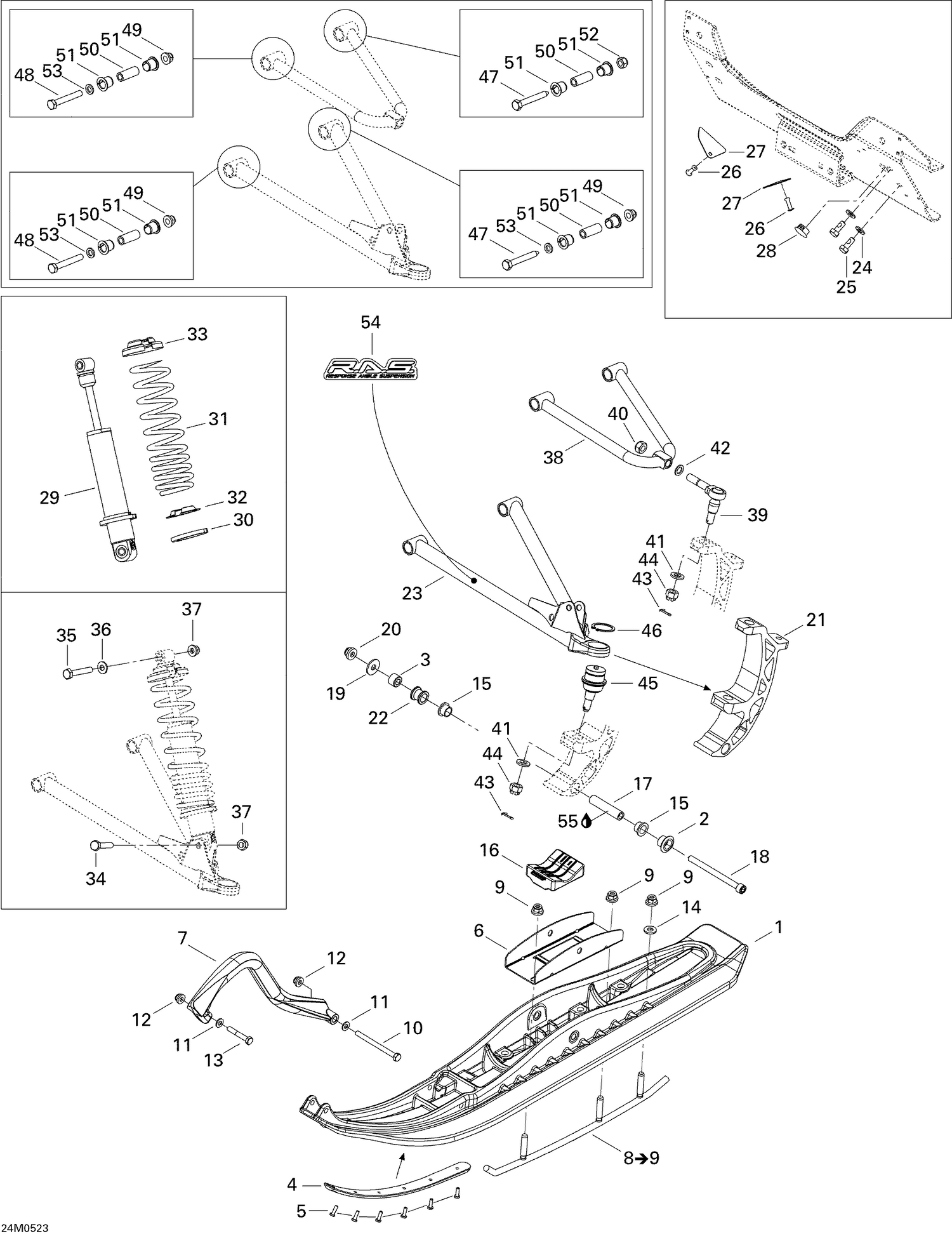

07- Front Suspension And Ski
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505071712 | RH Ski Ass'y |
| 1 | 505071713 | LH Ski Ass'y |
| 2 | 505070743 | CUSHION - Call your local BRP dealership |
| 3 | 505070823 | CUSHION - Call your local BRP dealership |
| 4 | 505071595 | Proactive Control |
| 5 | 211000021 | PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership This part replaces 250000016. |
| 6 | 505070745 | Ski Renforcement |
| 7 | 505070963 | Black, Handle |
| 8 | 860200582 | Lisse 6 *6 Carbide This part replaces 860504800. |
| 9 | 233201414 | Hex. Flange Elastic Nut M10 |
| 10 | 230080044 | SCREW-HEX. M8 X 100 - Call your local BRP dealership |
| 11 | 234081410 | Flat Washer 8 mm |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 207085044 | Hex. Screw M8 X 50 |
| 14 | 399910100 | Flat Washer |
| 15 | 505072690 | Leg Bushing This part replaces 505070954. |
| 16 | 505071779 | Ski Stopper This part replaces 505071632. |
| 17 | 506133300 | Spacer |
| 18 | 250000069 | Socket Head Screw M10 X 125 |
| 19 | 234002410 | Flat Washer 10 mm |
| 20 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 21 | 505071248 | SKI LEG - Call your local BRP dealership |
| 22 | 505071215 | SPACER - Call your local BRP dealership |
| 23 | 860509800 | RH Lower Arm |
| 23 | 860512800 | LH LOWER ARM ASS'Y - Call your local BRP dealership This part replaces 860509900. |
| 24 | 234081410 | Flat Washer 8 mm |
| 25 | 250000118 | Hex. Screw With Nylon |
| 26 | 293150103 | Pop Rivet 3/16" |
| 27 | 505071131 | ALUMINIUM PLUG - Call your local BRP dealership |
| 28 | 572072100 | CAP - Call your local BRP dealership |
| 29 | 505071459 | Front Shock |
| 30 | 505070401 | WASHER - Call your local BRP dealership |
| 31 | 505071257 | Spring |
| 32 | 503187500 | Spring Guide |
| 33 | 706200881 | Spring Stopper This part replaces 503140600. |
| 34 | 207005544 | Hex. Screw M10 X 55 |
| 35 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 36 | 503189564 | Washer |
| 37 | 233201414 | Hex. Flange Elastic Nut M10 |
| 38 | 505071733 | Paint Upper Arm |
| 39 | 505072257 | Upper Ball Joint This part replaces 505071679. |
| 40 | 250000047 | Hex. Flange Elastic Nut M12 |
| 41 | 234021410 | Flat Washer 12 mm |
| 42 | 503189276 | Washer |
| 43 | 211400017 | Cotter Pin |
| 44 | 232221414 | Hex. Castellated Nut M12 |
| 45 | 505071658 | Ball Joint |
| 46 | 293370035 | Circlip |
| 47 | 250001063 | Hex. Screw M10 X 75 This part replaces 250000216. |
| 48 | 250001063 | Hex. Screw M10 X 75 This part replaces 250000218. |
| 49 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100073. |
| 50 | 505070567 | Bushing |
| 51 | 505070566 | Arm Bushing |
| 52 | 232501416 | Elastic Flange Nut M10 |
| 53 | 503189564 | Washer |
| 54 | 516002747 | R.a.s. Suspension Decal |
