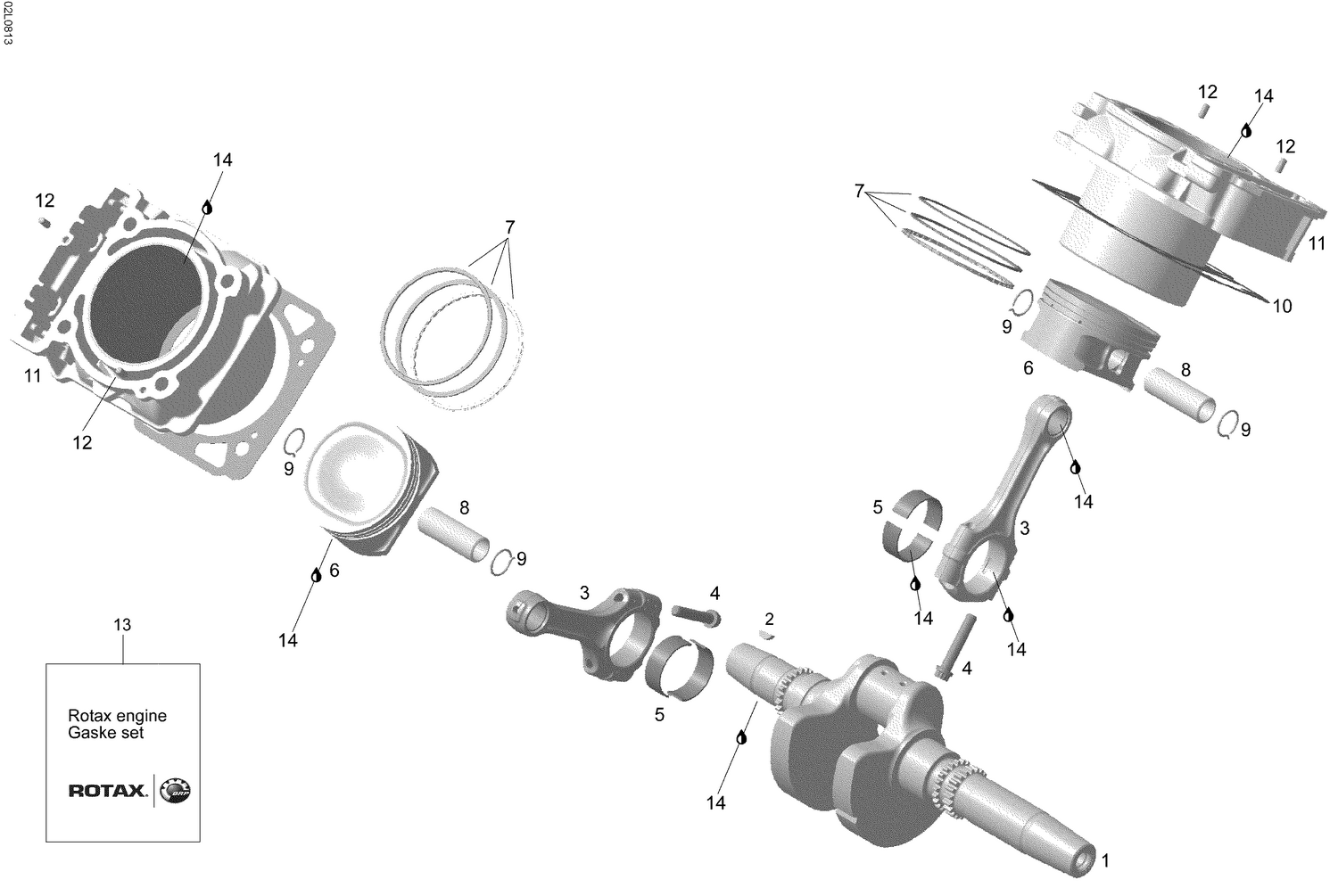

| Ref | Part Number | Description |
|---|
| 1 |
420819355 |
CRANKSHAFT ASS'Y - Call your local BRP dealership |
| 2 |
420246570 |
Woodruff key |
| 4 |
420641645 |
Connecting Rod Screw M8 X 1 This part replaces 420641640. |
| 5 |
420233980 |
Bearing half |
| 7 |
420296774 |
Piston ring set |
| 7 |
Not |
Available As Spare Part - Piston ring set (oversize) |
| 8 |
420216270 |
Piston pin |
| 9 |
420845106 |
Piston Circlip |
| 10 |
420630211 |
Gasket Aramid This part replaces 420630210. |
| 12 |
420929650 |
Drive pin |
| 13 |
420684133 |
GASKET SET - Call your local BRP dealership This part replaces 420684132. |
