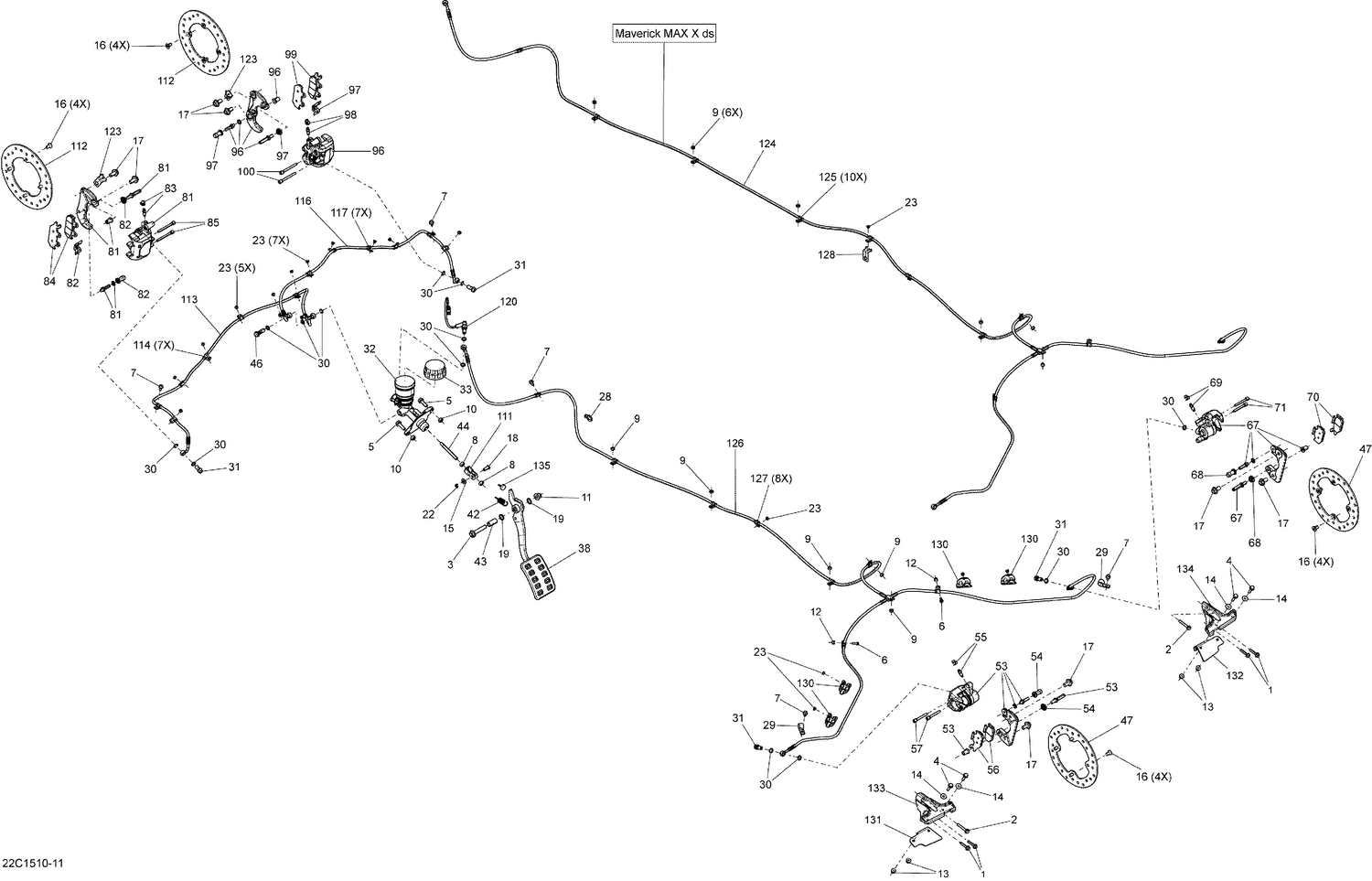

06- Brakes _22C1511
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 2 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 3 | 207605544 | Hex. Flange Screw M10 X 55 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5 | 207682534 | Hex. Flange Screw M8 X 25 |
| 6 | 210251650 | Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 7 | 210261040 | Hex. Flange Screw M6 X 10 |
| 8 | 232081414 | Hex. Nut M8 |
| 9 | 232561434 | Elastic Stop Nut M6 |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | 233201414 | Hex. Flange Elastic Nut M10 |
| 12 | 233251434 | Flange Elastic Nut M5 |
| 13 | 233261494 | Hex. Flange Elastic Nut M6 |
| 14 | 234062670 | Stainless Steel Flat Washer |
| 15 | 234081430 | Flat Washer M8 |
| 16 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 17 | 250001134 | Hex. Flange Screw M10 X 20 This part replaces 250000601. |
| 18 | 250400058 | Pin |
| 19 | 293300144 | O-Ring |
| 22 | 371800700 | Cotter Pin |
| 23 | 390402200 | Pop Rivet 3/16" |
| 28 | 414115200 | Tie-Rap 180 mm |
| 29 | 518321570 | Open Clamp |
| 30 | 705601628 | Copper Washer This part replaces 705600310. |
| 31 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 33 | 715500332 | Diaphragm Cap Kit |
| 38 | 705600724 | Brake Pedal |
| 42 | 705600792 | Brake Pedal Spring |
| 43 | 705600815 | Inner Spacer |
| 44 | 705600833 | Master Cylinder Rod |
| 46 | 705600958 | Banjo Bolt |
| 47 | 705601997 | Disc Brake This part replaces 705600999. |
| 54 | 715500384 | Spring, Protector And Bolt Kit |
| 55 | 705600080 | Bleeding Screw |
| 56 | 705600398 | LH Brake Pad Kit |
| 57 | 705600081 | Pin Set (2) |
| 68 | 715500384 | Spring, Protector And Bolt Kit |
| 69 | 705600080 | Bleeding Screw |
| 70 | 705601147 | RH Brake Pad Kit |
| 71 | 705600081 | Pin Set (2) |
| 82 | 715500385 | Spring And Bolt Kit |
| 83 | 705600080 | Bleeding Screw |
| 84 | 705601149 | LH Brake Pad Kit |
| 85 | 705601151 | Hanger Pin Kit |
| 97 | 715500385 | Spring And Bolt Kit |
| 98 | 705600080 | Bleeding Screw |
| 99 | 705601150 | RH Brake Pad Kit |
| 100 | 705601151 | Hanger Pin Kit |
| 111 | 705601142 | Yoke |
| 112 | 705601178 | Disc Brake |
| 114 | 293650256 | Clamp This part replaces 715900250. |
| 117 | 293650256 | Clamp This part replaces 715900250. |
| 120 | 705601250 | Brake Switch |
| 123 | 705601337 | Bracket |
| 125 | 293650256 | Clamp This part replaces 715900250. |
| 126 | XXX | Not Available As Spare Parts |
| 127 | XXX | Not Available As Spare Parts |
| 128 | 705601337 | Bracket |
| 130 | 705601380 | HOSE CLAMP - Call your local BRP dealership |
| 132 | 705601398 | RH DEFLECTOR INSERT - Call your local BRP dealership |
| 133 | 705601403 | LH DEFLECTOR - Call your local BRP dealership |
| 134 | 705601404 | RH DEFLECTOR - Call your local BRP dealership |
