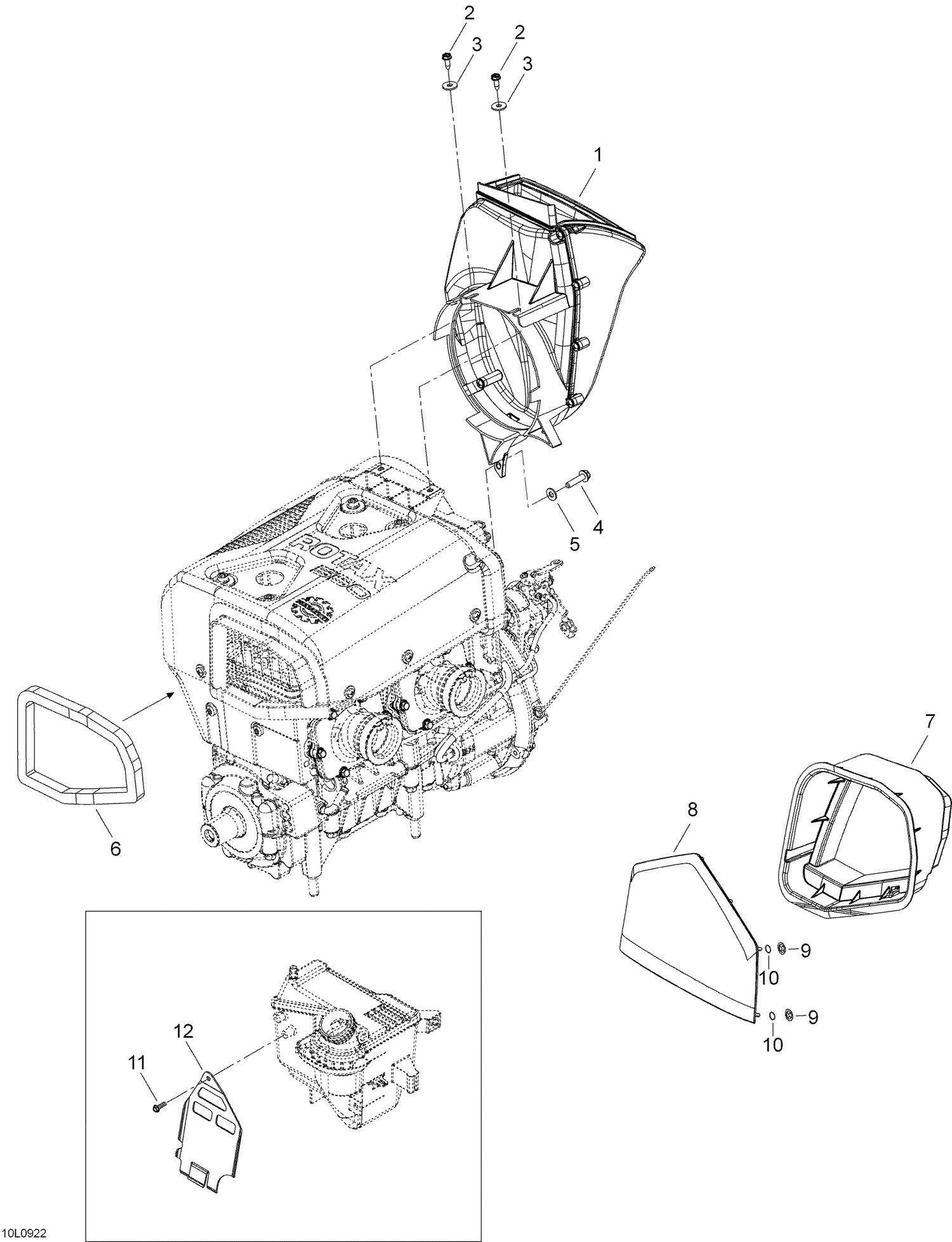

01- Cooling
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 250000202 | Self Tapping Screw #8 X 5/8 This part replaces 250000222. |
| 3 | 391301600 | Washer |
| 4 | 210262550 | Hex. Flanged Forming Screw M6 X 25 This part replaces 210262580. |
| 5 | 224061121 | Flat Washer |
| 6 | 508000450 | Foam |
| 7 | 605352786 | Inner duct outlet |
| 8 | 605352787 | Outer duct outlet |
| 9 | 36084 | Push nut |
| 10 | 48231 | O-ring |
| 11 | 241151640 | Screw K50 x 16 |
