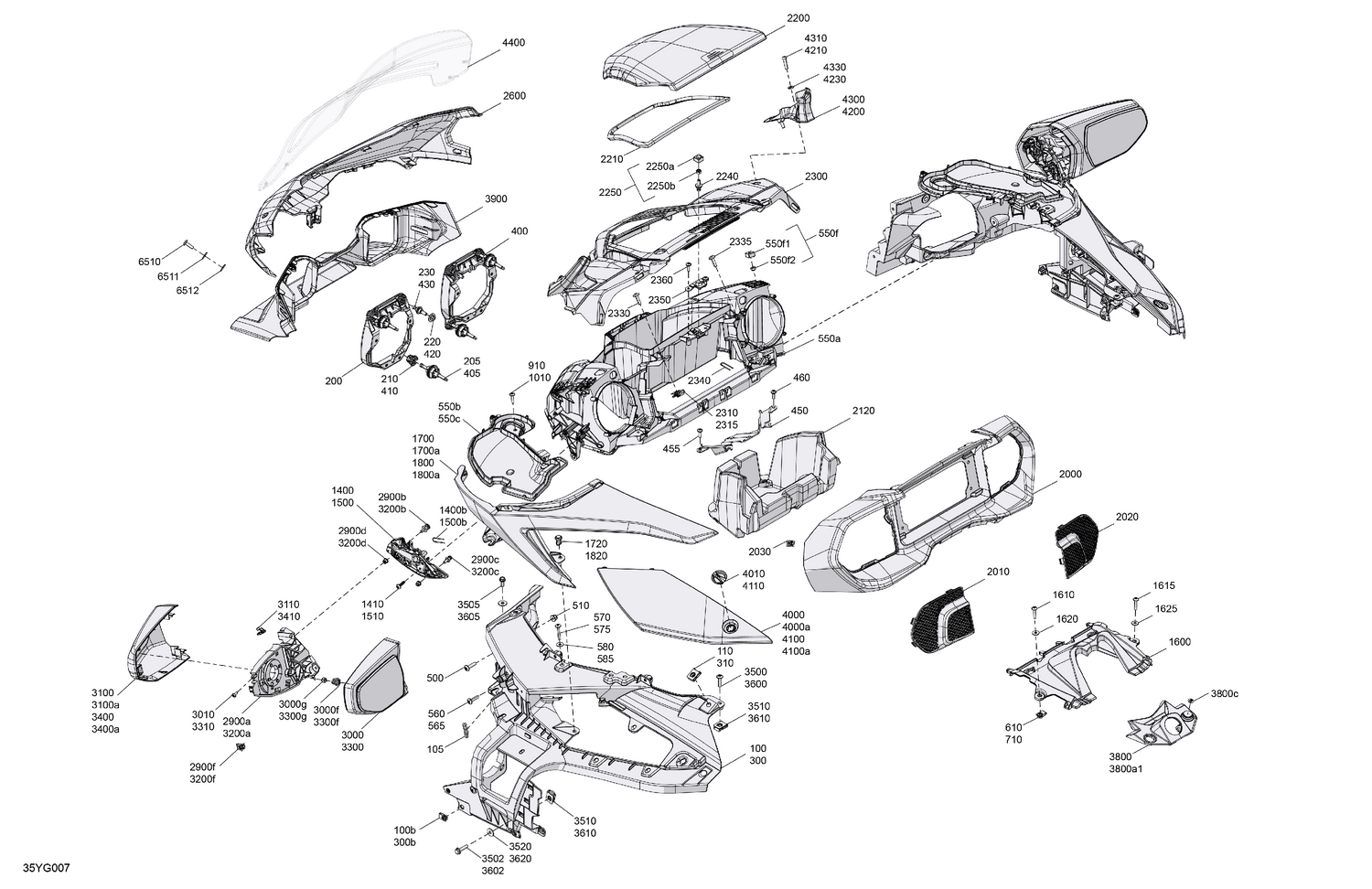

| Ref | Part Number | Description |
|---|
| 100b |
250000958 |
Panel Nut M5 X 0.8 |
| 105 |
219704354 |
Trim 1000Mm Long |
| 110 |
250100208 |
Panel Nut M6 X 1.0 |
| 200 |
708401009 |
LH Front High Beam Headlight Support |
| 205 |
708400954 |
Adjuster |
| 210 |
708400955 |
Retaining Ring |
| 220 |
705014119 |
Large Shoulder Nut M6 |
| 230 |
705018616 |
Ball Stud |
| 300b |
250000958 |
Panel Nut M5 X 0.8 |
| 310 |
250100208 |
Panel Nut M6 X 1.0 |
| 400 |
708401010 |
RH Front High Beam Headlight Support |
| 405 |
708400954 |
Adjuster |
| 410 |
708400955 |
Retaining Ring |
| 420 |
705014119 |
Large Shoulder Nut M6 |
| 430 |
705018616 |
Ball Stud |
| 450 |
708400864 |
GPS Support |
| 455 |
250000720 |
Torx Screw K50 X 16 |
| 460 |
250000720 |
Torx Screw K50 X 16 |
| 500 |
250000758 |
Torx Screw M6 X 25 |
| 510 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 550a |
708400973 |
Upper Console |
| 550b |
708400734 |
LH Enclosure Cover |
| 550c |
708400735 |
RH Enclosure Cover |
| 550f1 |
269500252 |
M6 Nut Housing Ass'y |
| 550f2 |
232561200 |
Brass Elastic Stop Nut M6 |
| 560 |
250000807 |
Torx Truss Screw M6 X 25 |
| 565 |
250000807 |
Torx Truss Screw M6 X 25 |
| 570 |
250000732 |
Torx Screw Nylon |
| 575 |
250000732 |
Torx Screw Nylon |
| 580 |
234052670 |
Stainless Steel Flat Washer M5 |
| 585 |
234052670 |
Stainless Steel Flat Washer M5 |
| 610 |
250000958 |
Panel Nut M5 X 0.8 |
| 710 |
250000958 |
Panel Nut M5 X 0.8 |
| 910 |
250000724 |
Torx Screw M5 X 20 |
| 1010 |
250000724 |
Torx Screw M5 X 20 |
| 1400b |
705006661 |
Spring |
| 1410 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1500b |
705006661 |
Spring |
| 1510 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1600 |
708400108 |
Column Fairing |
| 1610 |
250000762 |
Torx Screw M5 X 25 |
| 1615 |
250000762 |
Torx Screw M5 X 25 |
| 1620 |
234052670 |
Stainless Steel Flat Washer M5 |
| 1625 |
234052670 |
Stainless Steel Flat Washer M5 |
| 1700a |
708400067 |
Bare, LH Console Fairing |
| 1720 |
293150230 |
Tuflok Plastic Rivet |
| 1800a |
708400069 |
Bare, RH Console Fairing |
| 1820 |
293150230 |
Tuflok Plastic Rivet |
| 2000 |
708400975 |
Dashboard |
| 2010 |
708400715 |
LH Speaker Grille |
| 2020 |
708400716 |
RH Speaker Grille |
| 2030 |
517302785 |
Edge Clip |
| 2120 |
708400736 |
Thermal Insulation |
| 2200 |
708400996 |
Box Cover |
| 2210 |
293830244 |
Gasket |
| 2240 |
705018612 |
Ball Stud |
| 2250a |
269500252 |
M6 Nut Housing Ass'y |
| 2250b |
232561600 |
Hex. Elastic Stop Nut M6 |
| 2300 |
708400962 |
Console Fairing |
| 2310 |
250100208 |
Panel Nut M6 X 1.0 |
| 2315 |
250100208 |
Panel Nut M6 X 1.0 |
| 2330 |
250000705 |
Torx Truss Screw M6 X 20 |
| 2335 |
250000705 |
Torx Truss Screw M6 X 20 |
| 2340 |
705006661 |
Spring |
| 2350 |
708400215 |
Receptacle |
| 2360 |
250000720 |
Torx Screw K50 X 16 |
| 2600 |
708400725 |
Monolith Black, Front Fairing |
| 2900a |
708400224 |
LH Mirror Support |
| 2900b |
705006733 |
Flat Head Stud M5 |
| 2900c |
708400538 |
Stud Ball M5 |
| 2900d |
233251434 |
Flange Elastic Nut M5 |
| 2900f |
517302785 |
Edge Clip |
| 3000f |
705010625 |
Spring |
| 3000g |
232561600 |
Hex. Elastic Stop Nut M6 |
| 3010 |
250001131 |
Torx Truss PT K40 x 12 |
| 3100a |
708400461 |
Bare, LH Front Rear View Mirror Trim |
| 3110 |
293730132 |
Clip |
| 3200a |
708400225 |
RH Mirror Support |
| 3200b |
705006733 |
Flat Head Stud M5 |
| 3200c |
708400538 |
Stud Ball M5 |
| 3200d |
233251434 |
Flange Elastic Nut M5 |
| 3200f |
517302785 |
Edge Clip |
| 3300f |
705010625 |
Spring |
| 3300g |
232561600 |
Hex. Elastic Stop Nut M6 |
| 3310 |
250001131 |
Torx Truss PT K40 x 12 |
| 3400a |
708400463 |
Bare, RH Rear View Mirror Trim |
| 3410 |
293730132 |
Clip |
| 3500 |
250000807 |
Torx Truss Screw M6 X 25 |
| 3502 |
207562556 |
Hex. Flange Screw M6 X 25, Scotch Grip |
| 3505 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 3510 |
250100208 |
Panel Nut M6 X 1.0 |
| 3520 |
250200164 |
Flat washer M6 |
| 3600 |
250000807 |
Torx Truss Screw M6 X 25 |
| 3602 |
207562556 |
Hex. Flange Screw M6 X 25, Scotch Grip |
| 3605 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 3610 |
250100208 |
Panel Nut M6 X 1.0 |
| 3620 |
250200164 |
Flat washer M6 |
| 3800a1 |
708400205 |
Switch Bezel |
| 3800c |
704908774 |
Rear Fog Light Decal |
| 3900 |
705019714 |
Front Access Cover |
| 4000a |
708400261 |
Bare, LH Acces Panel |
| 4010 |
708400065 |
Cover Latch Quarter Turn |
| 4100a |
708400262 |
Bare, RH Acces Panel |
| 4110 |
708400065 |
Cover Latch Quarter Turn |
| 4200 |
708400657 |
Sterling Silver, LH Windshield Support |
| 4210 |
250000328 |
Torx Screw M6 X 25, Scotch Grip |
| 4230 |
234061600 |
Stainless Flat Washer M6 |
| 4300 |
708400658 |
Sterling Silver, RH Windshield Support |
| 4310 |
250000328 |
Torx Screw M6 X 25, Scotch Grip |
| 4330 |
234061600 |
Stainless Flat Washer M6 |
| 4400 |
708400775 |
Windshield |
| 6510 |
234052670 |
Stainless Steel Flat Washer M5 |
| 6511 |
293830190 |
Rubber Washer |
