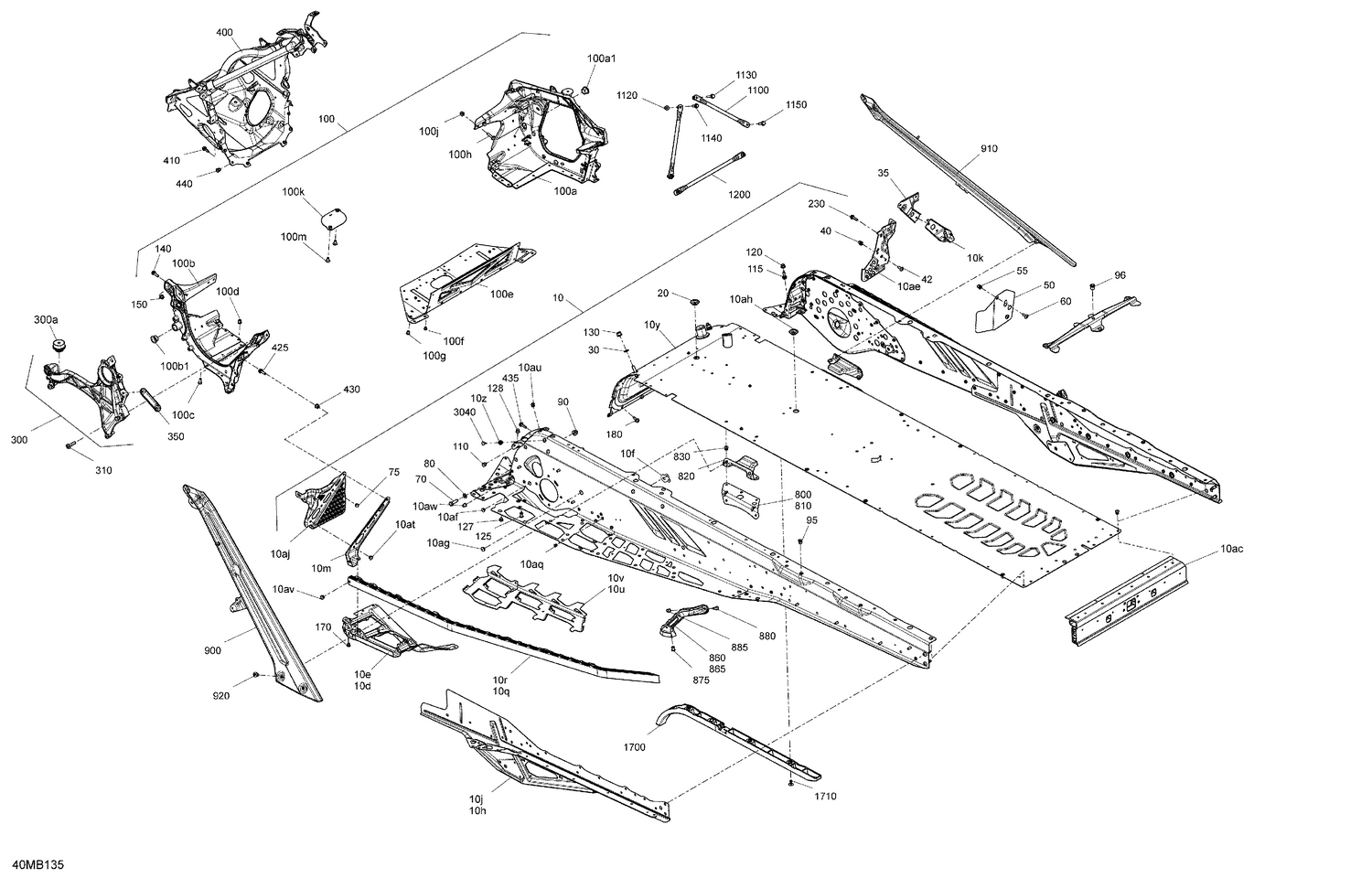

| Ref | Part Number | Description |
|---|
| 10ac |
518332315 |
Rear Cap |
| 10ae |
518331822 |
RH Footrest |
| 10af |
293730047 |
Black, Dart 8 mm |
| 10ag |
293730079 |
Dart |
| 10ah |
293730052 |
Black, Plug |
| 10aj |
518332978 |
LH Footrest |
| 10aq |
293150203 |
Rivet Avibulb 3/16 |
| 10at |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10au |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10av |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10aw |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 10d |
518332803 |
Deep Black, RH Footrest Reinforcement |
| 10e |
518332802 |
Deep Black, LH Footrest Reinforcement |
| 10f |
518335959 |
Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10h |
518332254 |
RH Rear Suspension Support |
| 10j |
518332253 |
LH Rear Suspension Support |
| 10k |
518329789 |
RH Footrest Reinforcement |
| 10m |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10q |
518329648 |
RH Roller |
| 10r |
518328452 |
LH Roller |
| 10u |
518329646 |
RH Tunnel Liner |
| 10v |
518329647 |
LH Tunnel Liner |
| 10y |
518332622 |
Radiator Tunnel Ass'y 154 |
| 10z |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 20 |
293730052 |
Black, Plug |
| 30 |
234081410 |
Flat Washer 8 mm |
| 35 |
518331727 |
RH Stirrup Reinforcement |
| 40 |
293450275 |
Insert |
| 42 |
250000717 |
Torx Head Screw M6 X 16 |
| 50 |
518331823 |
Heat Shield |
| 55 |
293450275 |
Insert |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 75 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 95 |
293450275 |
Insert |
| 96 |
293450275 |
Insert |
| 100a1 |
505072690 |
Leg Bushing |
| 100b1 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100e |
518332715 |
Bottom Plate |
| 100f |
293150203 |
Rivet Avibulb 3/16 |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
250000945 |
Hex. Flange Screw M6 X 25 |
| 100j |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100k |
518329454 |
Oil Plate |
| 100m |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 127 |
293150173 |
Rivet 6,4 mm |
| 128 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400 |
518334551 |
Chassis Suspension Module Ass'y This part replaces 518332098. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 435 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 440 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 800 |
518331729 |
LH Under Chassis Reinforcement |
| 810 |
518331731 |
RH Under Chassis Reinforcement |
| 820 |
518331733 |
Cross Member Support |
| 830 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 860 |
518330858 |
Deep Black LH Rear Footrest Reinforcement |
| 865 |
518335169 |
Deep Black, RH Rear Footrest Reinforcement This part replaces 518330861. |
| 875 |
293150183 |
Rivet |
| 880 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 885 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 900 |
518331725 |
Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270. |
| 910 |
518331726 |
Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271. |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 1200 |
518329756 |
Center Colomn Support |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
