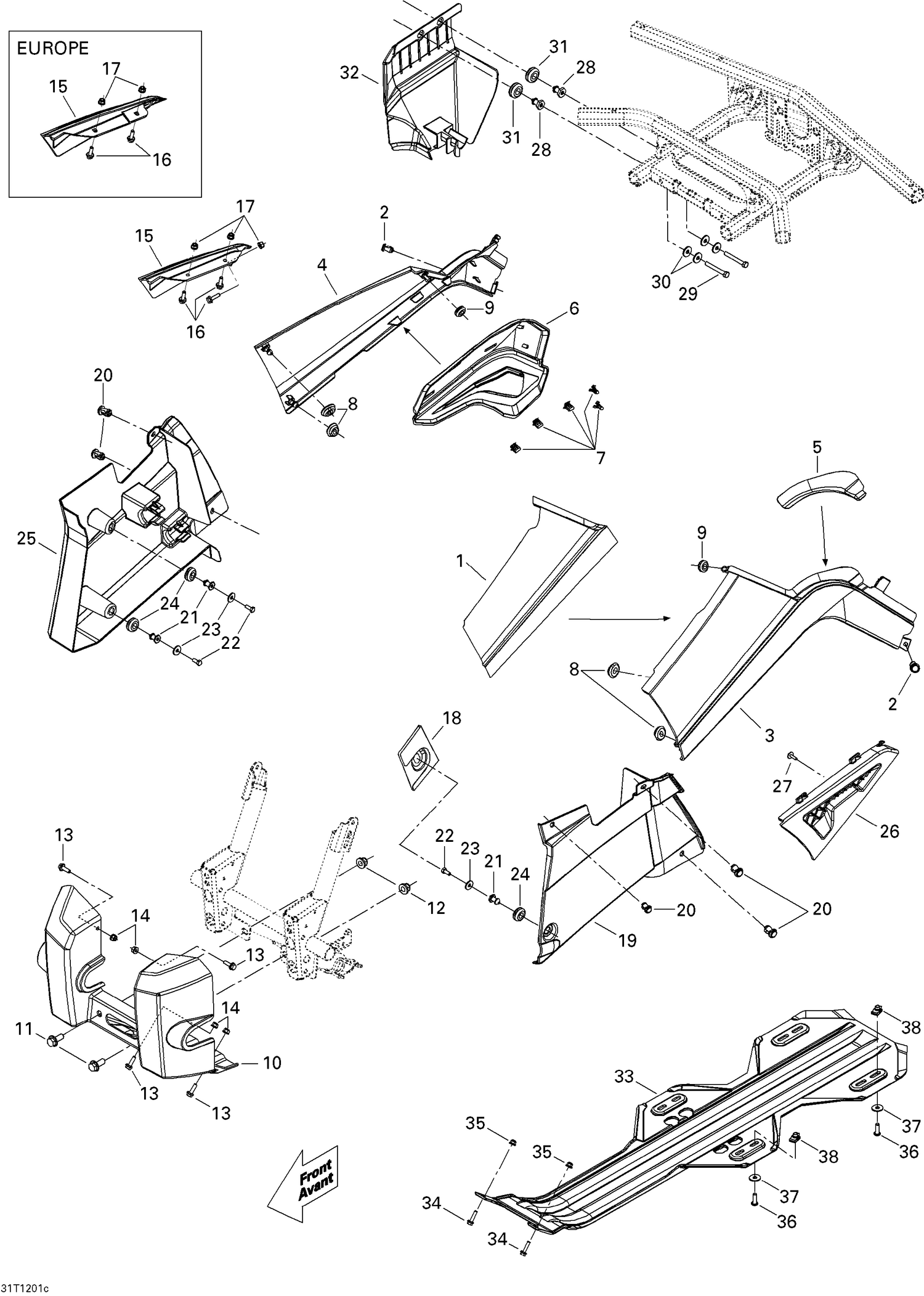

| Ref | Part Number | Description |
|---|
| 1 |
705002491 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 6 |
705002664 |
MUFFLER COVER - Call your local BRP dealership |
| 7 |
517302785 |
Edge Clip |
| 9 |
705003264 |
Grommet |
| 12 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 13 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
705003830 |
Reflective Sheet |
| 19 |
705000652 |
LH Inner Fender |
| 20 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 21 |
517303439 |
Knob |
| 22 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 23 |
391301600 |
Washer |
| 24 |
709000582 |
Grommet This part replaces 293720053. |
| 25 |
705002640 |
INNER FENDER - Call your local BRP dealership |
| 26 |
705002493 |
CONSOLE CAP - Call your local BRP dealership |
| 27 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 28 |
517303439 |
Knob |
| 29 |
241154540 |
Hex. Screw K50 X 45 |
| 30 |
391301600 |
Washer |
| 31 |
709000582 |
Grommet This part replaces 293720053. |
| 32 |
705004036 |
Thread Cover |
| 33 |
715000688 |
PLATE_SKID CTRL. KIT - Call your local BRP dealership |
| 34 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 35 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 36 |
250000283 |
Torx Screw M8 X 25, Scotch Grip |
| 37 |
234082410 |
Flat Washer 8 mm |
| 38 |
250100111 |
Panel Nut M8 |
| 39 |
XXX |
Not Available As Spare Parts |
| 40 |
XXX |
Not Available As Spare Parts |
| 41 |
XXX |
Not Available As Spare Parts |
| 42 |
XXX |
Not Available As Spare Parts |
| 43 |
XXX |
Not Available As Spare Parts |
| 44 |
XXX |
Not Available As Spare Parts |
| 45 |
XXX |
Not Available As Spare Parts |
| 46 |
XXX |
Not Available As Spare Parts |
