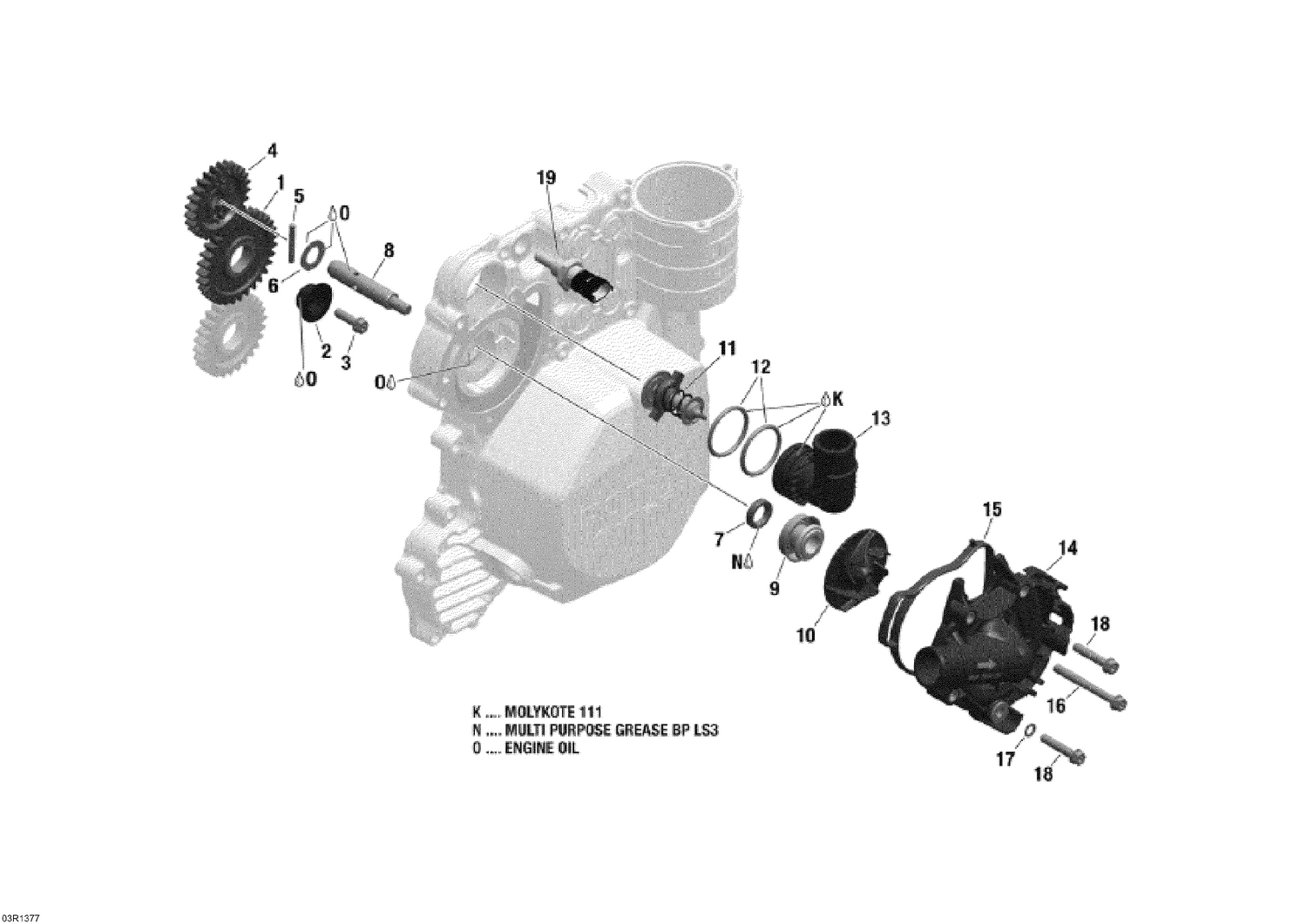

| Ref | Part Number | Description |
|---|
| K |
Not |
Available As Spare Part - Molykote 111 |
| N |
Not |
Available As Spare Part - Multipurpose Grease BP LS3 |
| 1 |
420835067 |
Idle Gear, 31 Teeth This part replaces 420835059. |
| 2 |
420947396 |
Graduated Spacer This part replaces 420947390. |
| 3 |
420440207 |
Torx Flange Screw M6 X 20 |
| 4 |
420835230 |
Water Pump Gear |
| 5 |
420232431 |
Needle Pin This part replaces 420232430. |
| 6 |
420827261 |
Thrust Washer |
| 8 |
420820150 |
Waterpump Shaft |
| 9 |
420850946 |
Seal |
| 10 |
420222880 |
Water Impeller |
| 11 |
420822655 |
Thermostat This part replaces 420822650. |
| 13 |
420922150 |
Thermostat Cover |
| 16 |
420440702 |
Torx Flange Screw M6 X 55 |
| 18 |
420440647 |
Torx Flange Screw M6 X 30 |
| 19 |
278002895 |
Temperature Sensor This part replaces 278001016. |
