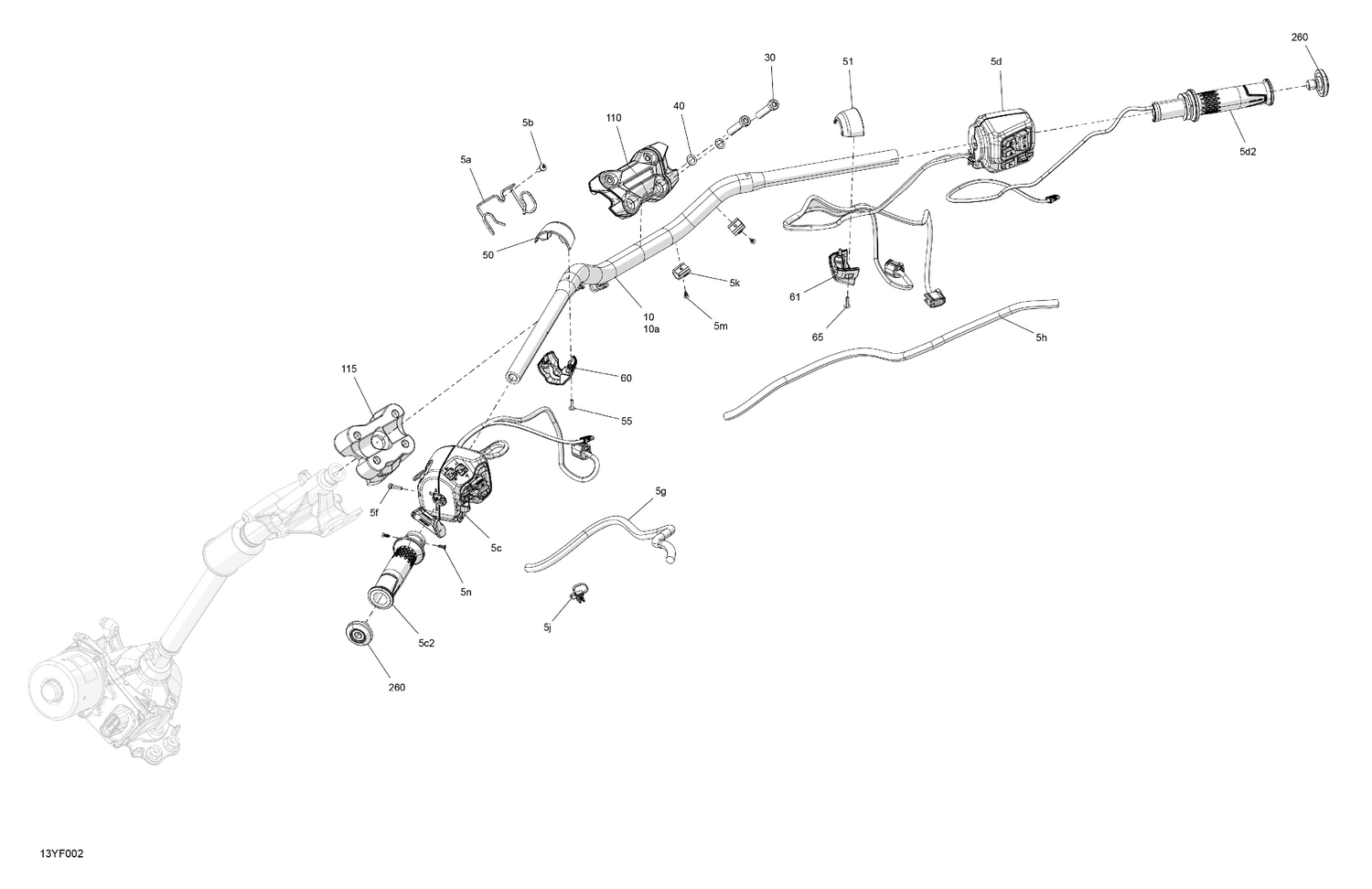

03- Mechanic - Handlebar
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 5a | 709402446 | Wiring Harness Support |
| 5b | 250000742 | Torx Screw M5 X 14 |
| 5c2 | 709403168 | LH Heated Handle Bar Grip |
| 5d2 | 709403169 | RH Heated Handle Bar Grip |
| 5f | 250000494 | Socket Screw, M4 X 16 Scotch Grip |
| 5g | 710004231 | Braided Sleeve |
| 5h | 710004231 | Braided Sleeve |
| 5j | 710005982 | Tie Wrap Clip |
| 5k | 709401804 | Wire Guide |
| 5m | 390403000 | Pop Rivet 5/32 |
| 10a | 709403450 | Handlebar |
| 30 | 250000997 | Thin Socket Screw, Scotch Grip, M10 |
| 40 | 250200105 | Stainless Flat Washer, 10 mm |
| 50 | 709402943 | LH Upper Switch Trim |
| 51 | 709402957 | RH Upper Switch Trim |
| 55 | 250000759 | Torx Truss Pt K40 X 16 |
| 60 | 709402944 | LH Lower Switch Trim |
| 61 | 709402958 | RH Lower Switch Trim |
| 65 | 250000759 | Torx Truss Pt K40 X 16 |
| 110 | 709401904 | Black, Central Handle Clamp |
| 115 | 709401906 | Black, Central Handle Support |
| 260 | 709403026 | Handlebar End Piece |
