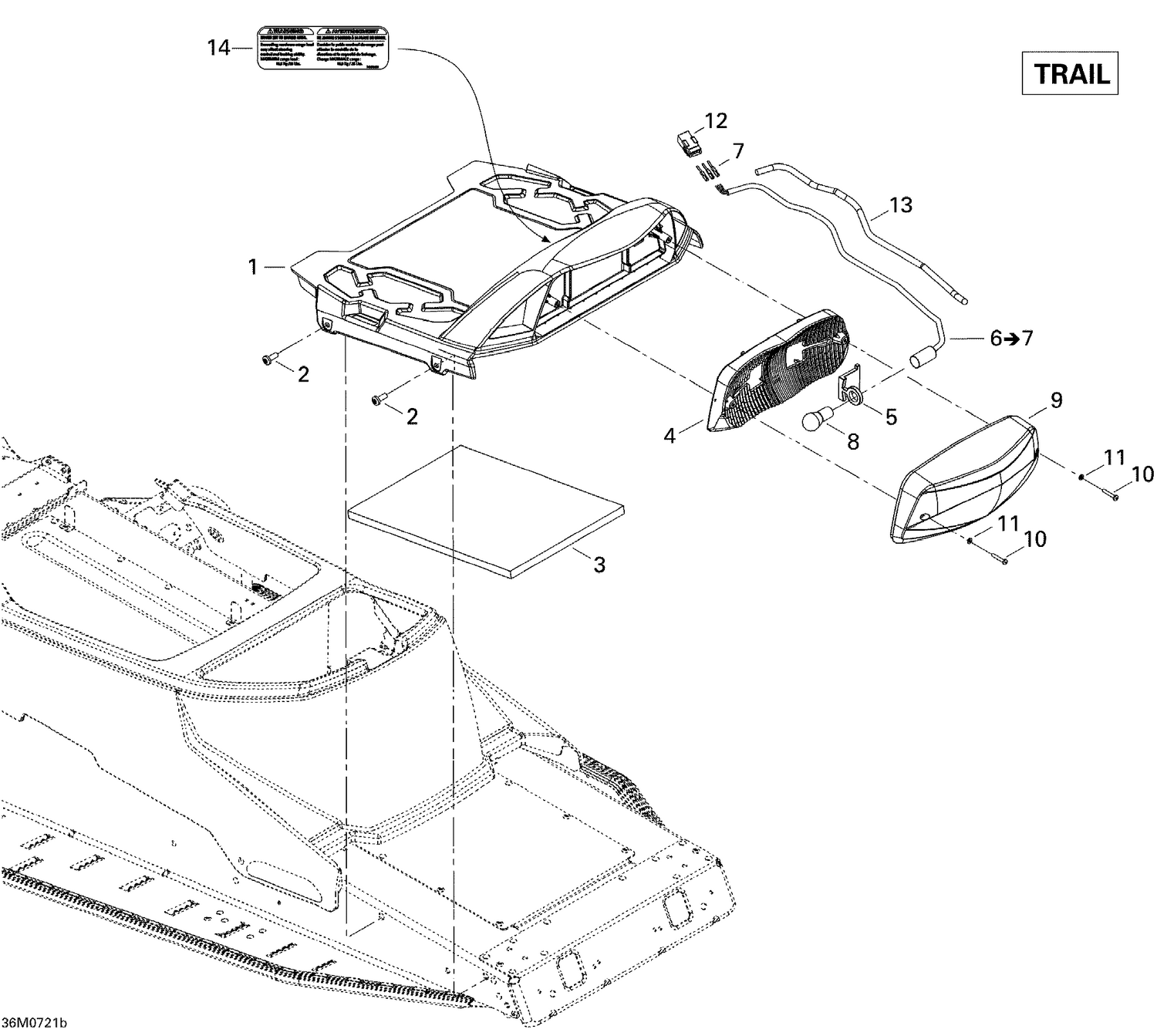

| Ref | Part Number | Description |
|---|
| 1 |
511000434 |
LUGGAGE RACK - Call your local BRP dealership |
| 2 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 3 |
511000359 |
RADIATOR COVER SHIM 121 - Call your local BRP dealership |
| 4 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 5 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 7 |
515175232 |
Male Terminal |
| 8 |
520000758 |
Bulb This part replaces 410504100. |
| 9 |
511000315 |
Lens |
| 10 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 11 |
414516400 |
Washer - Call your local BRP dealership |
| 12 |
515175494 |
Male Housing, 3 Circuits |
| 13 |
219704425 |
Tubing 6 Mm 3000Mm Long |
