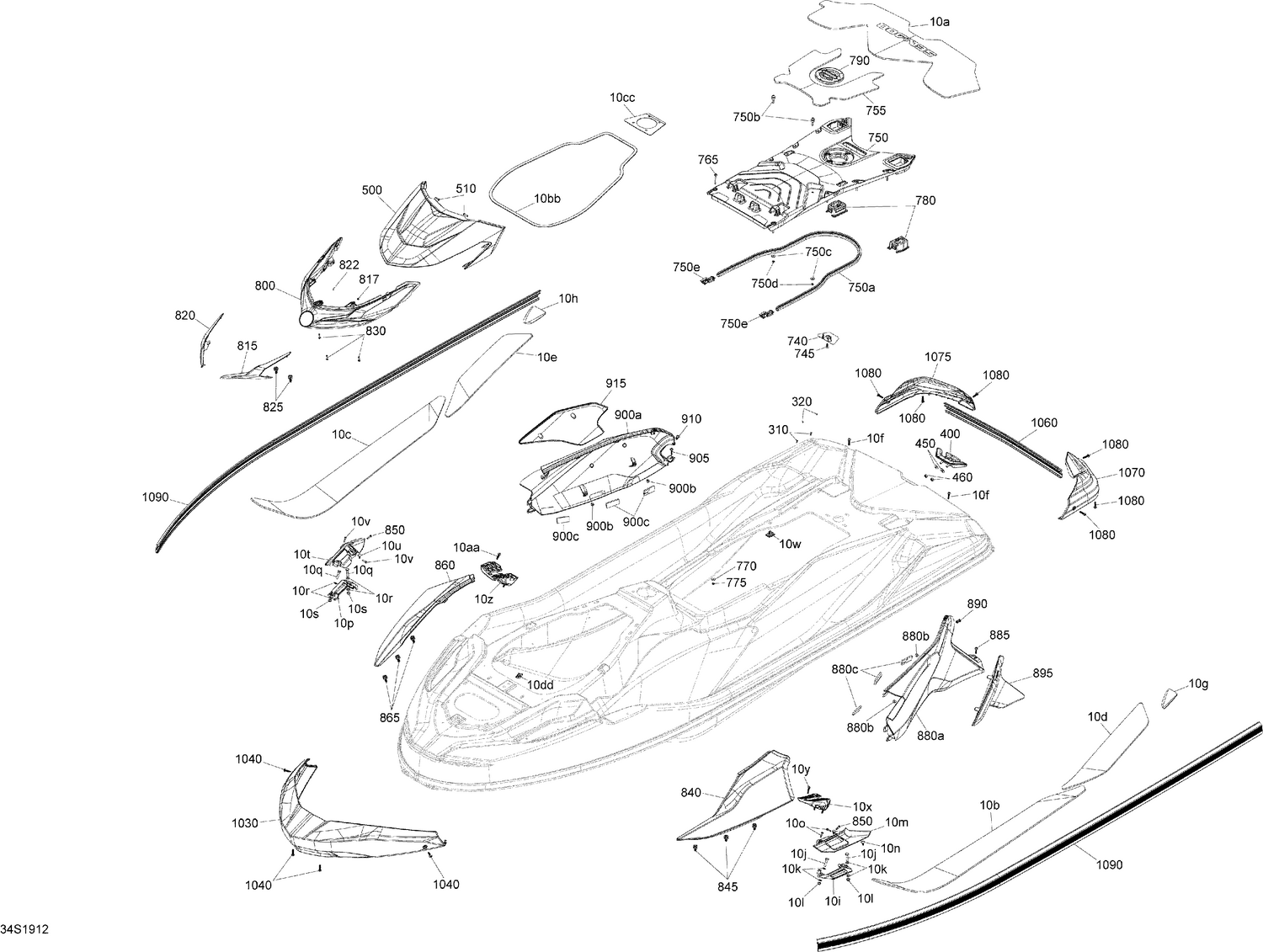

| Ref | Part Number | Description |
|---|
| 10a |
291005075 |
Rear Plat-Form Carpet |
| 10aa |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250001008. |
| 10b |
291005044 |
Anti Slip Mat FRT LH |
| 10bb |
293250401 |
Gasket |
| 10c |
291005045 |
Anti Slip Mat FRT RH |
| 10cc |
293250451 |
Gasket |
| 10d |
291004514 |
LH Rear Carpet |
| 10dd |
293750109 |
Anchorage Tie Wrap This part replaces 293750025. |
| 10e |
291004515 |
RH Rear Carpet |
| 10f |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250001008. |
| 10g |
291004516 |
LH Anti-Skid Pad |
| 10h |
291004517 |
RH Anti-Skid Pad |
| 10i |
291004559 |
LH Cleat |
| 10j |
207083560 |
Hex. Screw M8 X 35 |
| 10k |
234081600 |
Stainless, Flat Washer 8 mm |
| 10l |
232581200 |
Hex. Elastic Nut M8 Brass |
| 10m |
291004661 |
LH Shell Cleat |
| 10n |
293730011 |
Black, Dart |
| 10o |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 10p |
291004720 |
RH Cleat |
| 10q |
207083560 |
Hex. Screw M8 X 35 |
| 10r |
234081600 |
Stainless, Flat Washer 8 mm |
| 10s |
232581200 |
Hex. Elastic Nut M8 Brass |
| 10t |
291004719 |
RH Shell Cleat |
| 10u |
293730011 |
Black, Dart |
| 10v |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 10w |
291006093 |
Nut Housing M6 Ass'y This part replaces 291004813. |
| 10x |
291004714 |
LH Support |
| 10y |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250001008. |
| 10z |
291004715 |
RH Support |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 400 |
291004597 |
Cleat |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 500 |
291005579 |
Deep Black, Hood This part replaces 291004794. |
| 510 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 740 |
291004941 |
Hose Protector |
| 745 |
293730011 |
Black, Dart |
| 750a |
219704366 |
Was 293200062 Seal |
| 750b |
291004611 |
STUD - Call your local BRP dealership This part replaces 291004611. |
| 750c |
234062600 |
Flat Washer M6, Stainless |
| 750d |
232561200 |
Brass Elastic Stop Nut M6 |
| 750e |
291004717 |
Seal |
| 755 |
291004603 |
Cover B-421 |
| 765 |
250000827 |
Torx Screw Truss Cone HD.M6X50 This part replaces 250000708. |
| 770 |
234062600 |
Flat Washer M6, Stainless |
| 775 |
232561200 |
Brass Elastic Stop Nut M6 |
| 780 |
291005157 |
Cargo Base This part replaces 291005048. |
| 790 |
291004481 |
Access Cap Ass'y |
| 800 |
291005915 |
Front Hood Grille This part replaces 291004454. |
| 815 |
291004491 |
Chromed, Trim LH |
| 817 |
211100002 |
Push Nut |
| 820 |
291005963 |
Chrome, RH Trim This part replaces 291004492. |
| 822 |
211100002 |
Push Nut |
| 825 |
293730071 |
Dard |
| 830 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 840 |
291004553 |
Liquid Metal, LH Front Body Panel |
| 845 |
293730071 |
Dard |
| 850 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 860 |
291004554 |
Liquid Metal, RH Front Body Panel |
| 865 |
293730071 |
Dard |
| 880a |
291004555 |
Liquid Metal, Body Panel Central LH |
| 880b |
293830005 |
Rubber Bumper |
| 880c |
278003618 |
Stopper |
| 885 |
250001007 |
Screw Torx M6.81 X 30 |
| 890 |
293150230 |
Tuflok Plastic Rivet |
| 895 |
291004796 |
Knee Pads LH B-286 Ass'y |
| 900a |
291004557 |
Liquid Metal, RH Central Body Panel |
| 900b |
293830005 |
Rubber Bumper |
| 900c |
278003618 |
Stopper |
| 905 |
250001007 |
Screw Torx M6.81 X 30 |
| 910 |
293150230 |
Tuflok Plastic Rivet |
| 915 |
291004803 |
Knee Pads RH B-418 Ass'y |
| 1030 |
291004452 |
Front Bumper |
| 1040 |
250001007 |
Screw Torx M6.81 X 30 |
| 1060 |
291004468 |
Bumper 2775±25mm |
| 1070 |
291004465 |
LH Rear Bumper |
| 1075 |
291004466 |
RH Rear Bumper |
| 1080 |
250001007 |
Screw Torx M6.81 X 30 |
