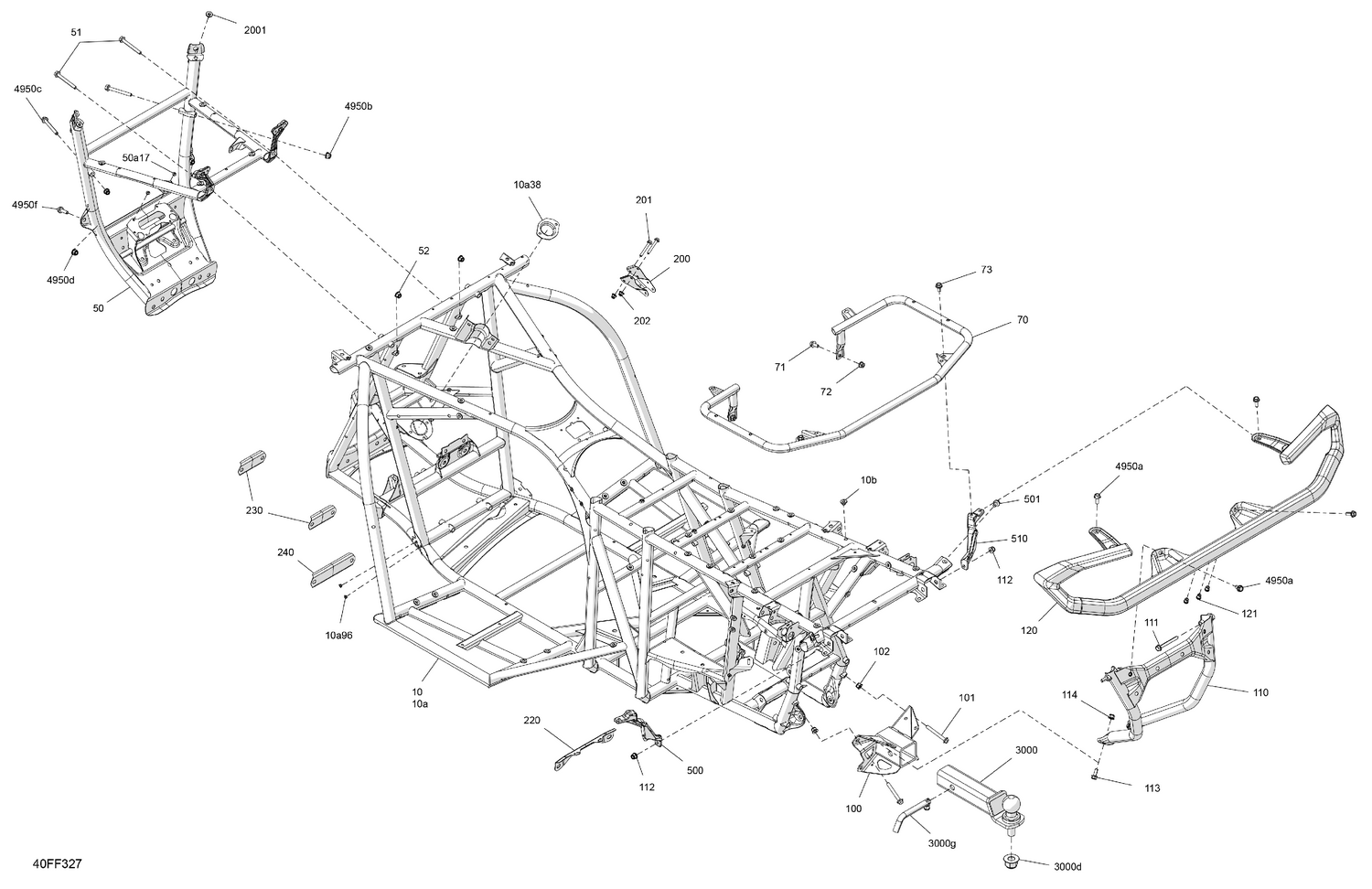

06- Frame - System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10a | XXX | Not Available As Spare Parts |
| 10a38 | 709402713 | Lower Bearing Support |
| 10a96 | 293150293 | Pop Rivet 3/16 X ,425 |
| 10b | 293450383 | Threaded Insert |
| 50a17 | 293150293 | Pop Rivet 3/16 X ,425 |
| 51 | 207687044 | Hex. Flange Screw M8 X 70 |
| 52 | 233281414 | Hex. Flange Elastic Nut M8 |
| 70 | 705211733 | Rear Bumper Anchorage |
| 71 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 72 | 233181414 | Hex. Flange Nut M8 |
| 73 | 250000745 | Hex Torx Truss M8 X30 |
| 100 | 715010531 | Trailer Hitch Kit |
| 101 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 102 | 233281414 | Hex. Flange Elastic Nut M8 |
| 110 | 705212320 | Deep Black, Rear Chassis Reinforcement |
| 111 | 207687044 | Hex. Flange Screw M8 X 70 |
| 112 | 233281414 | Hex. Flange Elastic Nut M8 |
| 113 | 207682044 | Hex. Flange Screw M8 X 20 |
| 114 | 233281414 | Hex. Flange Elastic Nut M8 |
| 120 | 715010793 | Liquid Titan, Rear Bumper Ass'y |
| 121 | 293450275 | Insert |
| 200 | 705208228 | Lever Support |
| 201 | 207664544 | Hex. Flange Screw M6 X 45 |
| 202 | 233261466 | Hex. Flange Elastic Nut M6 |
| 220 | 705209026 | Rear Suspension Arm Reinforcement |
| 230 | 705212296 | Front Upper Suspension Arm Reinforcement |
| 240 | 705211664 | Front Lower Suspension Arm Reinforcement |
| 500 | 705211736 | LH Machined Bumper Anchorage |
| 501 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 510 | 705211738 | RH Machined Bumper Anchorage |
| 2001 | 293450383 | Threaded Insert |
| 3000d | 250100104 | Elastic Flange Nut M20 |
| 4950a | 207582054 | Hex Screw Washer Head M8 X 20 |
| 4950b | 233181414 | Hex. Flange Nut M8 |
| 4950c | 250001296 | Hex. Flange Screw S.Grip M8 X 75 |
| 4950d | 233181414 | Hex. Flange Nut M8 |
| 4950f | 207582054 | Hex Screw Washer Head M8 X 20 |
