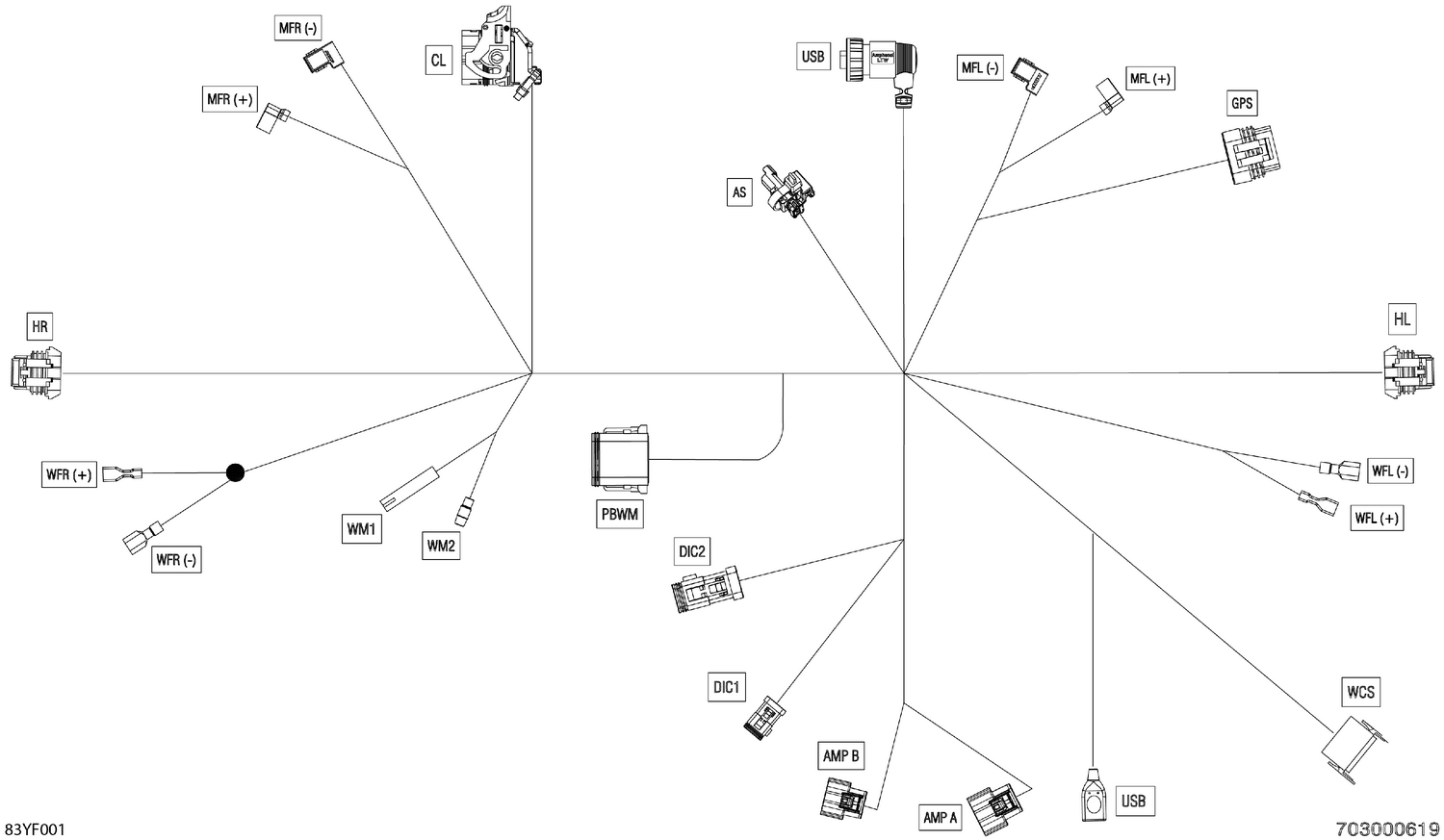

08- Electric - Console Wiring Harness - 710010816
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| AS | 515179328 | Terminal Jae |
| AS | 515179555 | Housing Jae, 2 Pins |
| AS | 710008941 | Plug |
| CL | 710001589 | Female Terminal |
| CL | 710001592 | Plug |
| CL | 710001593 | Plug |
| CL | 710001727 | Female Terminal |
| CL | 710001728 | Terminal |
| CL | 710007617 | Plug |
| CL | 710007619 | Seal Joint |
| CL | 710007620 | Seal Joint |
| CL | 710007623 | Femal Terminal |
| CL | 710007650 | Cover |
| CL | 710007658 | Femal Terminal |
| CL | 710008036 | Female Molex Connector 53 Cavities |
| DIC1 | 278004304 | Ctc Housing |
| DIC1 | 710009528 | Terminal |
| DIC1 | 710009529 | Terminal |
| DIC1 | 710009532 | Plug |
| DIC2 | 710009528 | Terminal |
| DIC2 | 710009529 | Terminal |
| DIC2 | 710009532 | Plug |
| DIC2 | 710010703 | Ctc Housing |
| GPS | 515175812 | Plug |
| GPS | 710001119 | Female Terminal |
| GPS | 710005295 | Female Housing |
| HL | 278001482 | Seal |
| HL | 710000642 | Lock |
| HL | 710000645 | Housing |
| HL | 710001134 | Female Terminal |
| HR | 278001482 | Seal |
| HR | 710000642 | Lock |
| HR | 710000645 | Housing |
| HR | 710001134 | Female Terminal |
| PBWM | 278000632 | Female Terminal |
| PBWM | 278001665 | Female Terminal |
| PBWM | 278002377 | Female Terminal Housing, 12 Circuits |
| PBWM | 409015700 | Female Lock, 12 Circuits |
| USB | 710009553 | USB Wiring Harness |
| WCS | 515179481 | Female Terminal |
| WM1 | 278001007 | Insulated Sheath |
| WM1 | 710000421 | Female Terminal |
| WM2 | 278001008 | Insulated Sheath |
| 50 | 710010816 | Console Wiring Harness |
